Williams Comfort Products JHW8-6122 Shallow Impact Socket

Product Description

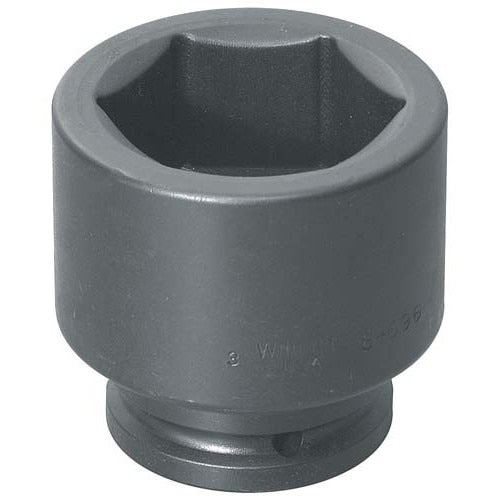

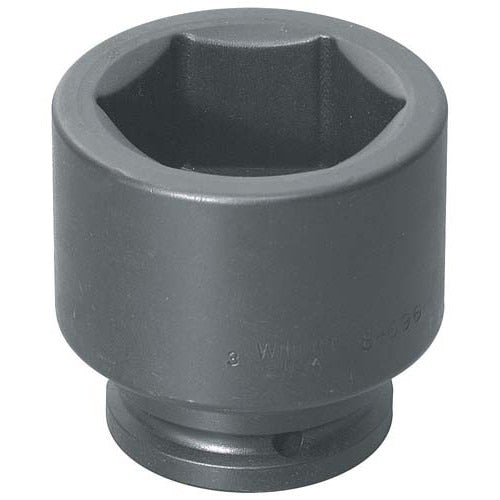

The WILLIAMS COMFORT PRODUCTS JHW8-6122 is a shallow impact socket built for heavy-duty fastener removal and installation in demanding trade environments. It features a 1-1/2 inch drive, a 3-13/16 inch opening, and an overall length of 5-3/16 inches. The socket uses lobular internal geometry to maximize turning power on 6-point fasteners while reducing the risk of rounding or deforming the fastener head. Heat-treated construction gives this socket the toughness needed for sustained use with pneumatic and electric impact wrenches. Mechanics, millwrights, and industrial service technicians are the primary users of this tool.

This socket is sized for large-fastener applications commonly encountered in industrial machinery maintenance, heavy equipment service, and structural assembly work. The SAE sizing and shallow profile make it well suited for applications where clearance is limited and a deep socket is not required. It is compatible with 1-1/2 inch drive impact wrenches running compressed air or electric power sources.

Key Features

• Lobular opening design delivers higher turning force without deforming 6-point fastener heads
• Shallow profile allows use in tight clearance applications
• 1-1/2 inch drive fits standard heavy-duty impact wrench anvils
• SAE sizing at 3-13/16 inches across the opening
• Specially heat treated for impact service, providing extended service life and safety
• Compatible with both pneumatic and electric impact wrenches

Compatibility

Designed as a heavy-duty SAE shallow impact socket for use with 1-1/2 inch drive pneumatic and electric impact wrenches in industrial and commercial service applications.

Installation Notes

Installation and removal should be performed by a qualified mechanic or industrial service technician. Always ensure the impact wrench is disconnected from the air supply or power source before changing sockets. Confirm the socket is fully seated on the drive anvil and retain pin or ring-and-pin retainer is engaged before applying torque. Do not use impact sockets with standard ratchets or torque wrenches.

Technical Specifications

• Drive Size: 1-1/2 inches
• Opening Size: 3-13/16 inches
• Overall Length (OAL): 5-3/16 inches
• Socket Type: Shallow Impact
• Drive Standard: SAE
• Point Count: 6 point
• Weight: 13.26 pounds
• Sold As: Each

Standard Information

• Brand: WILLIAMS COMFORT PRODUCTS
• Manufacturer Part Number: JHW8-6122
