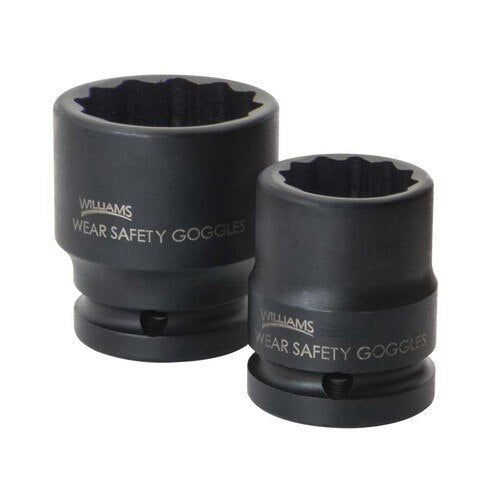

Williams Comfort Products JHW38430 Shallow Impact Socket

Product Description

The WILLIAMS COMFORT PRODUCTS JHW38430 is a shallow impact socket designed for high-torque fastener work in demanding trade environments. Built to a 15/16 inch fastener size with a 3/4 inch square drive, it measures 2 1/16 inches in overall length. The socket features SUPERTORQUE lobular openings engineered to apply turning force across a broader contact area, reducing the risk of fastener rounding under load. Specially heat treated for impact use, this socket is intended for use with pneumatic and electric impact wrenches by mechanics, pipefitters, millwrights, and industrial maintenance technicians who need reliable performance in repetitive or high-load applications.

This socket is suited for SAE fastener applications in industrial, mechanical, and heavy equipment service environments. The shallow profile makes it appropriate for fasteners in confined spaces where a deep socket would not seat properly. It is designed for maximum engagement on both 6-point and 12-point fasteners, supporting consistent performance across a range of standard SAE hex head bolts, nuts, and fittings encountered in mechanical and structural assembly work.

Key Features

• SUPERTORQUE lobular openings increase turning power while protecting fastener corners from deformation
• Compatible with both 6-point and 12-point fasteners for broad application coverage
• Shallow profile suits confined-space fastener access where deep sockets cannot fit
• Specially heat treated for impact service, providing extended service life and structural safety
• Rated for use with pneumatic and electric impact wrenches

Compatibility

Designed as an OEM-style impact socket for use with 3/4 inch drive pneumatic and electric impact wrenches accepting standard SAE shallow sockets.

Installation Notes

Installation is performed by qualified mechanics, millwrights, or maintenance technicians using a 3/4 inch drive impact wrench. Before beginning work, de-energize or depressurize any equipment being serviced per applicable safety procedures. Inspect the socket for cracks or deformation before each use and remove from service if damage is found. Do not use impact sockets with hand-drive ratchets, as impact-rated and hand-tool drive components are not interchangeable for safe use.

Technical Specifications

• Fastener Size: 15/16 inches
• Drive Size: 3/4 inches
• Overall Length (OAL): 2 1/16 inches
• Socket Type: Shallow Impact
• Drive Standard: SAE
• Weight: 0.59 pounds
• Sold As: Each

Standard Information

• Brand: WILLIAMS COMFORT PRODUCTS
• Manufacturer Part Number: JHW38430
