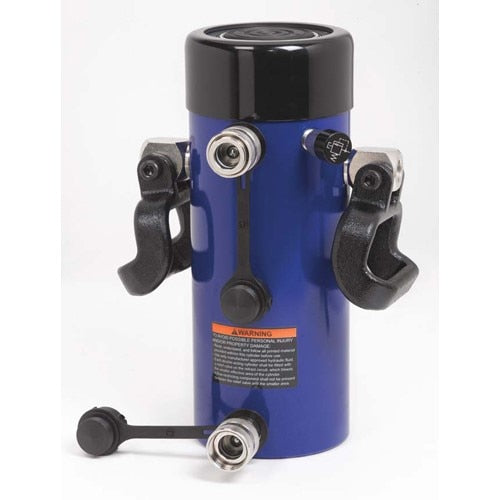

Williams Comfort Products 6CD10T12 Double-acting Cylinder

Product Description

The WILLIAMS COMFORT PRODUCTS 6CD10T12 is a 10-ton double-acting hydraulic cylinder with a 12-inch stroke, built for demanding industrial and trade applications. Double-acting cylinders use hydraulic pressure on both the extend and retract strokes, giving the operator positive control in both directions without relying on gravity or spring return. At 31.866 pounds, this is a substantial, heavy-duty unit suited for high-force positioning, pressing, lifting, and clamping tasks. It is typically installed or operated by millwrights, pipefitters, maintenance technicians, and hydraulic system specialists.

This cylinder is well-suited for industrial maintenance operations, fabrication shops, construction jobsites, and heavy mechanical service environments where controlled bidirectional force is required. The 10-ton capacity and 12-inch stroke make it appropriate for applications that demand both significant force output and meaningful travel distance in a single unit. It is sold individually and ships as a single unit per order.

Key Features

• Double-acting design provides hydraulic-powered extension and retraction for full bidirectional control
• 10-ton rated capacity for high-force industrial applications
• 12-inch stroke delivers substantial working travel distance
• Robust construction at 31.866 pounds supports heavy-duty service cycles
• Sold as an individual unit for precise procurement quantities

Compatibility

Designed as an OEM-style replacement or direct-fit addition for hydraulic systems requiring a double-acting cylinder with a 10-ton capacity and 12-inch stroke. Verify port thread type and bore dimensions against your hydraulic circuit specifications before installation.

Installation Notes

Installation should be performed by a qualified hydraulic technician or millwright familiar with high-pressure hydraulic systems. Depressurize and isolate the hydraulic circuit completely before connecting or disconnecting this cylinder. Use properly rated hydraulic hose and fittings that match the port specifications of this cylinder, and verify that the power unit output pressure does not exceed the cylinder's rated working pressure. Follow all applicable ASME and OSHA guidelines for hydraulic equipment handling and operation.

Technical Specifications

• Capacity: 10 tons
• Stroke: 12 inches
• Action Type: Double-Acting
• Weight: 31.866 pounds
• Unit of Measure: Each
• Minimum Order Quantity: 1
• UPC: 662459946041

Standard Information

• Brand: WILLIAMS COMFORT PRODUCTS
• Manufacturer Part Number: 6CD10T12
