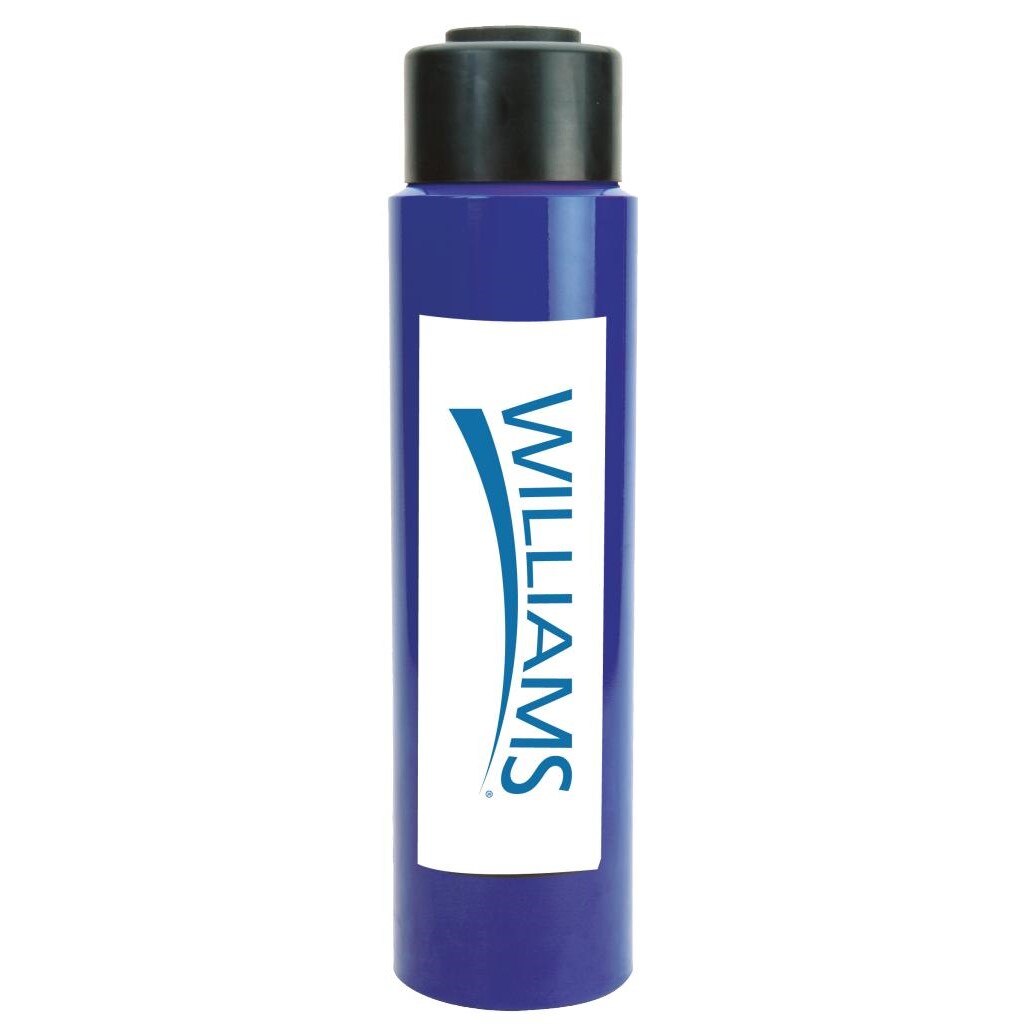

Williams Comfort Products 6C30T08 Single Acting Cylinder

Product Description

The WILLIAMS COMFORT PRODUCTS 6C30T08 is a 30-ton single acting cylinder designed for heavy-duty hydraulic pressing, lifting, and force applications. Single acting cylinders extend under hydraulic pressure and retract by gravity or spring return, making them a straightforward and reliable choice for high-load tasks. With an 8-inch stroke and a 30-ton capacity, this cylinder delivers significant clamping and pushing force in a compact form factor. It is suited for use in shops, job sites, and industrial service environments where controlled linear force is required.

This cylinder is intended for use in hydraulic ram setups, press frames, and similar force-application equipment. Typical applications include bearing and bushing removal and installation, straightening operations, and equipment maintenance tasks. It is commonly used by millwrights, industrial maintenance technicians, and heavy equipment service professionals. The unit ships as a single cylinder.

Key Features

• 30-ton rated capacity for heavy-duty hydraulic force applications
• Single acting operation — extends under pressure, retracts by gravity or spring
• 8-inch stroke length provides extended reach for pressing and lifting tasks
• Designed for use in hydraulic press frames and ram setups
• Sold as a single unit for direct replacement or new installations

Compatibility

Designed as an OEM-style replacement or direct-fit cylinder for 30-ton single acting hydraulic cylinder applications. Verify port thread size and saddle dimensions against your existing press frame or hydraulic circuit before installation.

Installation Notes

Installation should be performed by a qualified millwright or hydraulic systems technician familiar with high-pressure hydraulic circuits. Depressurize and bleed the hydraulic system completely before removing or installing any cylinder. Ensure all hydraulic fittings are rated for the system operating pressure and are free of contamination before connecting. Follow applicable industry safety standards for hydraulic equipment when placing this cylinder into service.

Technical Specifications

• Capacity: 30 tons
• Stroke: 8 inches
• Cylinder Action: Single Acting
• Weight: 42.487 pounds
• Unit of Measure: Each
• Minimum Order Quantity: 1
• UPC: 662459922915

Standard Information

• Brand: WILLIAMS COMFORT PRODUCTS
• Manufacturer Part Number: 6C30T08
