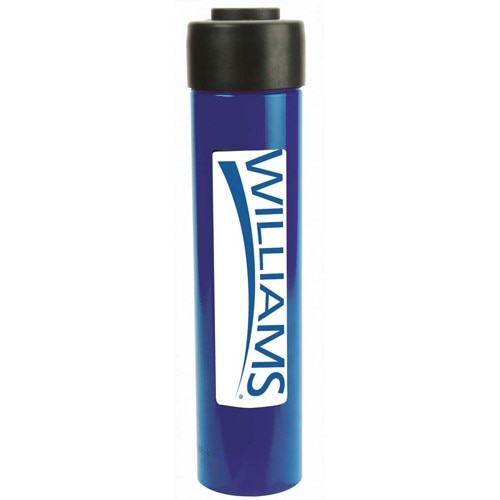

Williams Comfort Products 6C10T14 Single Acting Cylinder

Product Description

The WILLIAMS COMFORT PRODUCTS 6C10T14 is a 10-ton single acting hydraulic cylinder designed for heavy-duty pushing and pressing applications in mechanical and industrial service work. Single acting cylinders extend under hydraulic pressure and retract via an internal spring, making them straightforward to operate with a standard single-speed or air-driven hydraulic pump. At 16.614 pounds and a 14-inch body length, this cylinder is sized for applications where a compact footprint and significant tonnage capacity are both required. It is typically installed or deployed by millwrights, pipefitters, HVAC technicians, and mechanical contractors working on press-fit assemblies, bearing removal, structural alignment, or pipe bending tasks.

This cylinder is suited for both shop and field use where a portable 10-ton capacity pressing or lifting tool is needed. The 14-inch length provides reach for applications that require more stroke or clearance than a shorter-body cylinder can provide. It is commonly used in conjunction with hydraulic hand pumps, bottle jack setups, and press frames in residential, commercial, and light industrial maintenance environments.

Key Features

• 10-ton capacity single acting design extends under pressure, retracts via internal spring
• 14-inch body length provides extended reach for press-fit and alignment tasks
• Compact and portable at 16.614 pounds for field and shop deployment
• Compatible with standard hydraulic hand pumps and single-outlet power units
• Sold individually as a single unit

Compatibility

Designed as an OEM-style replacement or direct-use single acting hydraulic cylinder for 10-ton capacity hydraulic tool setups using standard hydraulic pump fittings.

Installation Notes

Hydraulic cylinders should be installed and operated by qualified mechanical or trades personnel familiar with hydraulic tool safety. Always confirm the load rating of the press frame or support structure exceeds the cylinder capacity before applying pressure. Inspect hydraulic fittings and hose connections for leaks before each use, and never exceed the rated tonnage of the cylinder. Follow applicable ANSI and OSHA safe practices for hydraulic tool operation.

Technical Specifications

• Capacity: 10 tons
• Body Length: 14 inches
• Weight: 16.614 pounds
• Action Type: Single Acting
• UPC: 662459922748

Standard Information

• Brand: WILLIAMS COMFORT PRODUCTS
• Manufacturer Part Number: 6C10T14
