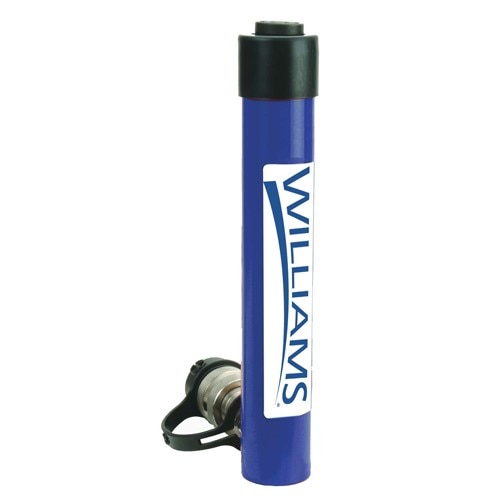

Williams Comfort Products 6C05T09 Single Acting Cylinder

Product Description

The WILLIAMS COMFORT PRODUCTS 6C05T09 is a 5-ton single acting hydraulic cylinder with a 9-inch stroke, designed for use in pressing, lifting, and force-application tasks common in HVAC, plumbing, and mechanical service work. Single acting cylinders extend under hydraulic pressure and retract via spring or gravity, making them straightforward to operate with standard hydraulic hand pumps or power units. At 5.706 pounds, this cylinder is compact enough for field use while delivering substantial force output. HVAC technicians, plumbers, pipefitters, and general mechanical contractors use this type of cylinder for tasks such as bearing presses, pipe bending, and equipment alignment.

The 6C05T09 is suited for light-to-medium force applications in residential and commercial service environments. A 9-inch stroke provides adequate travel for most pressing and lifting tasks encountered in the field. Its single acting design keeps hydraulic circuitry simple, requiring only a single hydraulic line from pump to cylinder, which reduces setup time on the job site. This cylinder ships as a single unit and is intended for use with a compatible hydraulic pump sold separately.

Key Features

• 5-ton force capacity for demanding pressing and lifting tasks
• 9-inch stroke length provides generous travel for field applications
• Single acting operation simplifies hydraulic circuit setup
• Lightweight at 5.706 pounds for portability in the field
• Sold individually for flexible tooling configurations

Compatibility

Designed as an OEM-style replacement or direct-use hydraulic cylinder compatible with standard single acting hydraulic pump systems requiring a 5-ton capacity cylinder.

Installation Notes

Installation and operation should be performed by qualified mechanical or HVAC service technicians familiar with hydraulic tooling. Always relieve hydraulic pressure completely before connecting or disconnecting the cylinder from the pump circuit. Do not exceed the rated 5-ton capacity, and ensure the cylinder is seated squarely against the work surface to prevent side loading. Inspect hydraulic fittings and hoses for leaks before applying full pressure.

Technical Specifications

• Force Capacity: 5 ton
• Stroke Length: 9 inches
• Weight: 5.706 pounds
• Cylinder Action: Single Acting
• UPC: 662459922649
• Sold As: Each

Standard Information

• Brand: WILLIAMS COMFORT PRODUCTS
• Manufacturer Part Number: 6C05T09
