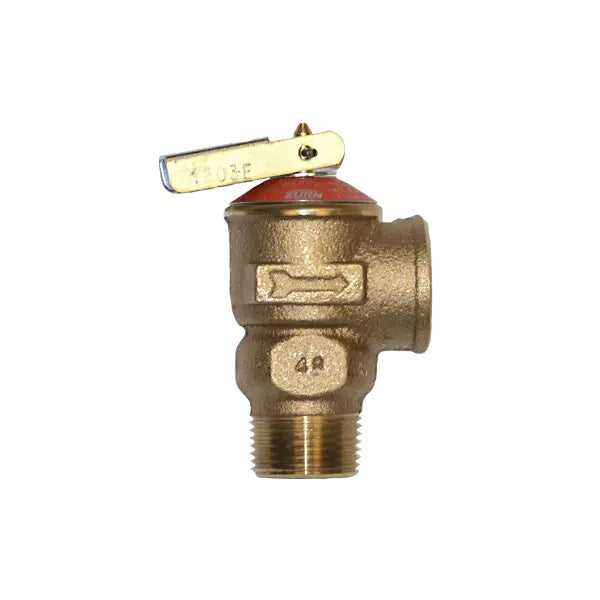

WILKINS P1000AXL-75C Pressure Relief Valve

Product Description

The WILKINS P1000AXL-75C is a reliable pressure relief valve meant for water heating storage vessels. This valve protects from excessive pressure and over-temperature scenarios. It is not designed for steam service. The body is made from cast brass or bronze, ensuring durability and longevity.

• Prevents over-pressure in storage tanks.
• Features an epoxy-coating for enhanced protection.
• Compliant with ASME Section IV and ANSI Z21.22/CSA 4.4 standards.

Product Highlights

This valve is designed to manage pressure effectively in water heating applications.

Product Information

Standard Information

• Application: Water heating storage vessels
• Valve Body Material: Cast brass or bronze

Technical Specifications

• Internal Components: 300 series stainless steel
• Spring Material: Stainless steel
• Probe Material: Epoxy-coated copper tube
• Pressure Relief Settings: 30, 75, 125, and 150 psi
• Compliance: ANSI Z21.22/CSA 4.4
• ASME Certification: Section IV by National Board
