Wilkins 4-ZW209 4 Pres Rdc Vlv 4 in (WZW209P)

Brand: WILKINS
SKU: 4-ZW209
Availability: In Stock

Ships via freight in 1-3 business days
$6,244.76
$6,244.76
LTL Delivery

This product weighs 160 lb each and will be shipped via LTL carrier. A lift gate option will be added free of charge for your convenience.

HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

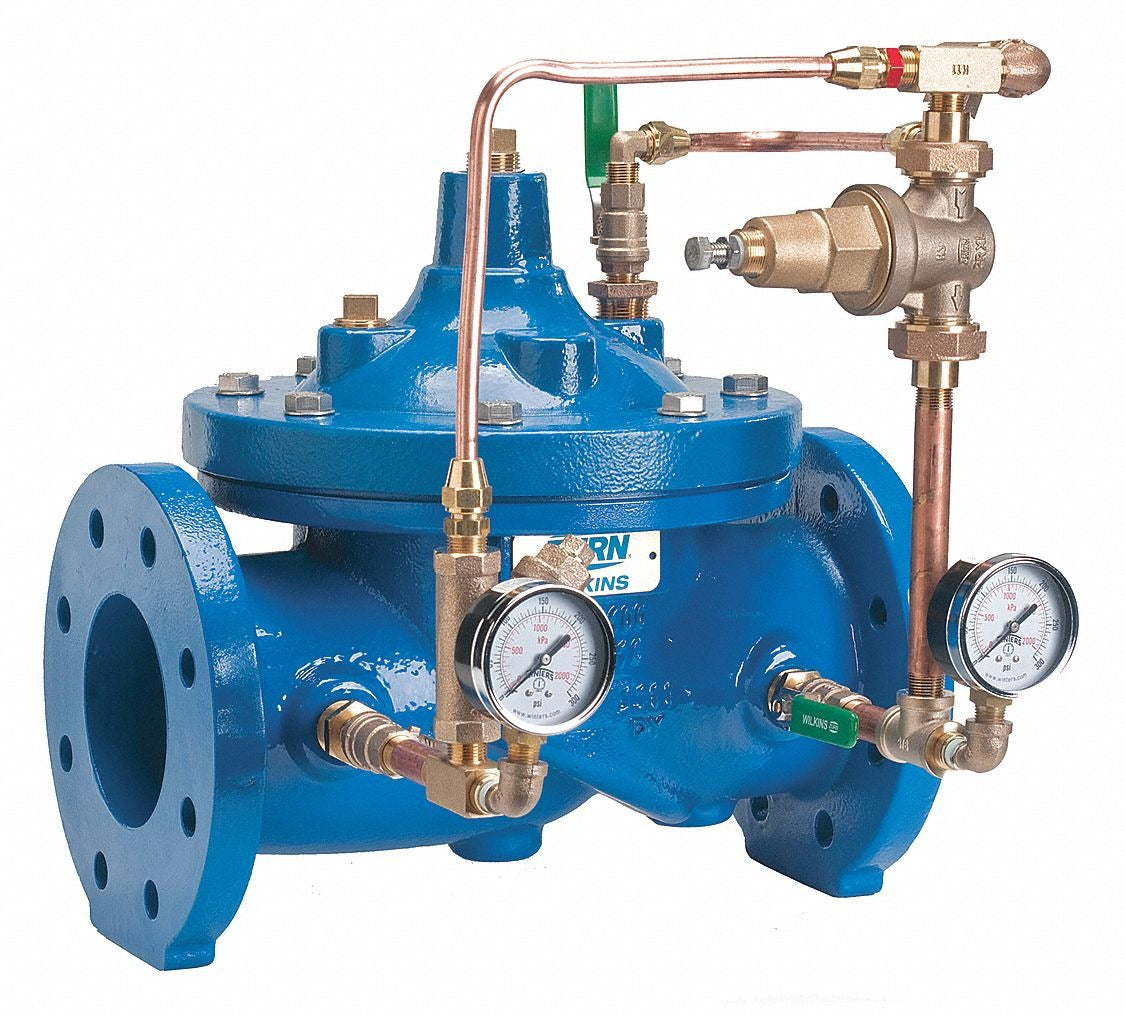

The Wilkins 4-ZW209 is a pilot-operated pressure reducing valve designed to hold a constant downstream pressure for water service while accommodating high flow rates. It uses a reactive pilot assembly to modulate the main valve, and features a ductile iron body with internal and external epoxy coating. Standard equipment includes inlet and outlet pressure gauges, a wye strainer, and isolation valves for maintenance.

  • Reactive pilot assembly maintains a constant downstream set pressure while modulating main valve position
  • Ductile iron body with internal and external epoxy coating; stainless steel trim and nylon reinforced Buna-N diaphragm
  • Includes inlet and outlet pressure gauges, wye strainer, and isolation valves; available flanged, grooved, or threaded end connections

Product Highlights

Pilot-operated pressure reducing valve for water service, 4 in nominal size, ductile iron body, NSF/ANSI 61 and AWWA C-530 compliant.

Product Information

Standard Information

  • Brand: WILKINS
  • Manufacturer Part Number: 4-ZW209
  • Country of Origin: Global
Technical Specifications
Brand
Wilkins
Manufacturer Part Number
4-ZW209
Model
ZW209
Type
Pilot operated pressure reducing valve
Valve Size
4 in
End Connections
150 class flanged (also available 300 class flanged, grooved, threaded)
End Connection 1
Flanged
End Connection 2
Flanged
Body Material
Ductile iron
Valve Body Style
Globe (globe, reduced port globe, and angle bodies available)
Port Design
Full port
Coating
Internal and external epoxy coating
Trim Material
Stainless steel (disc guide/seat/stem/spring); Buna-N rubber disc
Softgoods
Nylon reinforced Buna-N diaphragm
Pressure Class
150#
Pressure Adjustment Range
15 to 120 psi
Operating Pressure Range
15 to 150 psi
Maximum Fluid Temperature
140 F
Maximum Continuous Flow Rate
800 gpm
Maximum Intermittent Flow Rate
1000 gpm
Includes
Inlet and outlet pressure gauges, wye strainer, isolation valves
Standards / Certifications
ANSI/AWWA C530; Meets NSF/ANSI 61
Lead Law Compliance
Lead law compliant
NSF Certified
Yes
Recommended Valve Application
Water
Alternate Part Numbers
WZW209P / 4336353; WKZW209-4
Origin
USA (subject to change)
