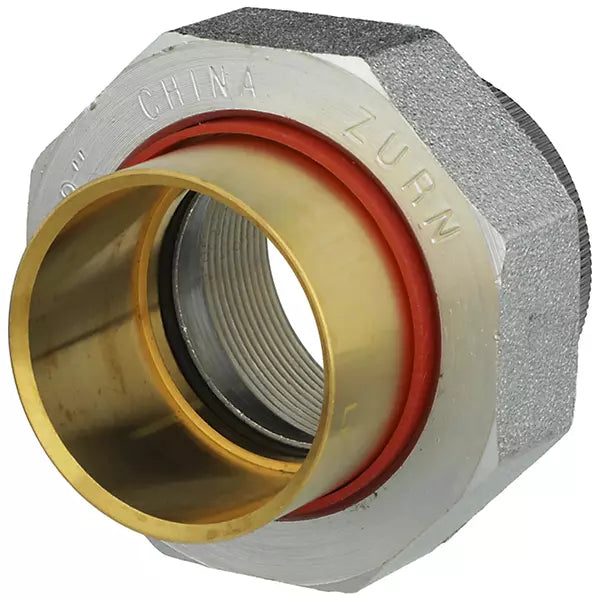

Wilkins 2-duxlc 2 inches dielectric union pipe fitting

Product Description

The WILKINS 2-DUXLC Dielectric Union Pipe Fitting is engineered for potable water systems, providing protection against piping deterioration caused by galvanic and stray current corrosion. This 2-inch fitting is crucial where dissimilar metals are present in piping. Constructed with a zinc-coated steel body, low lead brass tailpiece, and EPDM gaskets, it ensures system integrity. It supports a maximum working water pressure of 250 psi for threaded fittings and 175 psi for flanged fittings, with a maximum working water temperature of 180°F.

• Lead Free construction ensures suitability for potable water applications.
• Effectively couples dissimilar piping materials, simplifying installation and reducing costs.
• Offers high protection against piping deterioration from galvanic and stray current corrosion.

Product Highlights

Protects potable water piping systems from galvanic and stray current corrosion.

Product Information

Standard Information

• Brand: WILKINS
• Manufacturer Part Number: 2-DUXLC

Technical Specifications

• Maximum Working Pressure (Threaded): 250 psi
• Maximum Working Pressure (Flanged): 175 psi
• Maximum Working Temperature: 180°F
• Connection Type: Female Iron Pipe x Female Copper Sweat Joint
• Materials: Zinc-coated steel body, union nut, bolts, and nuts, cast steel flanges, low lead brass tailpiece, nylon insulator, EPDM gaskets
• Certifications: NSF/ANSI 372 by IAPMO R&T
