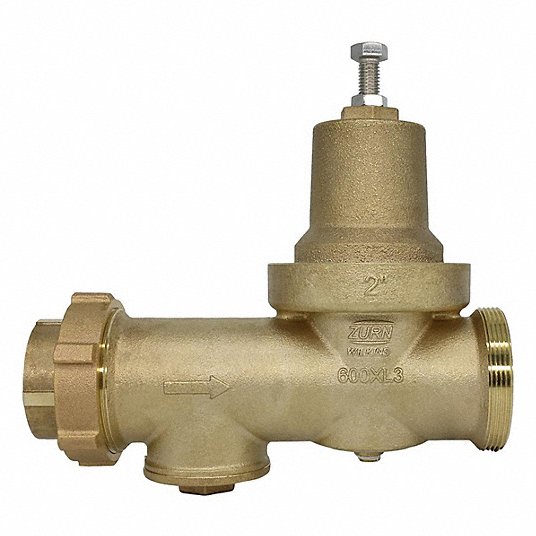

Wilkins 2-600XL3HR Pressure Reducing Valve FNPT x FNPT 2 in

Product Description

The WILKINS 2-600XL3HR pressure reducing valve controls incoming water pressure to set levels, protecting plumbing systems and reducing water consumption. This valve uses venturi technology to keep ideal water pressure at higher flow rates. The integral strainer provides easy accessibility for inline servicing. It is suitable for light commercial and residential applications.

• For use with potable water pipes with a 2 in. inner diameter
• High range, outlet adjust from 60 PSI to 125 PSI
• Meets the requirements of NSF/ANSI/CAN 61 and 372, and Safe Drinking Water Act compliant

Product Highlights

The Zurn Wilkins 600XL3 Pressure Reducing Valve is the best way to always have the water pressure you want.

Product Information

Standard Information

• Brand: WILKINS
• Manufacturer Part Number: 2-600XL3HR
• Country of Origin: USA

Technical Specifications

• Brand: WILKINS
• For Media: Water
• Application: Light Commercial Use; Residential Use
• Connections: FNPT x FNPT
• Inlet Connection Size: 2 Inches
• Outlet Connection Size: 2 Inches
• Body Material: Brass
• Pressure Adjustment Range: 60 psi to 125 psi
• Operating Pressure Range: 60 psi to 400 psi
• Max. Operating Temperature: 140 °F
• Factory Set Pressure: 50 psi
• Max. Continuous Flow Rate: 157 gpm
• Max. Intermittent Flow Rate: 209 gpm
• Port Design: Full Port
• Overall Width: 4-9/16 in
• Overall Height: 10 in
• Low-Lead Compliance: Low-Lead Compliant
• NSF Certifications for Food and Drinking Water: NSF 61; NSF 372
• Manufacturer Part Number: 2-600XL3HR
• Number of Ports: 2
• Valve Type: Pressure Relief Valve
• Specification Met: ANSI
