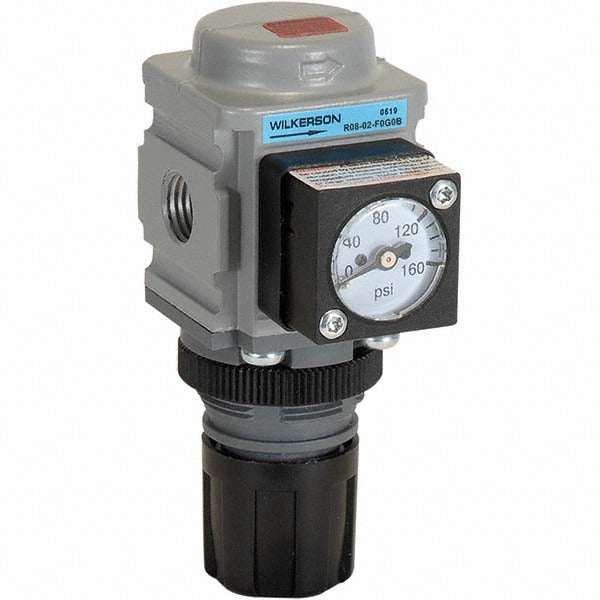

Wilkerson R08-02-F0G0B Air Regulator 1/4 Npt 300 Psi

Product Description

The WILKERSON R08-02-F0G0B is a miniature compressed air regulator designed to control downstream air pressure in pneumatic systems. Built from aluminum die cast, it handles a maximum supply pressure of 300 psi and delivers regulated output up to 125 psi, with a maximum air flow of 68 CFM. The unit includes an integrated relief function and a pressure gauge, making it a self-contained solution for pressure regulation tasks. It is installed by industrial maintenance technicians, pneumatic system specialists, and mechanical contractors working on compressed air distribution lines.

This regulator fits into modular pneumatic system assemblies and inline compressed air circuits where precise pressure control is required. The 1/4 inch NPT port size suits a wide range of standard pneumatic lines. The included gauge port uses a 1/8 inch thread. Its miniature Series 08 form factor makes it well suited for space-constrained installations in manufacturing, automation, and process control environments where compact inline regulators are required.

Key Features

• Miniature Series 08 form factor for installations with limited space
• Maximum supply pressure of 300 psi with output range of 0 to 125 psi
• Maximum air flow of 68 CFM for consistent downstream pressure delivery
• Integrated relief function prevents downstream overpressure
• Pressure gauge included with 1/8 inch gauge port thread
• Modular connection design supports integration into FRL and multi-unit assemblies
• Aluminum die cast construction for lightweight durability

Compatibility

Designed as an OEM-style replacement or direct-install miniature compressed air regulator for pneumatic systems using 1/4 inch NPT connections and operating within a 300 psi maximum supply pressure range.

Installation Notes

Installation should be performed by a qualified pneumatic or mechanical technician. Depressurize and lock out the air supply before removing or installing any regulator. Ensure all NPT threaded connections are sealed with appropriate thread sealant tape rated for compressed air service. Verify downstream components are rated for the regulated pressure range before placing the system back in service.
