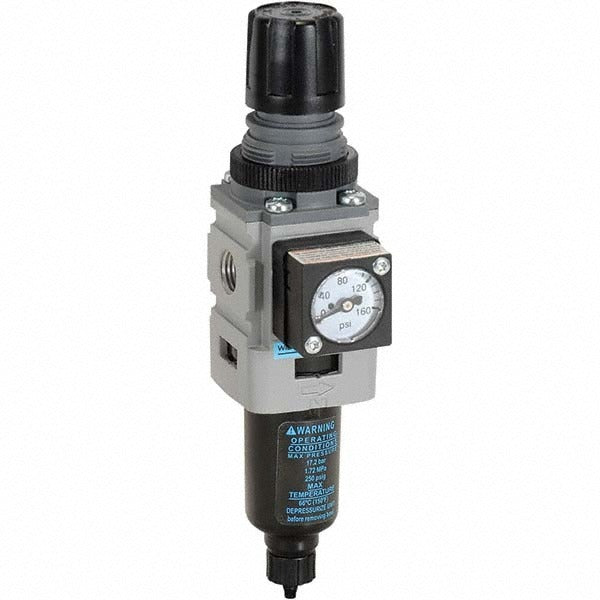

Wilkerson B08-02-FLG0B Frl Filter Regulator 1/4 Npt 73 Scfm

Product Description

The WILKERSON B08-02-FLG0B is a miniature 1-piece filter/regulator combination unit designed for compressed air service. It filters particulates down to 5 microns while regulating downstream pressure, delivering up to 73 SCFM through a 1/4 NPT port. The aluminum body and aluminum bowl keep weight low at 0.51 pounds, making it a practical choice for space-constrained pneumatic panels. A manual drain clears accumulated moisture and debris from the 0.4 oz bowl. A pressure gauge is included, and the modular connection design allows integration into multi-unit FRL assemblies. Pneumatic system technicians and industrial maintenance techs are the primary installers.

This filter/regulator is suited for light industrial and automation pneumatic systems where clean, regulated air supply is required at the point of use. The miniature Series 08 footprint fits compact manifold or inline installations. Operating temperature range runs from -13 degrees F to 150 degrees F, making it appropriate for most indoor shop and equipment-panel environments. The 1/4 NPT end connections are standard for small-bore pneumatic branch lines feeding cylinders, valves, and instrumentation.

Key Features

• 5-micron filtration removes particulates from compressed air supply
• 73 SCFM flow capacity through 1/4 NPT ports
• 250 psi maximum supply pressure rating
• Aluminum body and bowl construction for lightweight installation
• Integrated pressure gauge included for downstream monitoring
• Modular connection design supports multi-unit FRL assembly configurations
• Manual drain for scheduled bowl maintenance

Compatibility

Designed as an OEM-style miniature filter/regulator for compressed air pneumatic systems using 1/4 NPT connections, compatible with modular WILKERSON Series 08 FRL assemblies.

Installation Notes

Installation should be performed by a qualified pneumatic or industrial maintenance technician. Depressurize and lock out the compressed air supply completely before installing or servicing this unit. Mount the unit vertically with the bowl facing down to allow proper condensate collection and manual drain access. Follow applicable industry codes and equipment manufacturer guidelines for pressure rating and flow requirements of the downstream circuit.
