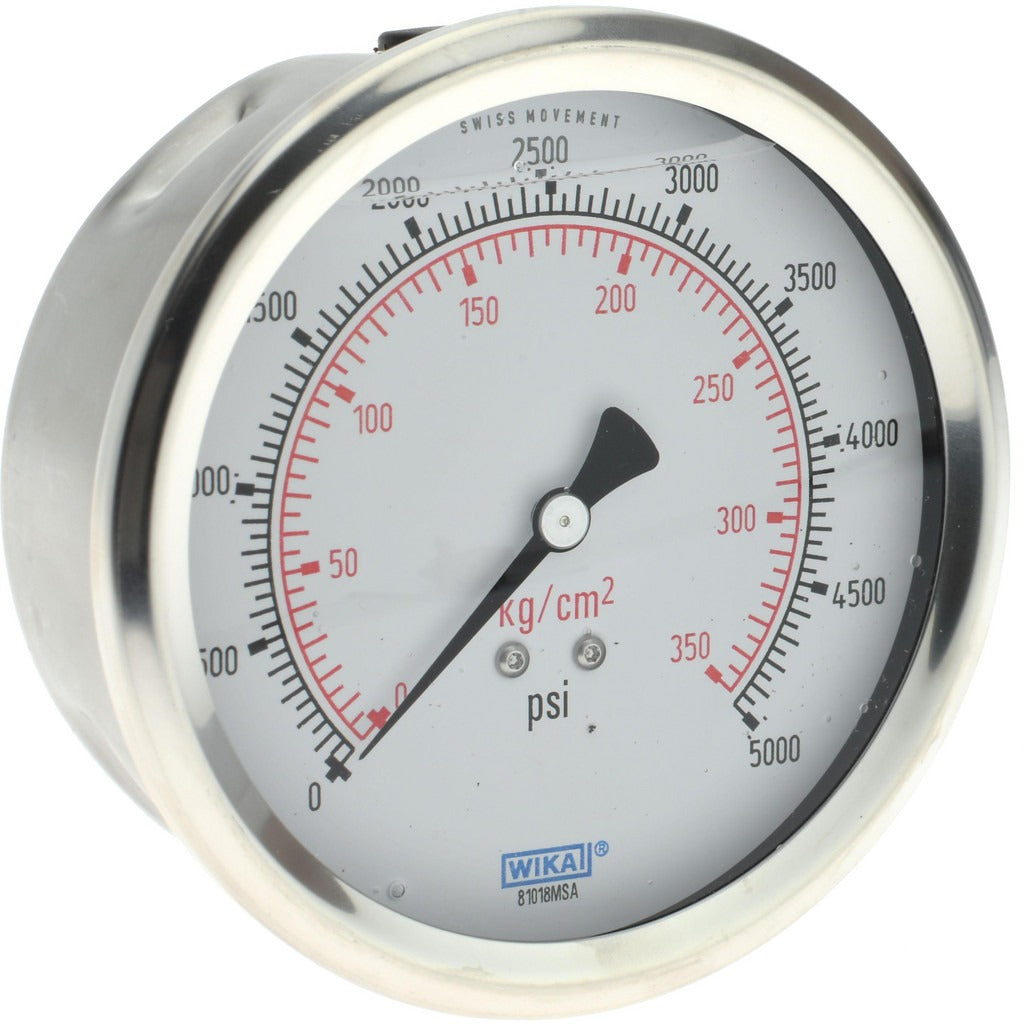

Wika 9694353 Pressure Gauge 0-5000 Psi 4 in Dial Npt

Product Description

The WIKA 9694353 is a liquid-filled industrial pressure gauge designed for monitoring gaseous and liquid media in demanding service environments. It features a 4-inch analog dial with a single scale reading from 0 to 5000 psi and delivers 1% of scale accuracy. The 304 stainless steel case provides corrosion resistance, while the liquid fill dampens pointer vibration and reduces wear on internal components. Copper alloy wetted parts handle a broad range of compatible media. A 1/4-inch NPT lower mount connection allows direct pipe or manifold installation. Licensed technicians and industrial service professionals are the typical installers for this gauge type.

This gauge suits residential and commercial applications where accurate pressure monitoring of gas or liquid systems is required. The lower mount configuration positions the connection at the six-o-clock position, making it well suited for upright panel or pipe installations. The polycarbonate lens resists impact and provides a clear view of the dial under field conditions. Its liquid-filled construction is especially useful in high-vibration environments such as compressor skids, pump stations, and hydraulic test setups.

Key Features

• Pressure range: 0 to 5000 psi on a single analog scale
• 1% of scale accuracy for reliable field readings
• Liquid-filled case dampens vibration and protects movement
• 304 stainless steel case for corrosion resistance
• Copper alloy wetted parts compatible with gaseous and liquid media
• Polycarbonate lens for impact resistance and dial clarity

Compatibility

Designed for use with gaseous and liquid media in industrial pressure monitoring applications requiring a 1/4-inch NPT lower mount connection and a 4-inch dial gauge reading to 5000 psi.

Installation Notes

Installation should be performed by a qualified technician familiar with pressure instrumentation and applicable local codes. Isolate and depressurize the system completely before removing or installing any pressure gauge. Apply an appropriate thread sealant to the NPT threads and tighten by hand before using a wrench to avoid cross-threading. Do not exceed the rated maximum pressure of the gauge.
