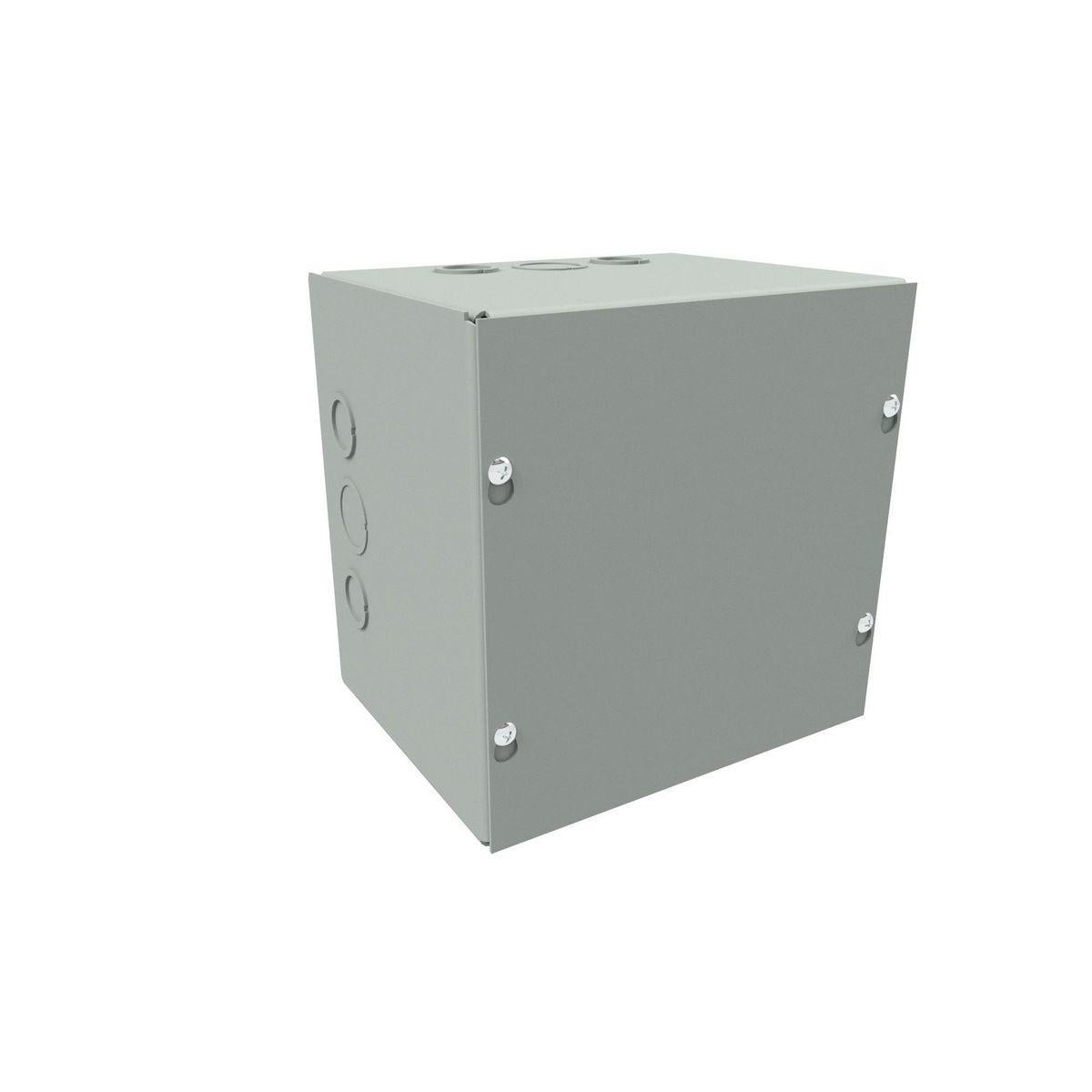

Wiegmann SC081206 N1 Screw Cover 8x12x6

Product Description

The WIEGMANN SC081206 N1 Screw Cover is designed for use as a junction box and pull box in commercial and general industrial applications. It features knockouts for cable entry and embossed mounting holes. Flush covers must be ordered separately for flush mount applications. The enclosure has spot welded construction.

• Designed for use as a junction box and pull box
• Suitable for commercial and general industrial applications
• Screw cover type

Product Highlights

N1 screw cover with knockouts and embossed mounting holes, ideal for industrial and commercial applications.

Product Information

Standard Information

• Brand: WIEGMANN
• Manufacturer Part Number: SC081206
• Country of Origin: United States

Technical Specifications

• Type: Enclosure
• Color: Ansi-61 Gray Textured
• Depth: 6 in
• Width: 8 in
• Finish: Textured
• Height: 12 in
• Listings: UL, CSA
• Material: Carbon Steel
• Mounting: Embossed Mounting Holes
• Standard: cULus
• Knockouts: Yes
• UL Listed: Yes
• Cover Type: Screw Cover
• Nema Rating: 1
• Actual Width: 8.125 in
• Construction: Spot Welded
• Actual Height: 12.25 in
• Cubic Capacity: 576 cu.in
• Certified Listed: cULus
• Cable Entry Size: 1/2 to 1-1/4 in
• Capacity: 576 cu-in
• Series: SC Series
• Manufacturer Name: Hubbell
• UNSPSC: 39121324
• UPC: 00786725313402
• Standards: California Proposition 65
