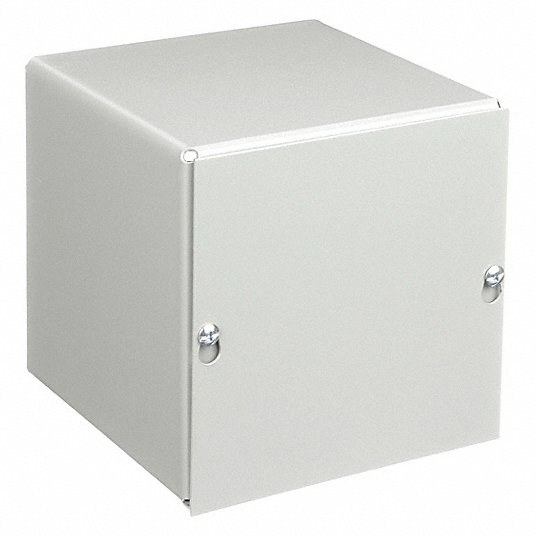

WIEGMANN SC060606NK Enclosure 6 x 6 x 6 in Junction Box Pull Box

Product Description

The Wiegmann SC060606NK is a carbon steel enclosure designed for use as a junction box and pull box in commercial and industrial settings. This enclosure is built with sixteen gauge steel, ensuring durability and longevity. It features a secure screw-on cover that maintains the safety of the contents housed inside. The enclosure is finished with ANSI 61 powder coating for added protection against the elements.

• Steel indoor enclosure
• Screw-on cover for security
• Ideal for junction and pull box applications

Product Highlights

This enclosure is versatile, making it suitable for various industrial applications. It comes with self-tapping screws and has mounting holes located on the back for easy installation.

Product Information

Standard Information

• Brand: Wiegmann
• Manufacturer Part Number: SC060606NK

Technical Specifications

• Knockouts: Not Included
• Body Material Thickness: 16 ga
• Closure Method: Screws
• Color: Gray
• Cover Closure Type: Screw On
• Cover Style: Solid
• Enclosure Material: Steel
• Environment: Indoor
• Finish: ANSI 61 Powder Coated
• Includes: Self-Tapping Screws
• Mounting Type: Wall
• NEMA Enclosure Rating: 1
• Nominal Depth: 6 in
• Nominal Height: 6 in
• Nominal Width: 6 in
• Overall Depth: 6 in
• Overall Height: 8 in
• Overall Width: 6 in
• Product Type: Screw Cover Enclosure
• Standards: CSA Certified; cULus; UL Listed
• Usable Opening Depth: 5.88 in
• Application: Junction box and pull box in commercial and industrial applications; flush covers ordered separately.
• EU RoHS Indicator: Yes
• Finish Type: Textured
• Listings: UL, CSA
• Material: Carbon Steel
• Actual Height: 6.125 in
• Actual Width: 6.125 in
• Depth: 6 in
• Weight: 4.2 lb
