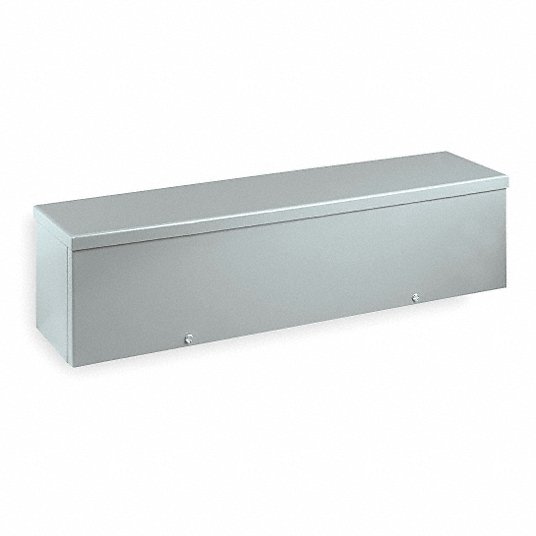

The WIEGMANN RSCG060672 N3R Gutter is designed to protect wiring in outdoor installations against rain, sleet, and snow, and indoors against dripping water. The trough and cover are fabricated from 16 gauge carbon steel, featuring a drip shield top and smooth seamless sides. Embossed mounting holes are conveniently located on the back, and knockouts are provided on the bottom.
Protects wiring in outdoor and indoor environments
Constructed from 16 gauge carbon steel
Features knockouts on the bottom of the enclosure
Product Highlights
Provides reliable protection for wiring in various environments with durable construction and convenient features.
Product Information
Standard Information
Brand: WIEGMANN
Manufacturer Part Number: RSCG060672
Country of Origin: United States
Technical Specifications
Application
Designed to protect wiring in outdoor installations against rain, sleet and snow, or indoors against dripping water.
Catalog Number
RSCG060672
Color
Ansi-61 Gray Smooth
Construction
Spot and Tack Welded
EU RoHS Indicator
Yes
Finish Type
Polyester Powder
Knockouts
Yes
Listings
UL, CSA
Material
Aluminized Steel
Mounting Type
Embossed Mounting Holes
Type
Gutter
UPC
786725408757
Actual Depth
72.13 in
Actual Height
6.06 in
Actual Width
6.06 in
Cubic Capacity
2592 cu.in
Depth
72 in
Height
6 in
Width
6 in
Cable Entry
Knock Outs
Buy America(n) Qualified
Contact Manufacturer
Certified Listed
cULus
Nema Rating
3R
Product Series
RSCG
Family Series
Wiegmann Enclosures, RSCG Series
Description
N3R Gutter 6X6X72 Carbon Steel - Gray
Composition
Metallic
Number of Doors
1
Cover Design
Lift-Off Cover
Window/Clear Cover
No
Latching Mechanism
Screws
Panel Included
No
Nominal Height
6 "
Nominal Width
6 "
Nominal Depth
72 "
Approvals
CSA, UL
Comments
Wiring Trough - No Inner Panel Available
Finish
Gray Powder-Coated Steel
Knockout Size
1/2 to 1-1/2 in
Length
72.13 in
Series
RSCG
Suitable For
Exterior
Control Style
Wiring Trough
Number of Knockouts
0
Item Height
6 in
Number in Pack
1
Box Shape
Rectangular
Item Width
6 in
Number of Gangs
0
Mounting Style
Bolt-On
Operating Temperature
55 °C (131 °F)
Body Material Thickness
16 ga
Closure Method
Screws
Cover Closure Type
Screw On
Cover Material Thickness
16 ga
Enclosure Material
Steel
ANSI 61 Polyester Powder
ANSI 61 Polyester Powder
Includes
Screws
Includes Knockouts
Knockouts Included
Wall Mounting
Wall
NEMA Enclosure Rating
3R
Overall Depth
6 in
Overall Height
6 in
Overall Width
72 in
Product Type
Wiring Trough Enclosure
Standards
CSA Certified; cULus; EU RoHS Indicator; UL Listed
