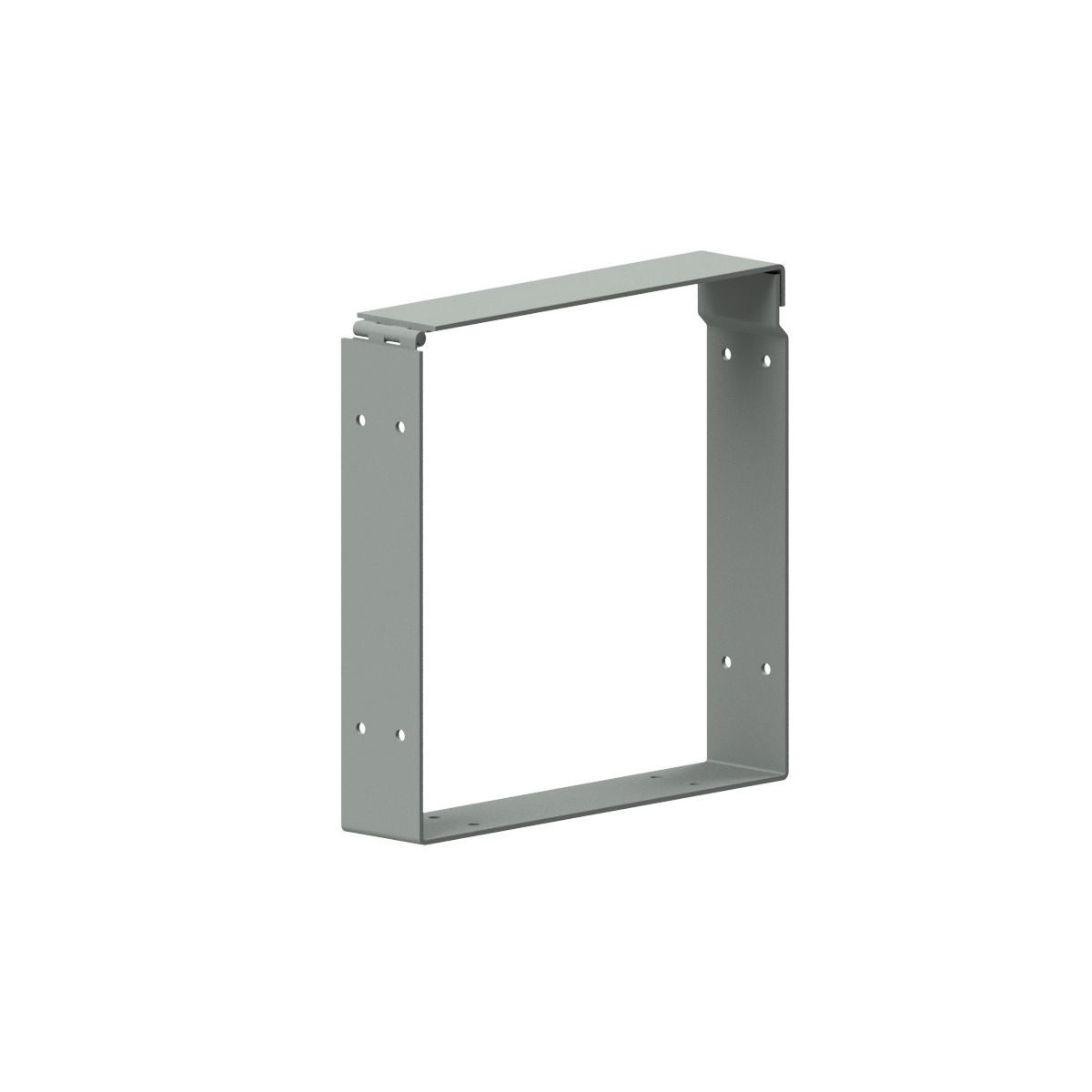

Wiegmann C1010 Wireway Connector 10x10 Hs S Series

Product Description

The WIEGMANN C1010 is a wireway connector designed to join sections of HS and S Series wireways in electrical distribution and wire management systems. Built from carbon steel with a gray polyester powder-coated and textured finish, this connector provides a durable, corrosion-resistant junction point for routing conductors in commercial and industrial enclosure applications. Measuring 10 inches in length, 10 inches in width, and 2.5 inches in depth, it matches the 10 x 10 inch wireway profile it is designed to serve. Licensed electricians and electrical contractors typically specify and install this hardware.

This connector is intended for use with HS and S Series 10 x 10 inch wireways, making it a standard component in panel and enclosure wiring layouts. These wireways are commonly found in commercial electrical rooms, machine control panels, and light industrial distribution systems where organized conductor routing is required. The carbon steel construction and powder coat finish make it suitable for indoor dry and protected indoor wet locations when installed per applicable code requirements.

Key Features

• Fits HS and S Series 10 x 10 inch wireways for a matched, flush connection
• Carbon steel construction provides structural rigidity and long service life
• Gray polyester powder-coated and textured finish resists corrosion and abrasion
• Compact 2.5-inch depth minimizes space impact at junction points
• Consistent finish matches standard WIEGMANN enclosure and wireway hardware

Compatibility

Designed for use with WIEGMANN HS and S Series wireways in the 10 x 10 inch profile.

Installation Notes

Installation should be performed by a licensed electrician in accordance with applicable NEC requirements for wireway systems. De-energize all circuits and verify absence of voltage before opening or connecting wireway sections. Secure all hardware fasteners fully before pulling conductors to prevent movement during wire management. Confirm the installed location is appropriate for the environmental rating of the wireway assembly.

Technical Specifications

• Material: Carbon Steel
• Finish: Gray Polyester Powder Coated and Textured
• Length: 10 inches
• Width: 10 inches
• Depth: 2.5 inches

Standard Information

• Brand: WIEGMANN
• Manufacturer Part Number: C1010
