Wiegmann B242007CH Enclosure 24 in x 20 in x 7 in

Product Description

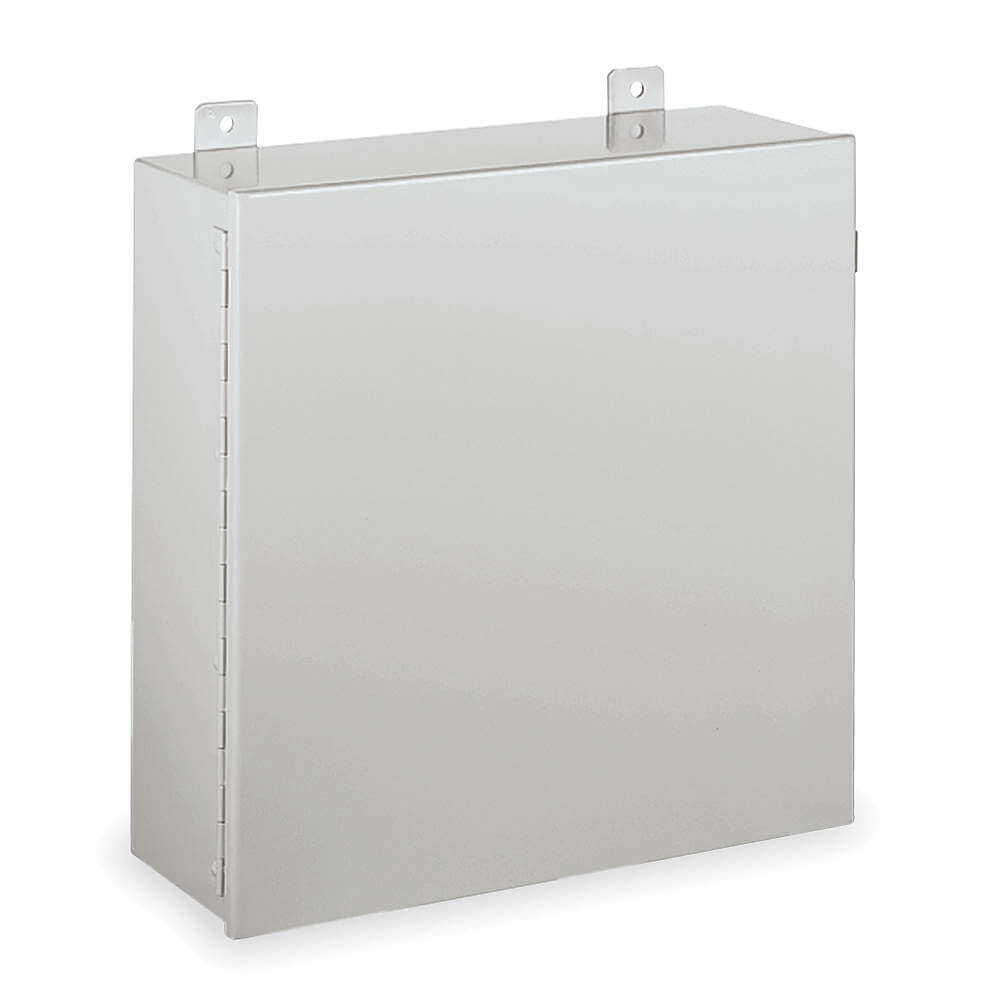

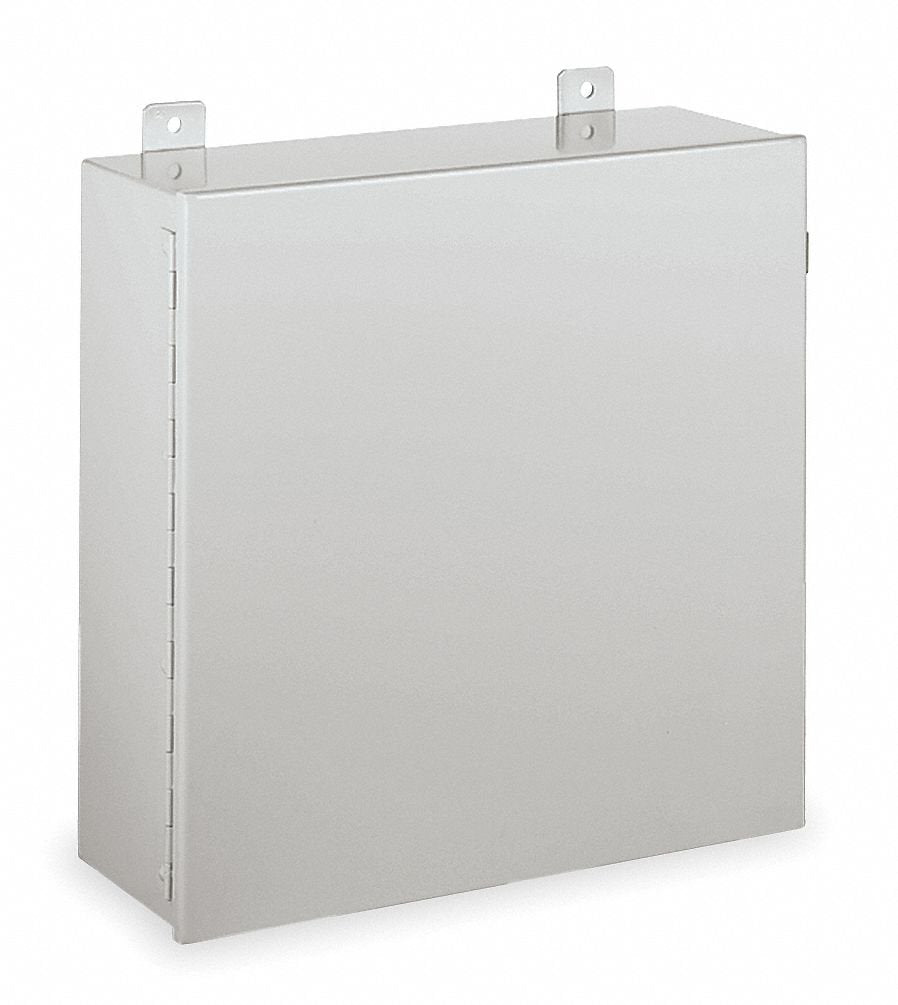

The WIEGMANN B242007CH enclosure is oiltight and designed to house electrical controls, terminals, and instruments. This carbon steel enclosure measures 24 in x 20 in x 7 in and features a continuous hinged cover. It provides NEMA 12/13 protection from dirt, dust, oil, and water, making it suitable for various applications.

• Constructed from 14 ga carbon steel
• Features a continuously hinged door removable by pulling the hinge pin
• Finished with ANSI-61 gray polyester powder coating inside and out

Product Highlights

Provides NEMA 12/13 protection. Features external mounting feet and a seamless polyurethane poured-in-place gasket.

Product Information

Standard Information

• Brand: WIEGMANN
• Manufacturer Part Number: B242007CH
• Country of Origin: United States

Technical Specifications

• Type: Oiltight
• Color: Gray
• Depth: 7 in
• Width: 20 in
• Finish: Polyester Powder Coated
• Height: 24 in
• Series: B-CH
• Capacity: 3360 cu-in
• Cover Type: Continuous Hinged
• NEMA Rating: NEMA 12/13
• Manufacturer: Hubbell
• Mounting Type: Wall
• Enclosure Material: Carbon Steel
• Closure Method: Screwdown Clamps
• Enclosure Cover Features: Screwdown Clamps
• Metal Gauge: 14 ga
• Standards: cULus
• Usable Opening Depth: 6.88 in
• Material: Carbon Steel
• Mounting: Wall-Mount
• Gasket: Polyurethane
• Basic Material: Metallic
• Knockouts / No Knockouts: No Knockouts
• Application: Intended for use as electrical junction boxes, terminal wiring boxes, and instrument housings. Hinged door provides convenient access. Designed to provide protection from dust, dirt, oil, and water.
• Cubic Capacity: 3360 cu.in
• Listings: UL, CSA
