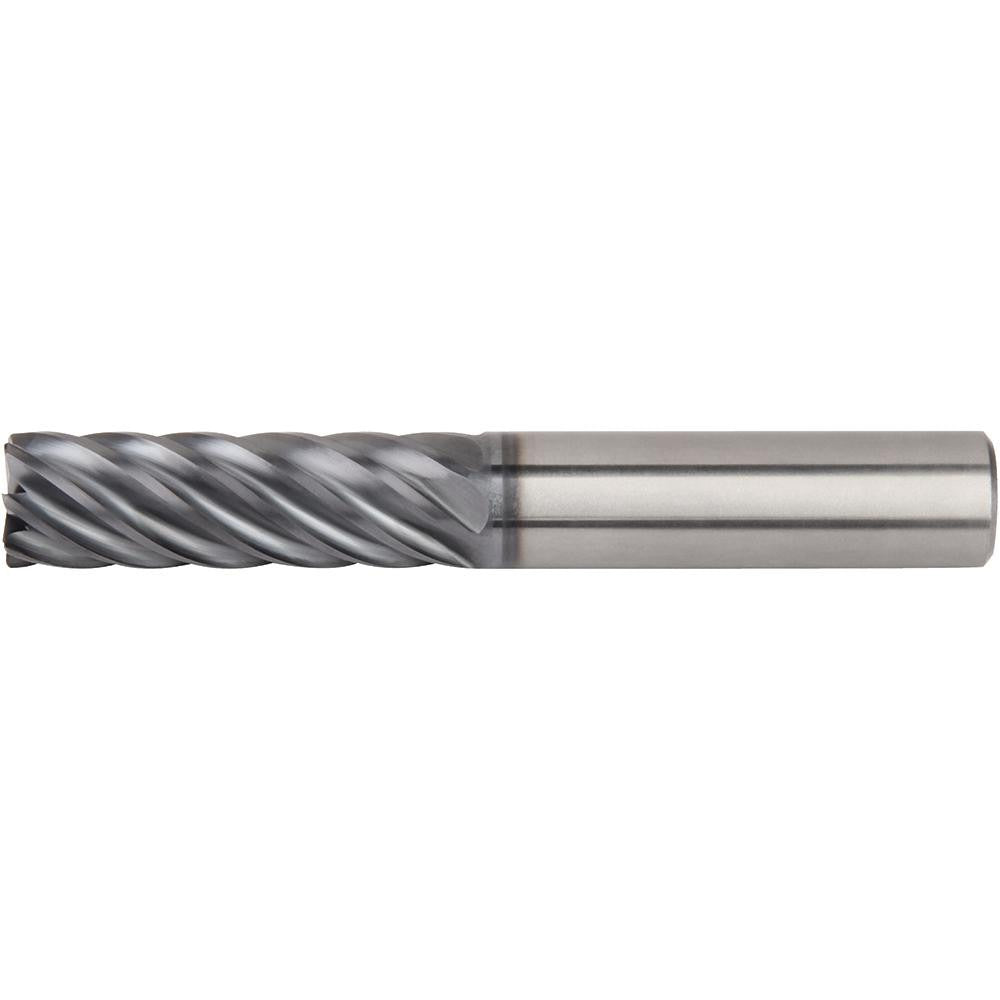

Widia 6566416 Corner Radius End Mill 3/4 in 7 Flute Carbide

Product Description

The WIDIA 6566416 is a solid carbide corner radius end mill designed for demanding material removal in steel, stainless steel, high-temperature alloys, and hard materials. Built on the 7V0E series platform, it features a 3/4-inch cutting diameter, 0.0300-inch corner radius, and seven flutes arranged in a close-pitch, variable-index configuration. The WS15PE PVD coating provides thermal resistance and edge durability suited for both roughing and finishing passes. This tool is single-end, centercutting, and runs right-hand cutting and flute direction. It is sized for use in standard toolholders compatible with 3/4-inch straight-cylindrical shanks.

This end mill is applied in CNC machining centers and manual mills where close-tolerance profiling, slotting, and contouring are required. The corner radius geometry reduces stress concentration at the cutting edge and extends tool life when working aerospace-grade high-temperature alloys or hardened steels. The medium helix angle and close pitch support chip evacuation in both light-finishing and heavier stock-removal operations on steel and stainless steel workpieces.

Key Features

• Solid carbide construction for rigidity and wear resistance in hard and abrasive materials
• 0.0300-inch corner radius reduces edge chipping and improves surface finish on profiled features
• Seven-flute, close-pitch design increases feed rate capability in steel and stainless steel
• Variable index flute spacing reduces harmonic vibration during high-speed cuts
• WS15PE PVD coating rated for high-temperature alloys, steel, stainless steel, and hard materials
• Centercutting geometry allows plunge entry without pre-drilling

Compatibility

Designed for use with standard toolholders accepting a 3/4-inch straight-cylindrical shank. Primary workpiece materials include high-temperature alloys. Secondary workpiece materials include steel, stainless steel, and hard materials.

Installation Notes

Installation and tool changes should be performed by a qualified machinist with the machine spindle fully stopped and energy isolated per lockout/tagout procedures. Verify toolholder runout and clamping torque per the toolholder manufacturer specification before operation. Inspect the cutting edges for chips or coating damage prior to each use. Do not exceed the tool manufacturer-recommended speeds and feeds for the workpiece material and depth of cut.
