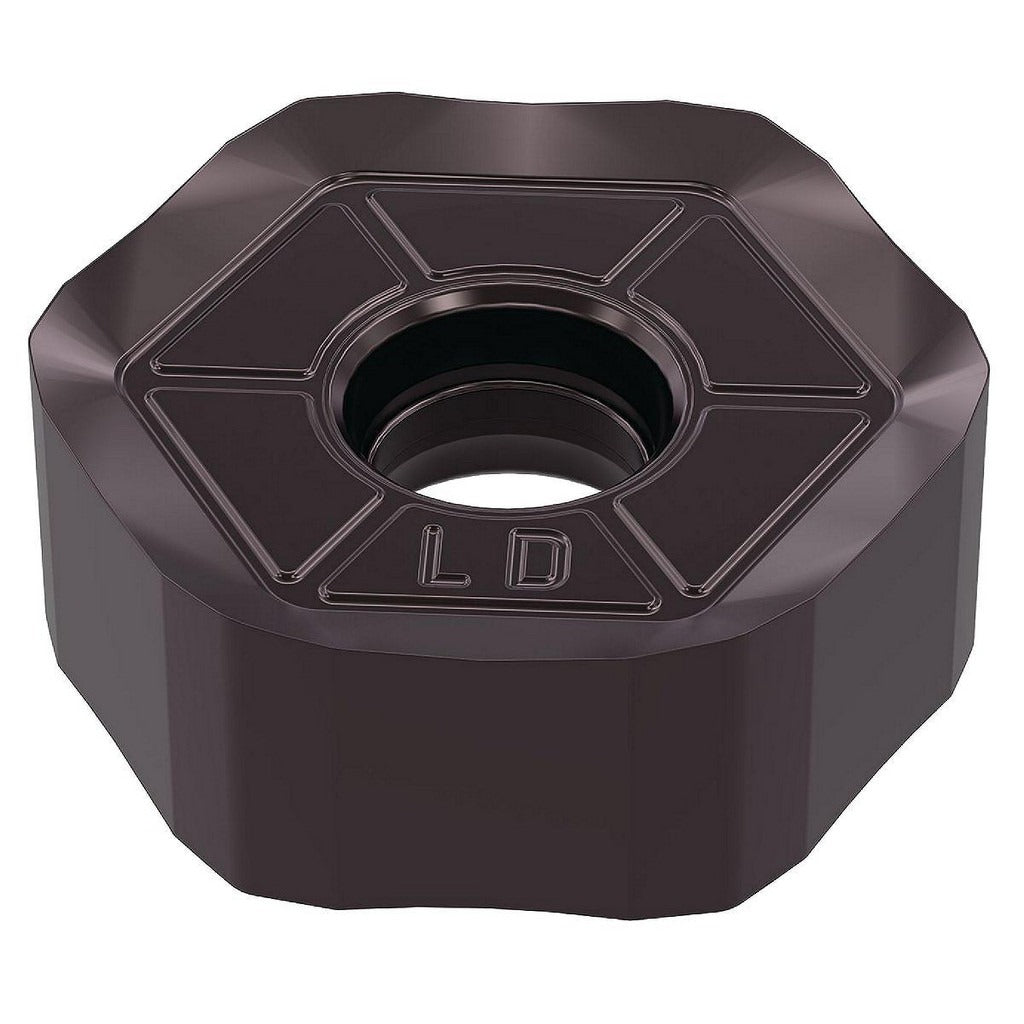

Widia 5895347 Milling Insert HNGJ0905ANENLD WP35CM Carbide

Product Description

The WIDIA 5895347 is a HNGJ0905ANENLD-style hexagonal carbide milling insert in manufacturer grade WP35CM, designed for face and shoulder milling operations in metalworking applications. The insert is double-sided with 12 usable cutting edges, delivering extended tool life per insert. It carries a multilayer CVD coating - TiN, TiCN, and Al2O3 - applied via MTCVD process, which provides thermal resistance and wear protection during steel and cast iron cutting. With a negative rake angle, honed cutting edge, and LD chip breaker geometry, this insert is suited for moderate to heavy milling passes where edge stability matters.

This insert is designed for primary use on steel and cast iron workpieces, with secondary suitability for stainless steel. It is compatible with WIDIA M1200 series milling cutter bodies. Typical applications include face milling, shoulder milling, and roughing passes on ferrous materials in production and job shop environments. Installation is performed by licensed machinists and toolroom technicians using screw-clamped toolholders. The insert is classified under ANSI code HNGJ535ANENLD and ISO code HNGJ0905ANENLD.

Key Features

• Double-sided hexagon insert with 12 cutting edges for maximum edge utilization
• Multilayer CVD coating: TiN, TiCN, and Al2O3 for wear and heat resistance
• WP35CM grade engineered for steel, cast iron, and stainless steel
• LD chip breaker geometry with negative rake for stable cutting action
• Screw-clamped insert holding method for secure, repeatable seating
• Compatible with WIDIA M1200 series cutter bodies

Compatibility

Designed for use with WIDIA M1200 series milling cutter bodies. ANSI code: HNGJ535ANENLD. ISO code: HNGJ0905ANENLD. Primary workpiece materials are steel and cast iron; secondary workpiece material is stainless steel.

Installation Notes

Installation is performed by a qualified machinist or toolroom technician. Power down and lock out the spindle before changing inserts. Seat the insert fully against the pocket locating surfaces before tightening the clamping screw to ensure proper edge presentation. Inspect the insert pocket for wear or damage each time the insert is indexed or replaced.
