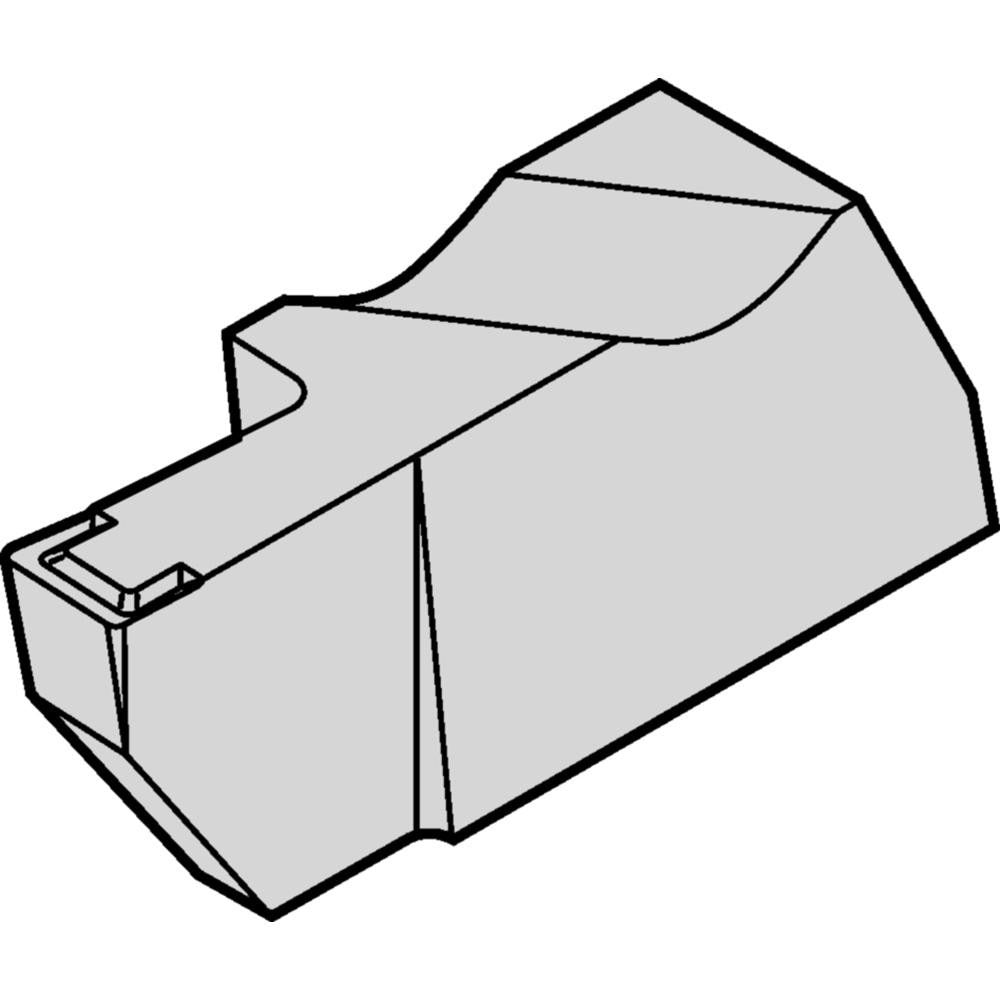

Widia 3607083 Ngd-k Grooving Insert 0.094in Rh Carbide

Product Description

The WIDIA 3607083 is a single-end, right-hand Top Notch grooving insert in the NGD-K series, designed for precision grooving and turning operations on CNC lathes and turning centers. Built from carbide with a PVD-applied TiAlN coating and WIDIA manufacturer grade TN6010, this insert delivers thermal and wear resistance across a range of workpiece materials. It carries a cutting width of 0.094 inches (2.390 mm), a maximum depth of cut of 0.250 inches (6.35 mm), and an overall length of 0.986 inches. The K chip breaker geometry and 10-degree positive rake angle support controlled chip formation and reduced cutting forces during grooving passes.

This insert is suited for grooving and turning applications in both production and job-shop environments on CNC turning equipment. Primary workpiece materials include stainless steel, cast iron, non-ferrous metals, super-alloys and titanium, and steel - covering ISO material codes P, K, M, N, and S. The clamp-style insert holding method requires a compatible Top Notch toolholder with an insert seat size of 3. It is appropriate for applications requiring tight groove width control at 2.39 mm with a corner radius of 0.0075 inches (0.19 mm).

Key Features

• Carbide substrate with PVD TiAlN coating for thermal stability and extended tool life
• Cutting width of 0.094 inches (2.390 mm) with a full-precision groove width of 2.39 mm
• Maximum depth of cut of 0.250 inches (6.35 mm) for moderate-depth grooving passes
• Positive 10-degree rake angle with K chip breaker for controlled chip evacuation
• Compatible with grooving and turning operations across five ISO workpiece material categories
• Single cutting edge, right-hand orientation, clamp-style insert retention

Compatibility

Designed for use with Top Notch grooving toolholders accepting insert seat size 3 and NGD-K series inserts. ANSI and ISO code NGD3094RK. For use in grooving and turning applications on CNC lathes.

Installation Notes

Installation should be performed by a qualified machinist or CNC tooling technician. Power down and lock out the machine spindle before seating or removing inserts. Ensure the toolholder clamp and insert seat are clean and free of chips before mounting. Verify correct insert orientation and hand designation before initiating a cut.
