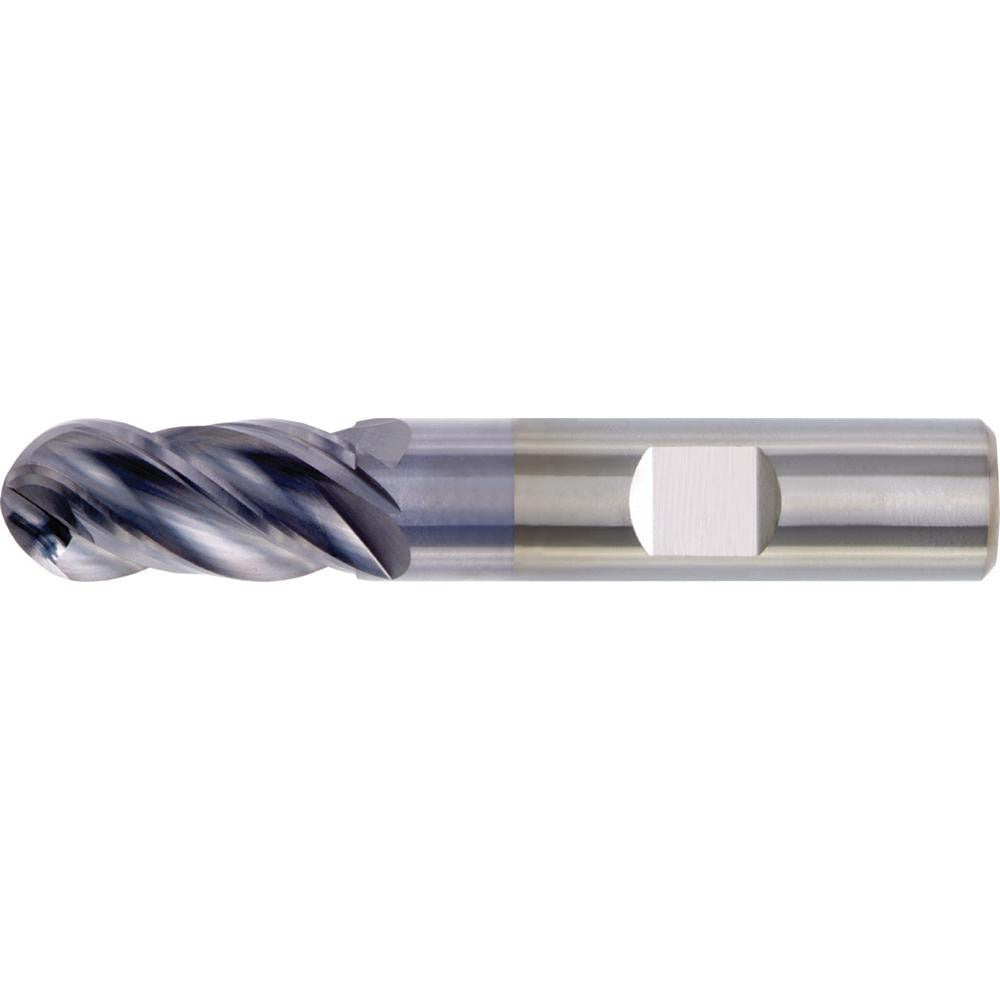

Widia 2837746 Ball End Mill 3/8 in 4 Flute Tialn Carbide

Product Description

The WIDIA 2837746 is a solid carbide ball end mill designed for high-performance metal removal in demanding machining applications. Carrying a TiAlN (PVD) coating under the 4V00 Series material grade TiAlN-LT, this tool delivers thermal resistance and wear life suited for both roughing and finishing passes. The 3/8-inch diameter, 4-flute geometry with a 38-degree medium helix and variable index design reduces chatter and promotes chip evacuation. At 2.5 inches overall length with a 7/8-inch length of cut, this single-end tool fits standard 3/8-inch straight-cylindrical shank toolholders used on CNC machining centers and manual mills.

This end mill is intended for use on steel, stainless steel, cast iron, superalloys, titanium, and hard materials (ISO material codes P, M, K, S, H). It is well suited for contour milling, 3D profiling, and finish work on hardened and difficult-to-machine workpieces in job shop, aerospace, die and mold, and general metalworking environments. The spiral flute design with variable index makes it appropriate for applications where vibration control and surface finish quality are priorities.

Key Features

• TiAlN PVD coating (material grade TiAlN-LT) for elevated-temperature wear resistance
• 4-flute, variable index geometry reduces harmonic vibration during cutting
• 38-degree medium helix promotes efficient chip evacuation on ductile and hard materials
• Solid carbide construction for rigidity and dimensional stability
• Rated for roughing and finishing operations on a broad range of metal workpiece materials
• Single-end design with straight-cylindrical shank for standard ER and side-lock toolholding

Compatibility

Designed as a direct-fit replacement or standard addition for 3/8-inch straight-cylindrical shank toolholders; compatible with workpiece materials classified under ISO codes P (steel), M (stainless steel), K (cast iron), S (superalloys and titanium), and H (hard materials) per WIDIA Series 4V00 specifications.

Installation Notes

Installation should be performed by a qualified machinist or CNC setup technician following the machine tool manufacturer's toolholding torque and runout specifications. Ensure the spindle and toolholder are clean and free of debris before seating the shank. Confirm proper tool projection and runout with a dial indicator before cutting. Follow applicable shop safety standards and machine guarding requirements during setup and operation.
