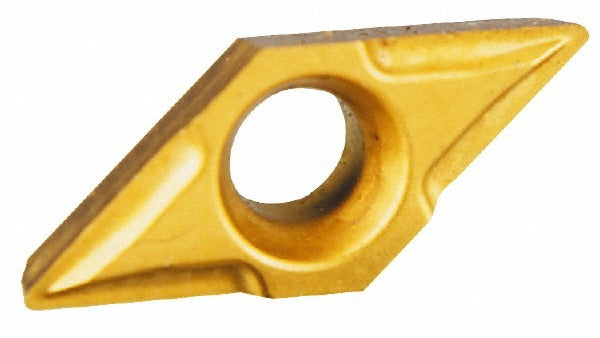

Widia 2827560 GPHT12105 CG5 Carbide Profiling Insert

Product Description

The WIDIA 2827560 is a GPHT-series carbide profiling insert designed for turning and profiling operations on a range of workpiece materials. Manufactured to the GPHT12105 standard, this insert carries a CG5 manufacturer grade and features a PVD-applied TiN coating for wear resistance. The parallelogram-shaped insert has a positive rake geometry with an 11-degree relief angle and a 45-degree included angle, producing two usable cutting edges per insert. It is installed by licensed machinists and toolroom technicians using clamp or pin holding methods on compatible indexable toolholders.

This insert is suited for profiling and turning applications on steel, stainless steel, cast iron, and non-ferrous metals, covering ISO material groups P, M, K, and N. The neutral hand orientation makes it adaptable to a range of setup configurations. With a corner radius of 0.0070 inches and a maximum depth of cut of 0.0757 inches, it is well-matched to finish and semi-finish profiling passes where contour accuracy and surface integrity are priorities.

Key Features

• GPHT-series parallelogram insert with positive rake geometry
• CG5 grade carbide with PVD TiN coating for extended tool life
• Two cutting edges per insert for improved economy
• Compatible with clamp and pin holding methods
• Neutral hand orientation for flexible toolholder setup
• Rated for steel, stainless steel, cast iron, and non-ferrous metal workpieces

Compatibility

Designed as an OEM-style replacement or direct-fit insert for indexable toolholders accepting GPHT12105 or ISO code GPHT050102 inserts in the GPHT series.

Installation Notes

Installation is performed by qualified machinists or toolroom technicians. Power down and de-energize all machine spindles before seating or indexing the insert. Use the appropriate clamp screw torque as specified by the toolholder manufacturer. Inspect the insert pocket and seating surfaces for chips or debris before installation to ensure proper seating and edge presentation.
