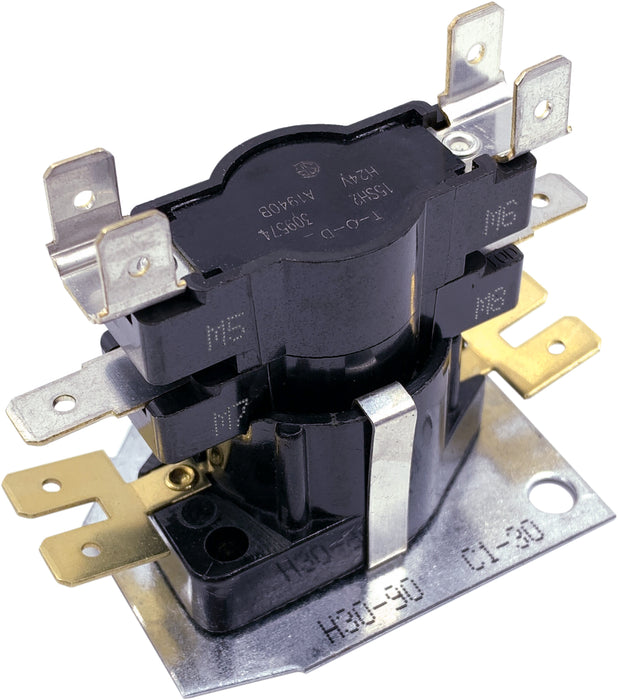

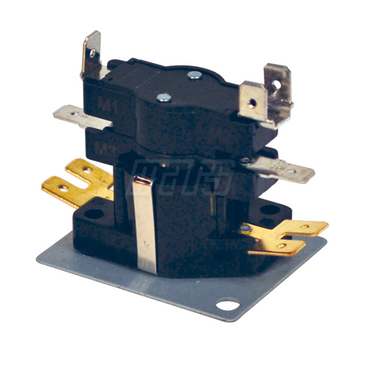

White-Rodgers WR-24A34-4 Electric Heat Sequencer

Product Description

The White-Rodgers WR-24A34-4 electric heat sequencer is designed for use in electric furnaces. It operates with a twenty-four volt input control and allows for multi-poise mounting. This sequencer serves as a direct replacement for most fan and heat sequencing applications. Additionally, it is compatible with brands such as Honeywell, MARS, TOD, GEMLINE, and Klixon. The unit includes double quick-connect terminals to accommodate combination loads.

• Direct replacement for most fan/heat sequencing functions.
• Double quick-connect terminals support combination loads.
• Operates in ambient temperature from negative fifty to positive one hundred sixty-five degrees Fahrenheit.

Product Highlights

The sequencer is versatile and suitable for various heating applications.

Product Information

Standard Information

• Timings: 1
• Switch Description: 2

Technical Specifications

• Timings-On in Seconds: 30 to 90, Switch M7-M8
• Timings-Off in Seconds: 1 to 30, Switch M7-M8
• Amperage: 14.0 FLA, 72.0 LRA at 120 Vac; 7.0 FLA, 42.0 LRA at 240 Vac; 12.5 at 480 Vac
• VA Output: 120-240 Vac 125 VA, 480 Vac 480 VA
• Operating Temperature Range: -50 to +165 degrees Fahrenheit
• Approvals: U.L. component recognized
• Type: (1) DPST
• Number of Switches: 2
