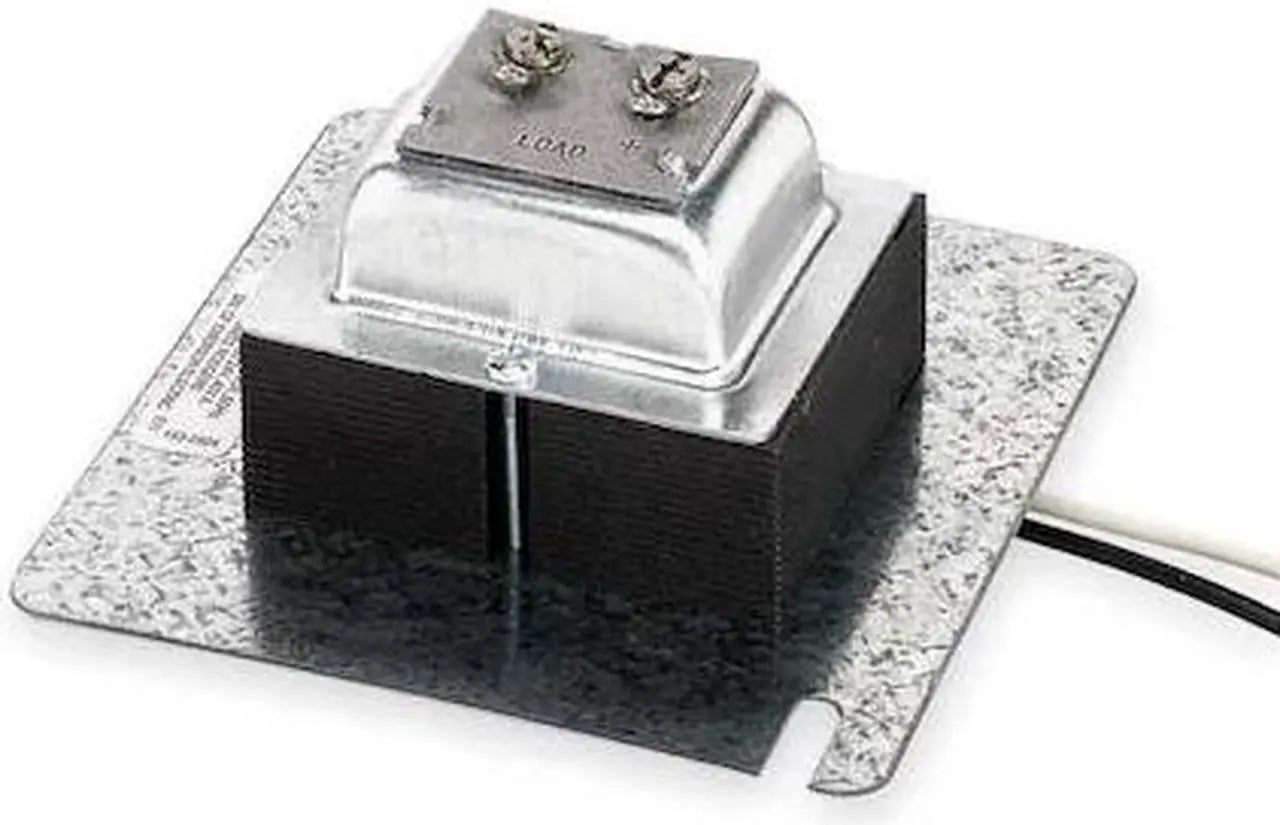

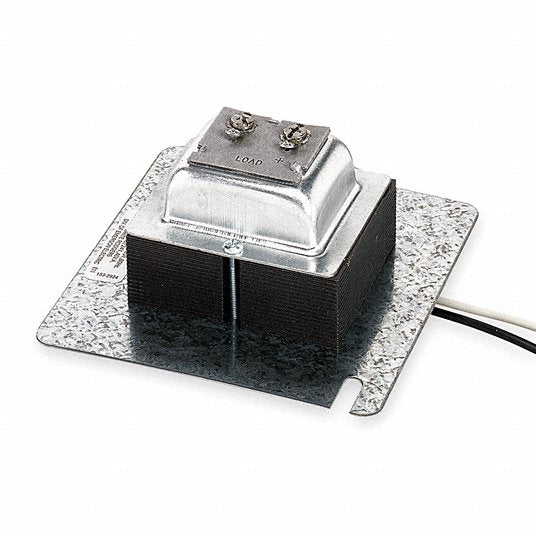

White-Rodgers S84A410S1 Class 2 Transformer 40 VA Plate Wire Lead

Product Description

The WHITE-RODGERS S84A410S1 is an open Class 2 transformer that can be paired with a protective device. Suitable for use on digital controllers, gas controls, ignition systems, motor actuators, staging controls, and most other HVAC and refrigeration control systems. Operates at 120V AC input and 24V AC output with a power rating of 40 VA.

• Screw terminals secondary
• Energy limiting design, unaffected by momentary short circuit
• Continued short circuit of secondary will cause primary winding to open in 1 to 2 minutes without creating a fire hazard

Product Highlights

This Class 2 transformer is designed for HVAC and refrigeration control systems, offering reliable performance and safety features.

Product Information

Standard Information

• Brand: WHITE-RODGERS
• Manufacturer Part Number: S84A410S1
• Country of Origin: China

Technical Specifications

• Brand: WHITE-RODGERS
• Manufacturer Part Number: S84A410S1
• Connection - Primary: Wire Lead
• Connection - Secondary: Wire Lead
• Enclosure Finish: No Finish
• Enclosure Style: Open
• Frequency: 60 Hz
• Input Voltage: 120V AC
• Mounting: Plate
• NEMA Enclosure Rating: Not Rated
• Operating Temperature - Maximum: 150 °F
• Output Voltage: 24V AC
• Phase: Single
• Power Rating: 40 VA
• Protective Device: None
• Standards: UL Recognized File No. E33334
