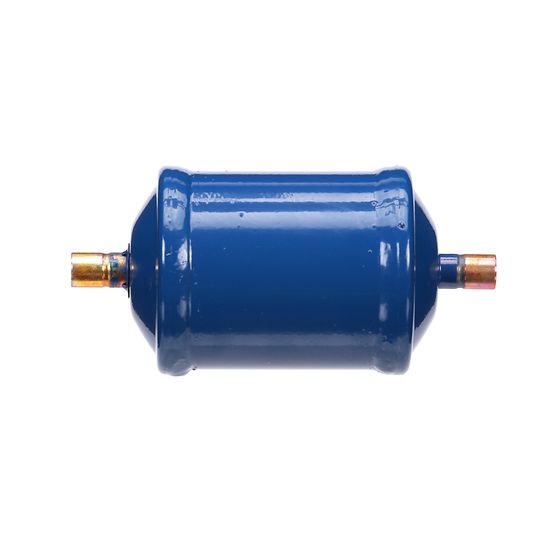

White-Rodgers BFK163S Heat Pump Bi-Directional Liquid Line Filter Drier 3/8 inches OD 16 Cube

Product Description

The White-Rodgers BFK163S is a bi-directional liquid line filter drier with a 3/8" OD. Internal check valves allow flow and filtration in either direction, eliminating the need for external check valves. It features high moisture and acid removal capacity and is approved for POE oils with Copeland compressors. The filter drier has a corrosion-resistant epoxy powder paint finish.

• Bi-Directional Liquid Line Filter Drier
• Internal check valves allow flow and filtration in either direction, eliminates need for external check valves
• High moisture and acid removal capacity

Product Highlights

This bi-directional filter drier is optimized for high water and acid capacity, ensuring efficient filtration for heat pump systems using CFC, HCFC, and HFC refrigerants.

Product Information

Standard Information

• Brand: WHITE-RODGERS
• Manufacturer Part Number: BFK163S
• Country of Origin: Mexico

Technical Specifications

• Unit Size: 16 Cubic inches
• Inlet Connection Size: 3/8” ODF
• Outlet Connection Size: 3/8” ODF
• Access Type: None
• Desiccant Blend: Blend optimized for high water capacity and acid capacity
• Filtration: 40 microns
• Maximum Working Pressure: 680 psig
• Approvals: UL/CUL File Number SA3124
• Compatible Brand: For Emerson, For Parker, For White-Rodgers, Supco, DiversiTech, Ranco
• Brand: White-Rodgers
• Type: Reversible/Bi-flow Filter Drier
• Model: BFK 163S
• Connection Size: 3/8 in
• MPN: 043333
