Product Description

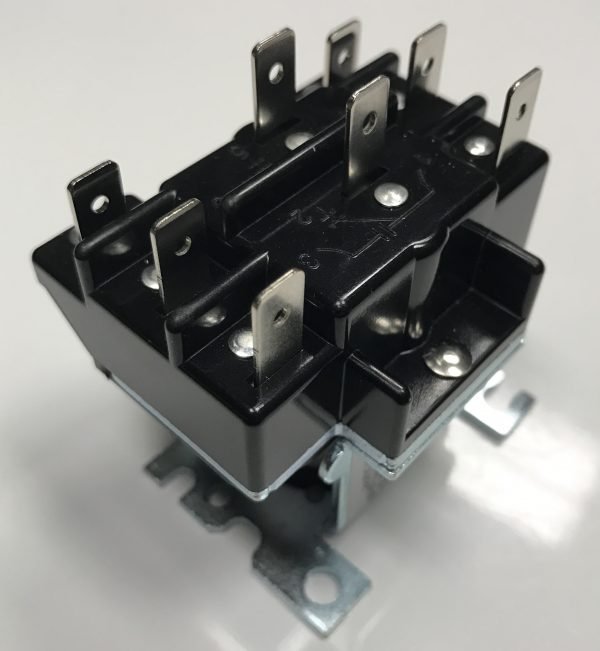

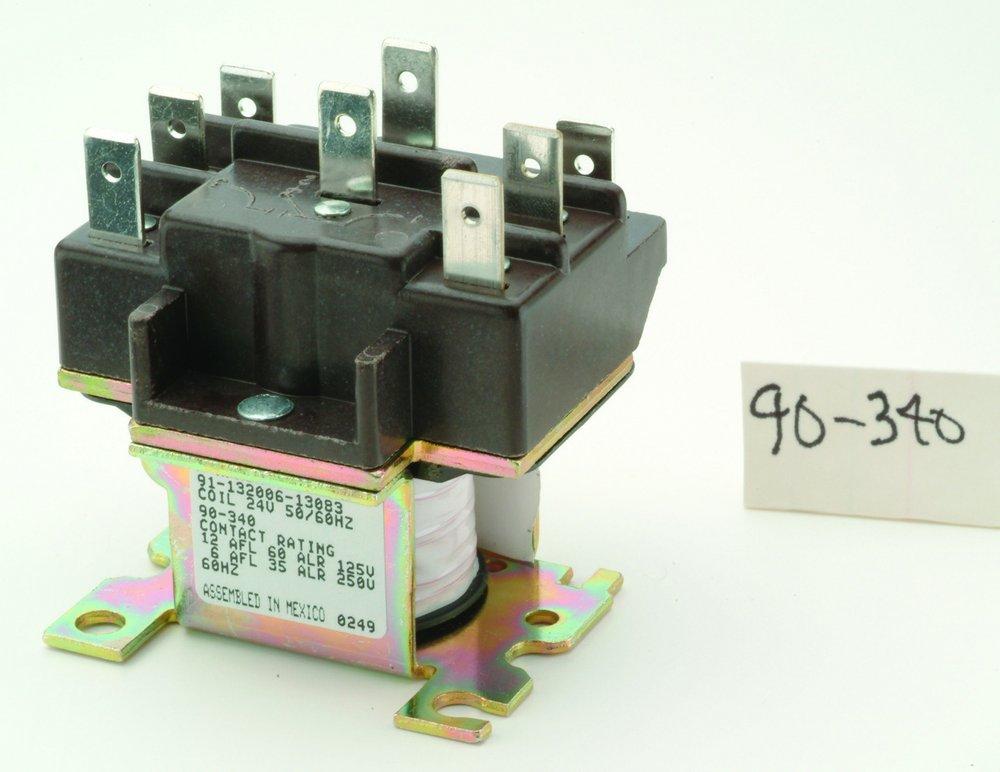

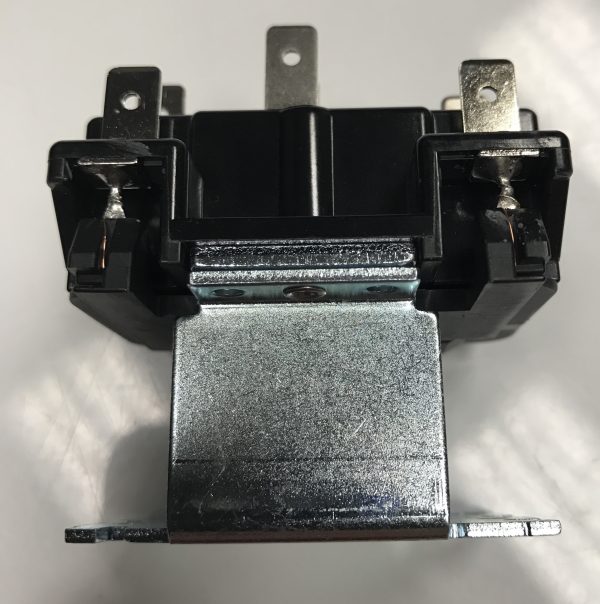

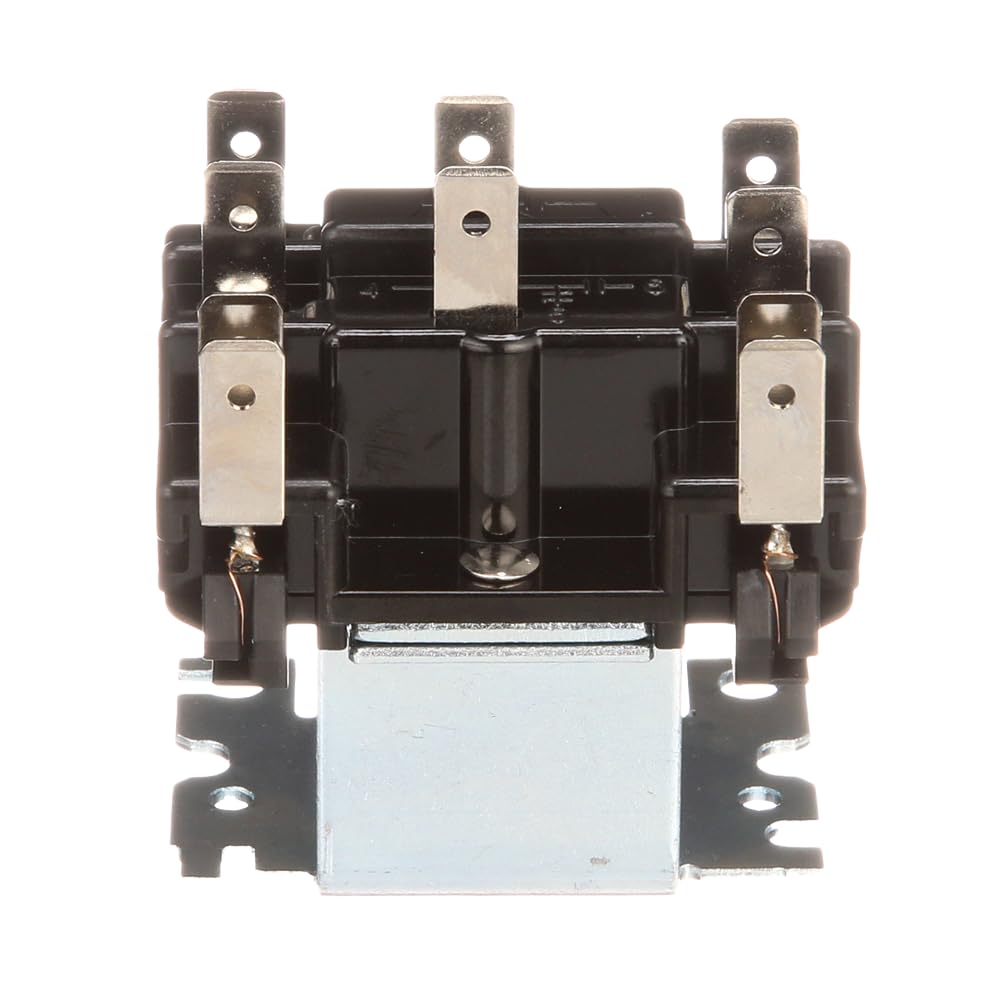

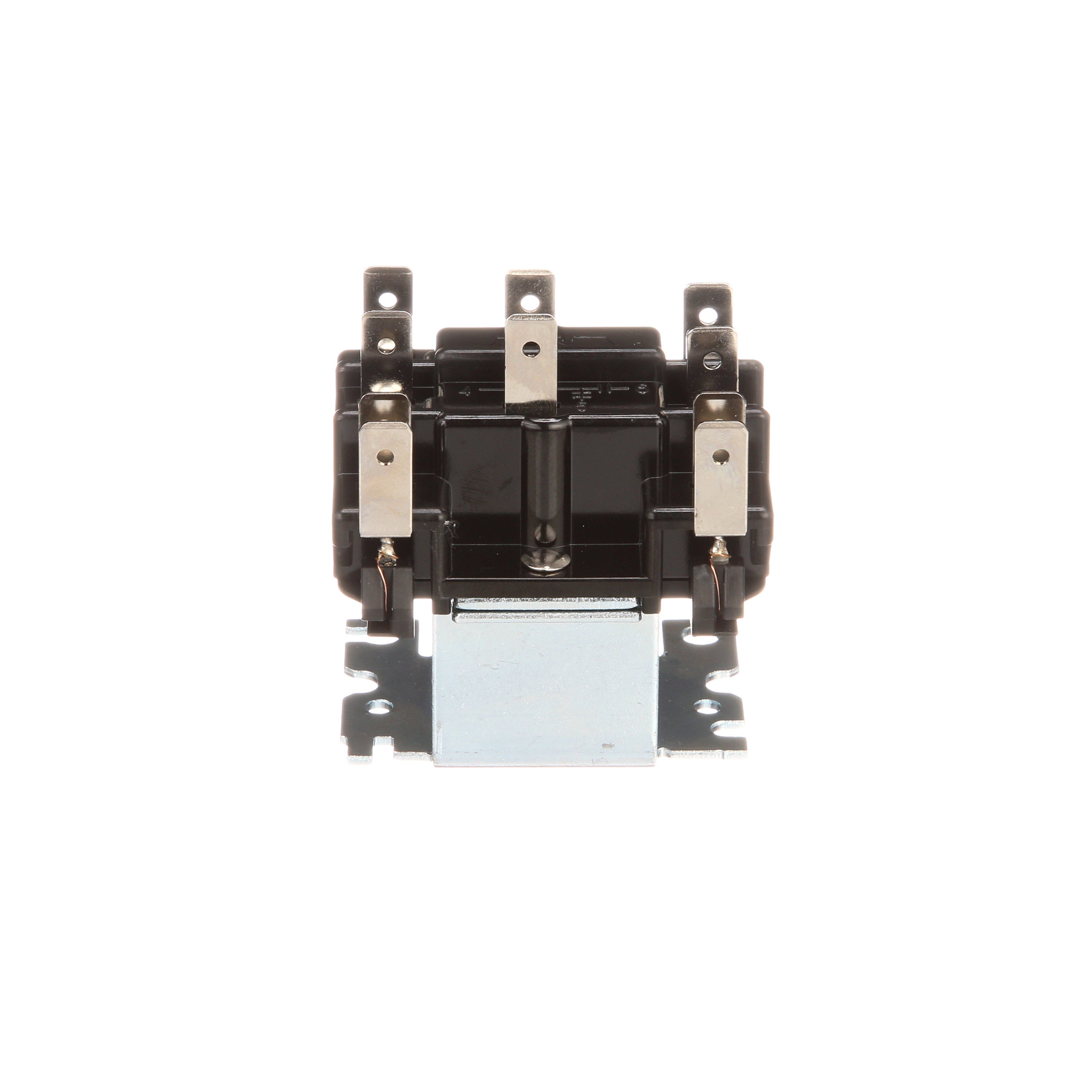

The WHITE-RODGERS 90-340 is a 2-pole switching relay with a 24 VAC coil. This relay is suited for use in vending machines, appliances, and HVAC systems, as well as for general purpose switching. It features DPDT contacts and is easy to install. The relay is semi-enclosed for protection and has a coil resistance of 17.5 ohms.
- Easy to install
- DPDT contacts for versatile switching applications
- Suitable for HVAC, appliances, and vending machines
Product Highlights
The WHITE-RODGERS 90-340 is a versatile 2-pole switching relay with a 24 VAC coil, ideal for various applications.
Product Information
Standard Information
-
Brand: WHITE-RODGERS
-
Manufacturer Part Number: 90-340
-
Country of Origin: CN
Technical Specifications
-
Coil Voltage: 24 VAC
-
Operation Mode: Automatic
-
Specification Met: UL
-
Maximum Switching Voltage: 24 Volts
-
Manufacturer: WHITE RODGERS
-
Brand: White-Rodgers
-
MPN: 90-340
-
Product Type: RELAY
-
Fits Fan Control Centers: 90-112, 90-113, 90-118E and 90-119
-
Contacts: dpdt
-
Full Load Inductive: 12.0a (125 vac), 6.0a (240/277 vac)
-
Locked Rotor: 60.0a (125 vac), 35.0a (240/277 vac)
-
Resistive: 15.0a (277 vac)
-
Coil Resistance: 17.5 ohms
-
Coil Current: 334 ma
-
Coil VA (Nominal): 9.5 va
-
Coil VA Inrush (Max): 22 va
-
Amperage Rating: 334 mA
-
Contact Form: DPDT
-
Contact Rating: 12 FLA/60 LRA at 125 VAC, 6 FLA/35 LRA at 250/277 VAC, 15 A at 277 VAC RES, 1/2HP 125/250 VAC
-
Frequency Rating: 50/60 Hz
-
Mfg Standards/Approvals: UL E73641
-
Specifications: 2-Pole
-
HP: 1/2 hp
-
Item: Magnetic Relay
-
Type: AC Switching
-
Sealing: Semi-Enclosed
-
Mounting: Universal
-
Standards: CSA File No. LR13360, UL E12139
-
Application: Air Conditioning, Heating/Ventilating Control System, Motor Starting, Heating Element Operation and Power Supply Control
-
Motor Rated: Yes
-
Switch Type: DPDT
-
Input Voltage: 24V AC
-
Agency Compliance: UL
-
Coil Voltage Type: AC
-
Operating Current: 15 A at 277V AC (Resistive Load)
-
Power Consumption: 9.5 VA
-
Contact Rating (AC): 334 mA @ 125V
-
Horsepower @ 120V AC: 1/2 hp
-
Horsepower @ 240V AC: 1/2 hp
-
Relay Mounting Style: Surface
-
Electrical Connection: Quick-Connect
-
Full Load Amps @ 277V: 6.0
-
Resistive Amps @ 277V: 15.0
-
Full Load Amps @ 120VAC: 12
-
Full Load Amps @ 240VAC: 6
-
Environmental Protection: Enclosed
-
Locked Rotor Amps @ 120V: 60
-
Locked Rotor Amps @ 240V: 35
-
Electrical Connection Type: Tab
-
Maximum Operating Temperature: 130 Degrees F
-
Minimum Operating Temperature: -40 Degrees F
-
Electrical Operating Durability: 100,000
-
Mechanical Operating Durability: 1,000,000
-
Compatible with Grainger Part Number: 1N182, 2E852, 3TZ56
-
Compatible with Manufacturer Model Number: 90-112, 90-113, 90-118E, 90-119
-
Terminal Type: Quick-Connect
-
Enclosure Type: Semi-Enclosed
-
Number of Poles: 2
-
Temperature Rating: -40 to 130 deg F
-
Manufacturer Name: Emerson Electric
