Product Description

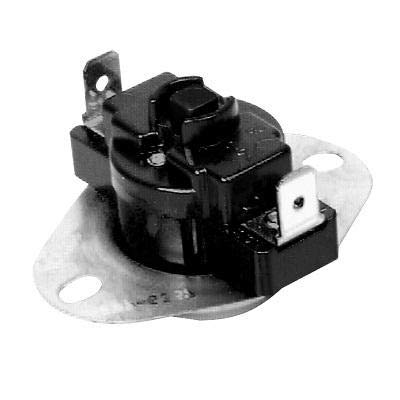

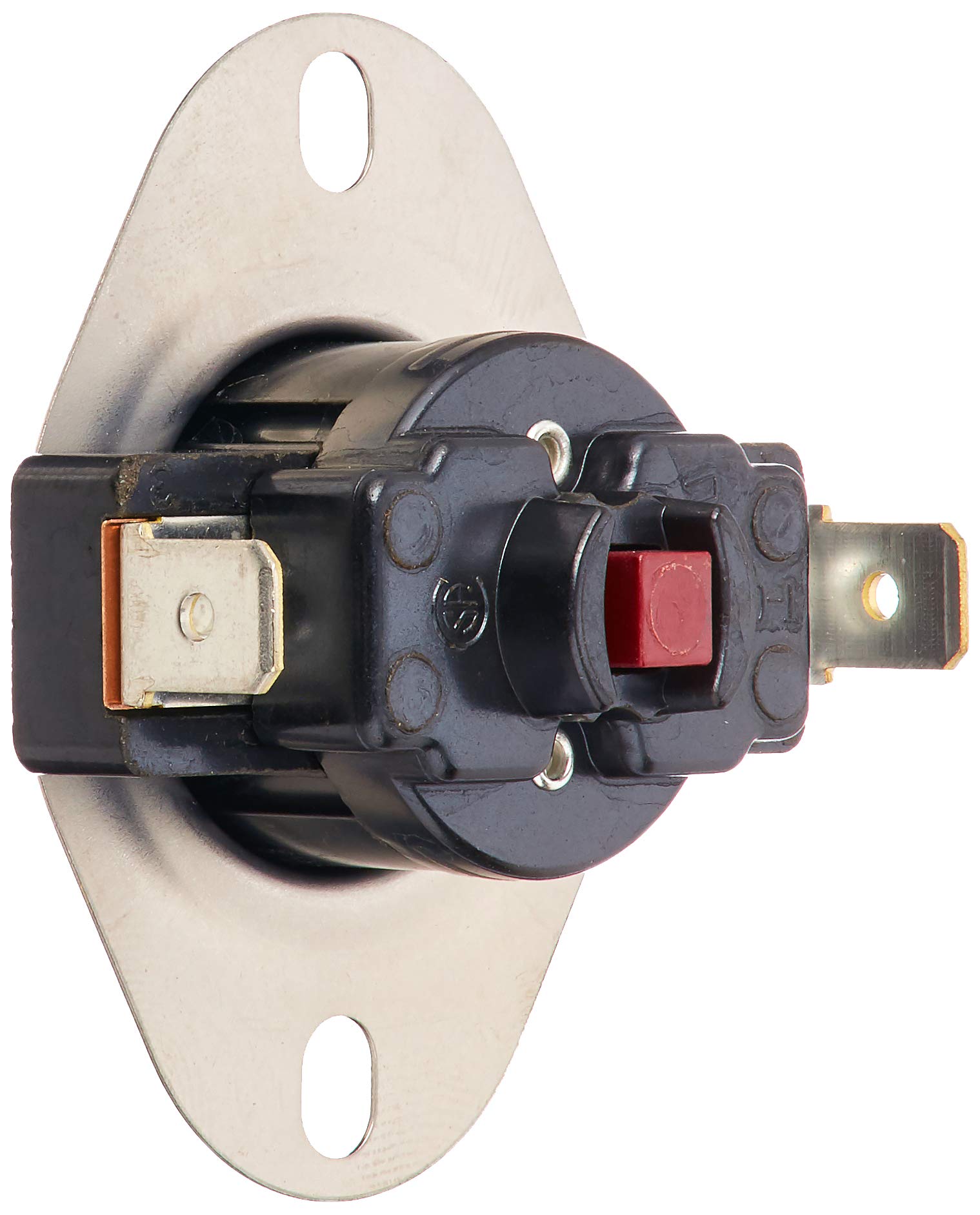

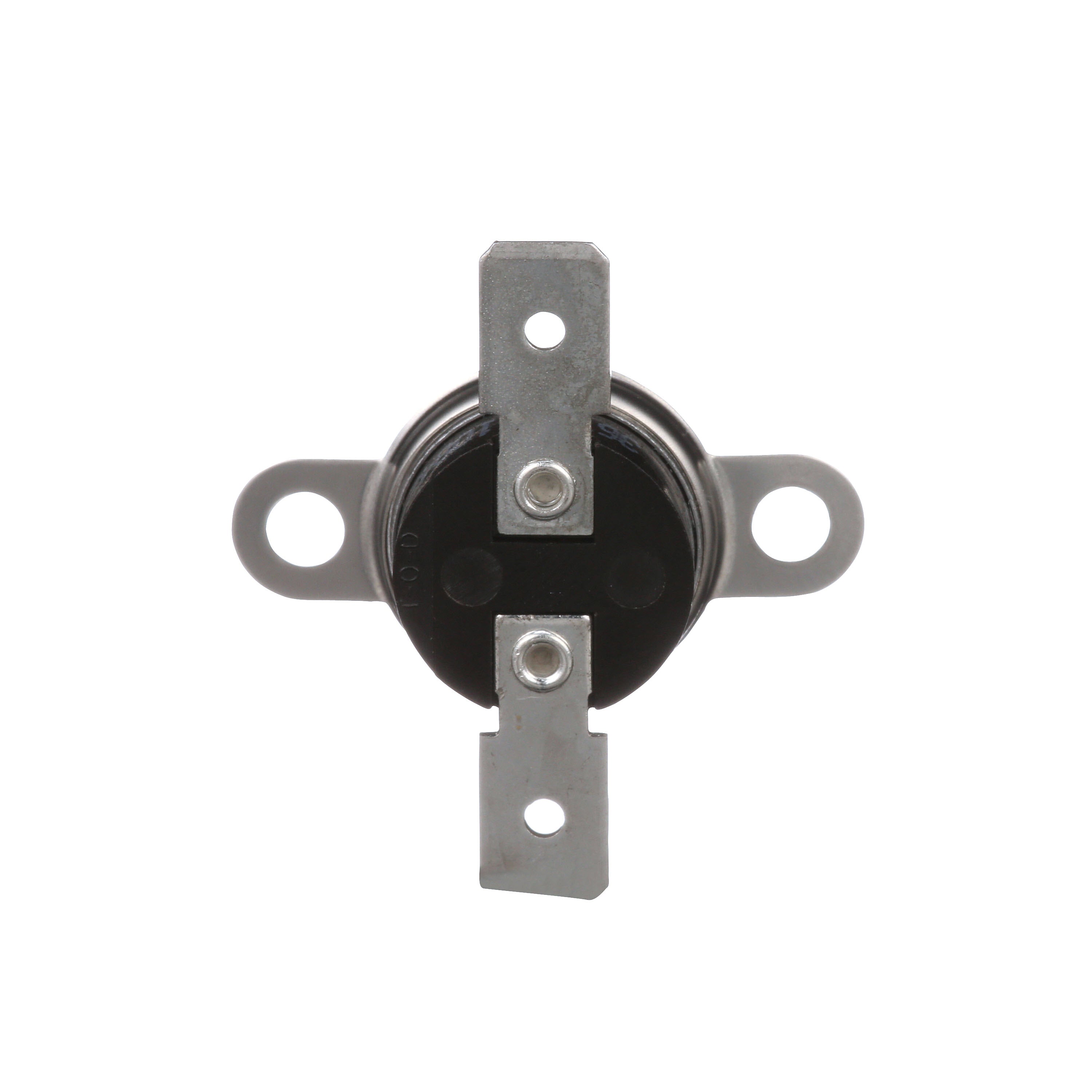

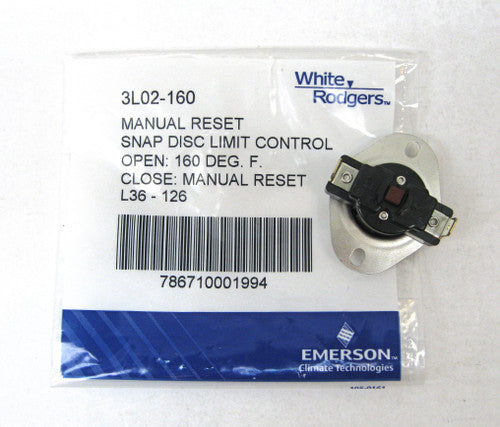

The WHITE-RODGERS 3L02-160 is a limit disc designed for high limit safety regulation. It features a manual reset and is an open-on-rise control. This snap disc limit control is suitable for appliance and HVAC applications, specifically for regulation of fan, blower, or high limit safety control. The disc is made of aluminum with stainless steel mounting brackets.
- Features a 1/4 Inch Quick-Connect Terminal
- Equipped with stainless steel mounting brackets
- Opens at 160 Deg F (71 Deg C)
Product Highlights
Snap disc limit control with manual reset and 160 Deg F cut-out temperature. Designed for safety regulation in HVAC and appliance applications.
Product Information
Standard Information
-
Brand: WHITE-RODGERS
-
Manufacturer Part Number: 3L02-160
-
Country of Origin: Mexico
Technical Specifications
-
Item Model Number: 3L02-160
-
Type: Snap Disc, Manual Reset
-
Switch Type: SPDT
-
Power Rating: 125 Volt Amp at 120/240/277 Volt AC (Pilot Duty)
-
Current Rating: 10 Amp at 120 Volt AC/5 Amp at 240 Volt AC (Full Load), 25 Amp at 120/240 Volt AC/21.6 Amp at 277 Volt AC (Resistive)
-
Voltage Rating: 120/240 Volt AC (Full Load), 120/240/277 Volt AC (Resistive/Pilot Duty)
-
Temperature Rating: 160 Deg F (Cut-Out)
-
Additional Information: Snap Disc Size 3/4 Inch; Terminal Type 1/4 Inch Quick-Connect; Material Aluminum (Disc Cup), Stainless Steel (Mounting Bracket); Therm-O-Disc Style 60T15; Therm-O-Disc Type 330534; Used On Regulation of Fan/Blower/High Limit Safety Control; For Appliance and HVAC
-
Manufacturer Name: White-Rodgers
-
Manufacturer Part Number: 3L02-160
-
Manufacturer Part Number Additional: 03L02-160S1
-
Brand: WHITE-RODGERS
-
Application: Cooling Controls
-
Cut-Out: 160 deg F
-
Voltage: 120/240/277 VAC
-
Connection: 1/4" Spade
-
Reset Type: Manual
-
Opens: 160 Deg F. (71 Deg C.)
-
Close: Manual Reset
-
Function: Open On Rise
-
Sensing Mode: Open on rise
-
Series: 3L02 Series
-
Body Style: Disc
-
Brand/Part Number Replaced: Therm-O-Disc Type 60T15
-
California Prop 65 Cancer or Reproductive Harm: Yes
-
California Prop 65 Labeling: On package cancer & reproductive
-
CSA File Number: LR77886, LR109556
-
Model Number: 3L02-160
-
Product Depth/Width [in]: 2
-
Product Family: 3F/3L Snap Disc Fan Limits Automatic Temperature
-
Product Height [in]: 1.16
-
Product Length [in]: 1.63
-
Product Weight [lb]: 0.1
-
Switch Action: Open on Rise
-
Switch Reset: Manual Reset
-
Temperature, Cut-Out [°F]: 160
-
Typical Applications: Snap Disc Limit - Manual Reset SPST
-
UPC-12: 786710001994
