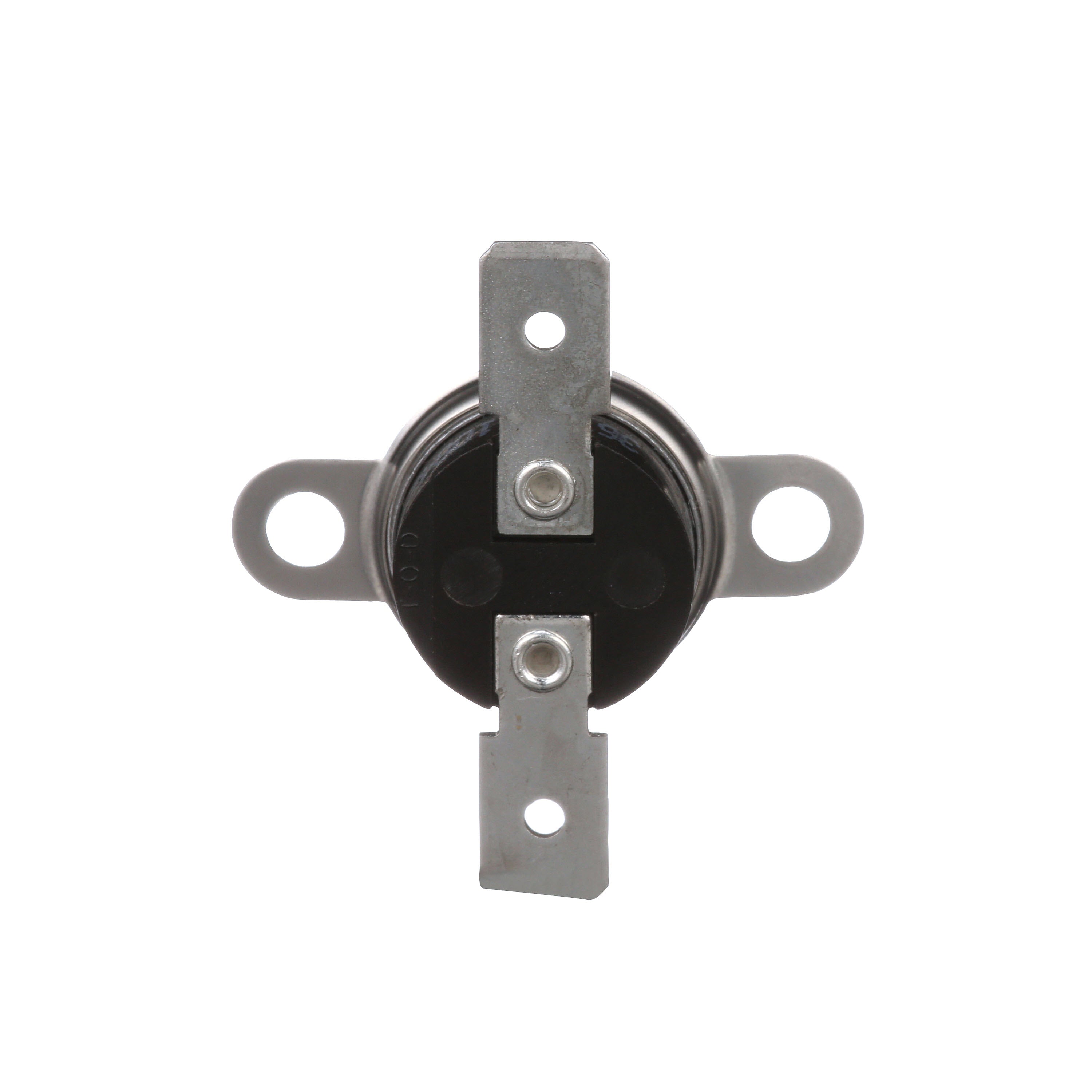

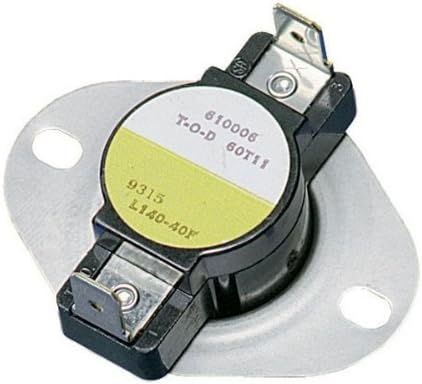

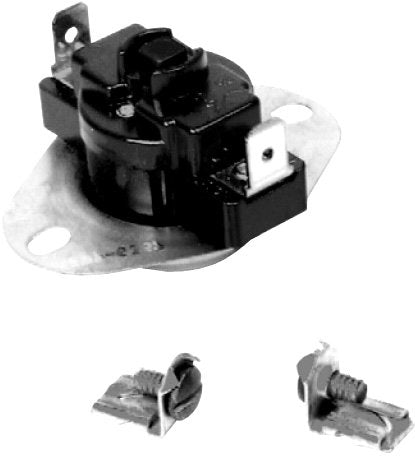

White-Rodgers 3L01-150 Snap Disc Fan Control Thermostat 3/4 Inch Disc

Product Description

The WHITE-RODGERS 3L01-150 snap disc fan control thermostat features automatic reset and is suitable for appliance and HVAC applications. It has a 3/4 Inch disc and SPST switch that closes on rise. This thermostat is used on regulation of fan, blower/high limit safety control. It has a 1/4 Inch quick-connect terminal.

• Loose Ring, Stainless Steel Mounting Brackets
• 1/4 Inch Quick-Connect Terminal
• Aluminum Disc Cup

Product Highlights

Snap disc thermostat for temperature regulation in HVAC and appliance applications. Features automatic reset and quick-connect terminals.

Product Information

Standard Information

• Brand: WHITE-RODGERS
• Manufacturer Part Number: 3L01-150
• Country of Origin: CH

Technical Specifications

• Type: Automatic Reset
• Voltage Rating: 120/240 Volt AC (Full Load), 120/240/277 Volt AC (Resistive/Pilot Duty)
• Current Rating: 10 Amp at 120 Volt AC, 5 Amp at 240 Volt AC (Full Load), 25 Amp at 120/240 Volt AC, 21.6 Amp at 277 Volt AC (Resistive)
• Power Rating: 125 Volt Amp at 120/240/277 Volt AC (Pilot Duty)
• Switch Type: SPST, Close on Rise
• Temperature Rating: 110 Deg F (Cut-In), 150 Deg F (Cut-Out)
• Size: 3/4 Inch Disc
• Terminal Type: 1/4 Inch Quick-Connect
• Material: Aluminum (Disc Cup), Stainless Steel (Mounting Bracket)
• Therm-O-Disc Type: 60T11
• Series/Model: 3L
• Manufacturer Part Number Additional: 03L01-150S1
• Application: Regulation of Fan, Blower or High Limit Safety Control
