Product Description

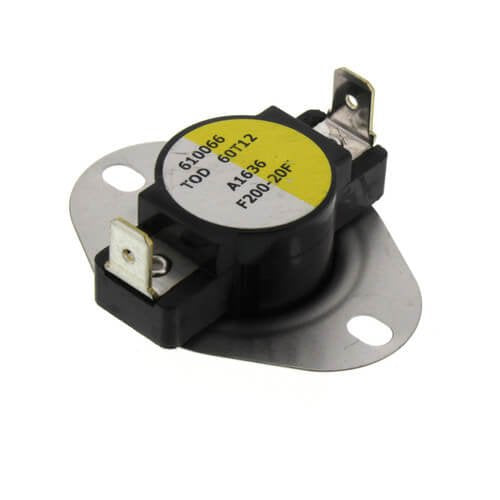

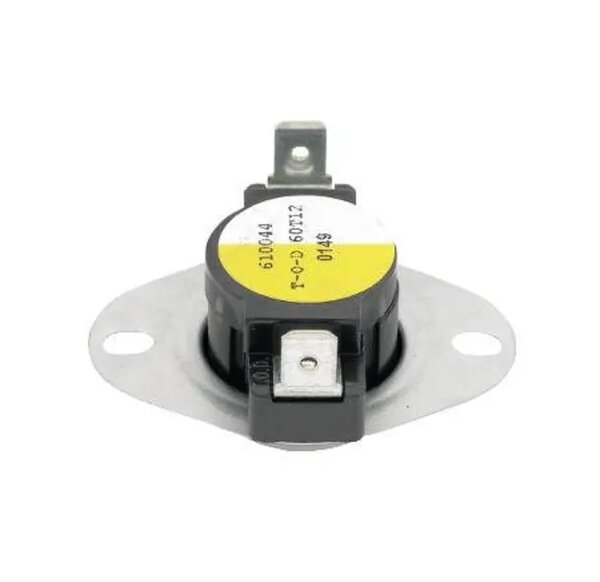

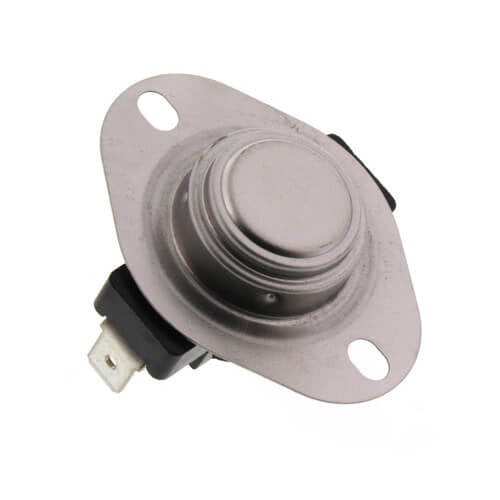

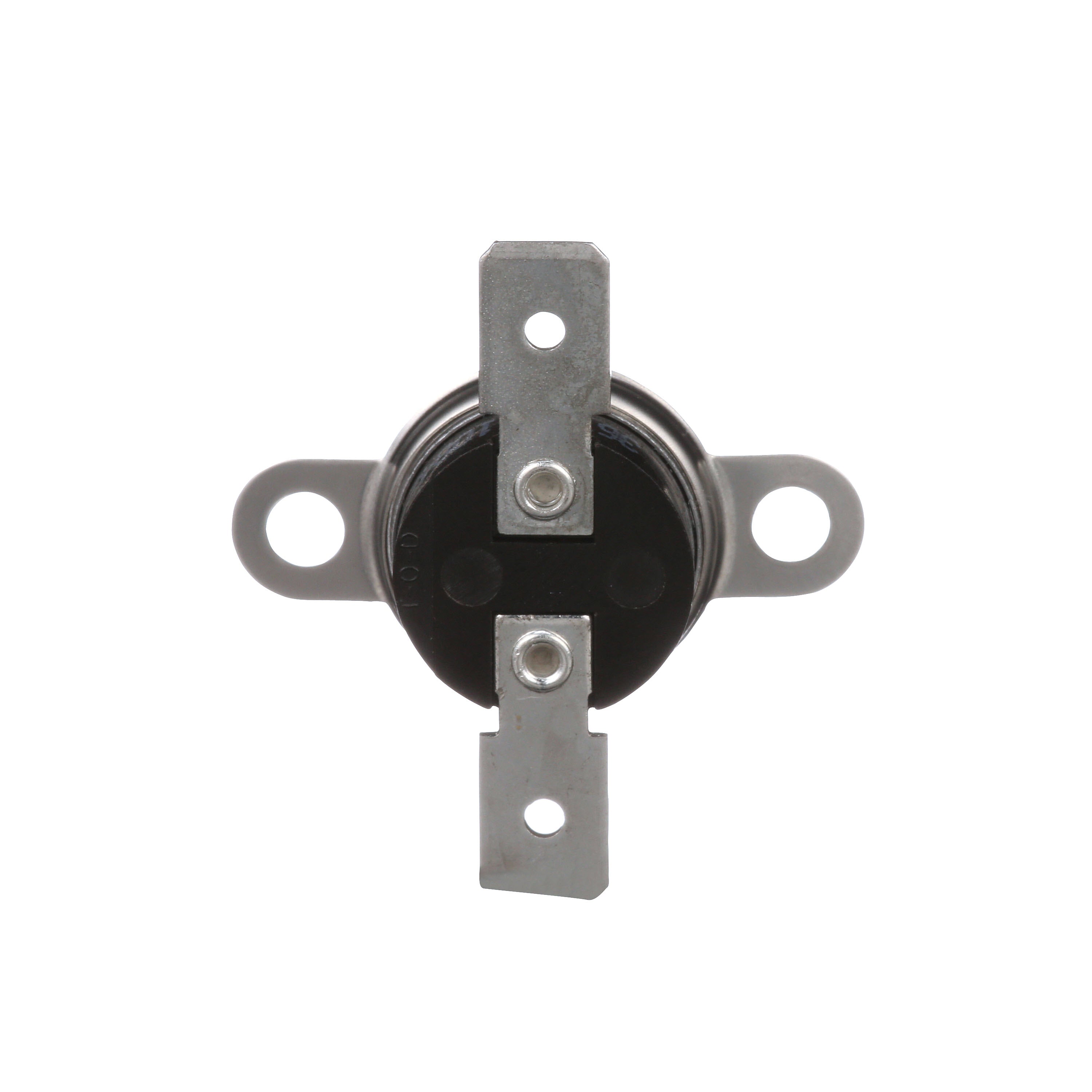

The WHITE-RODGERS 3F01-200 snap disc fan control is designed for quick on-job replacement. It is used for regulation of fan or blower control. The snap disc fan control has a 200 Deg F cut-in and 180 Deg F cut-out temperature rating. Mounting holes match standard 3/4 Inch snap discs.
- Designed for quick on-job replacement
- Mounting holes match standard 3/4 Inch snap discs
- Automatic reset
Product Highlights
The WHITE-RODGERS 3F01-200 snap disc fan control ensures precise temperature regulation in HVAC and appliance applications.
Product Information
Standard Information
-
Brand: WHITE-RODGERS
-
Manufacturer Part Number: 3F01-200
-
Country of Origin: United States
Technical Specifications
-
Item Model Number: 3F01-200
-
Type: Automatic Reset
-
Voltage Rating: 120/240 Volt AC (Full Load), 120/240/277 Volt AC (Resistive/Pilot Duty)
-
Current Rating: 10 Amp at 120 Volt AC, 5 Amp at 240 Volt AC (Full Load), 25 Amp at 120/240 Volt AC, 21.6 Amp at 277 Volt AC (Resistive)
-
Power Rating: 125 Volt Amp at 120/240/277 Volt AC (Pilot Duty)
-
Switch Type: SPST, Close on Rise
-
Temperature Rating: 200 Deg F (Cut-In), 180 Deg F (Cut-Out)
-
Size: 3/4 Inch Disc
-
Terminal Type: 1/4 Inch Quick-Connect
-
Material: Aluminum (Disc Cup), Stainless Steel (Mounting Bracket)
-
Therm-O-Disc Type: 60T12
-
Therm-O-Disc Type 2: 610066
-
Used On: Regulation of Fan/Blower Control
-
For: Appliance and HVAC
-
Manufacturer Part Number: 3F01-200
-
UNSPSC Code: 41112209
-
Contact Form: SPST
-
Differential: 20 deg F
-
Mounting Type: Airstream
-
Switch Action: Close on Rise
-
Inductive Rating: 5.8/34.8 A at 120 VAC, 2.9/17.4 A at 240 VAC
-
Resistive Rating: 25 A at 120/240 VAC
-
Manufacturer Name: Emerson Electric
-
Pilot Duty Rating: 125 VA
-
Electrical Connections: Quick-Connect
-
Application: Fan
-
Temp.Range: 200°F to 180°F
-
Close: 200F
-
Open: 180F
-
Brand: WHITE-RODGERS
