Product Description

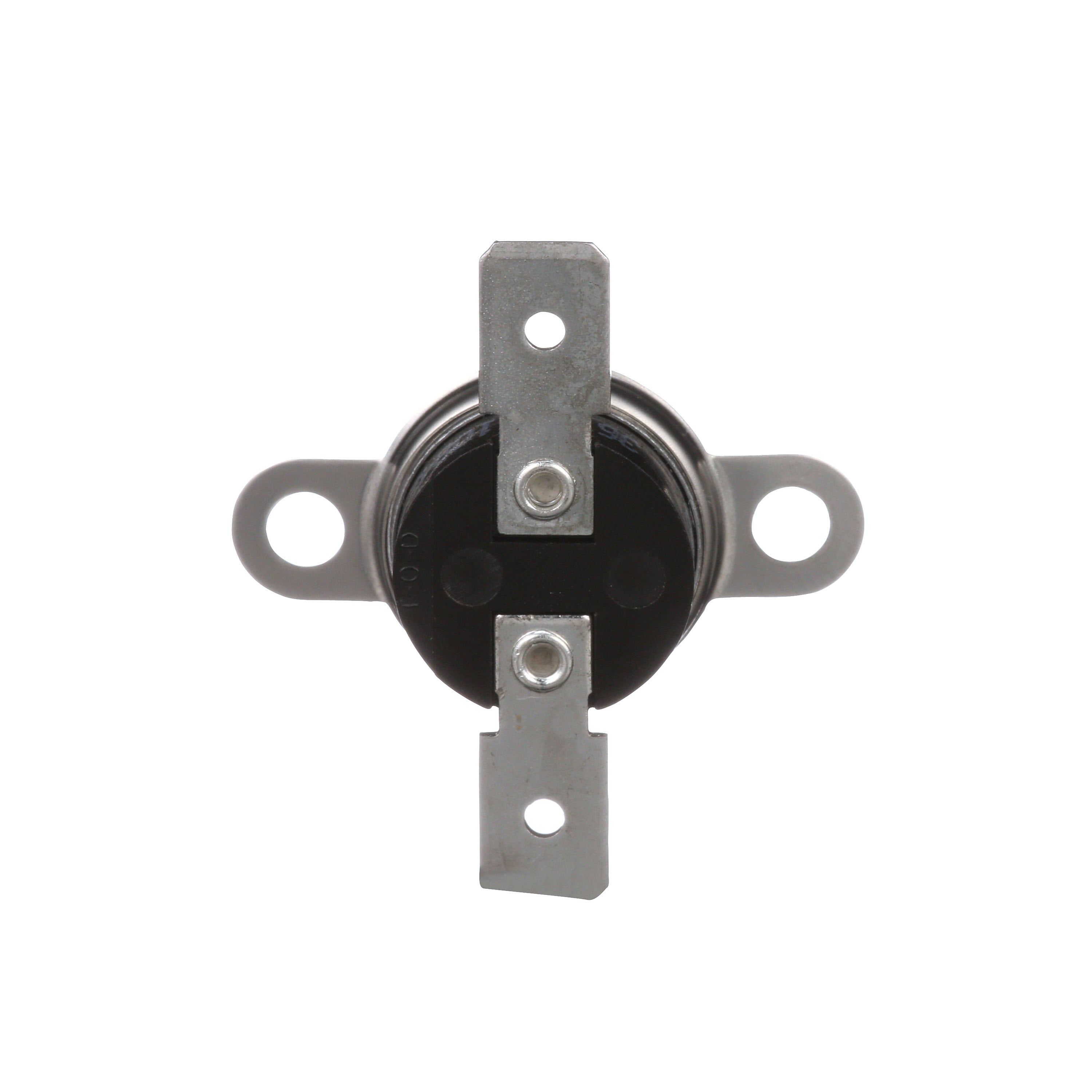

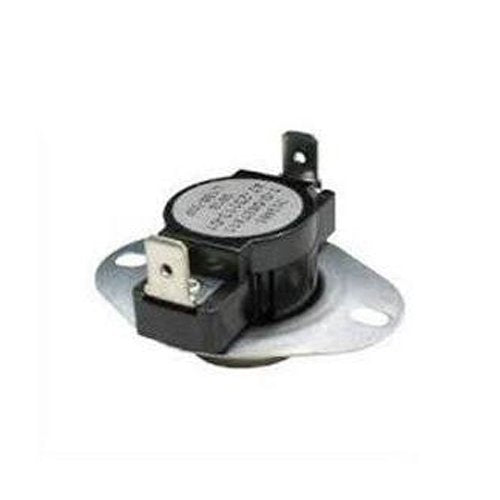

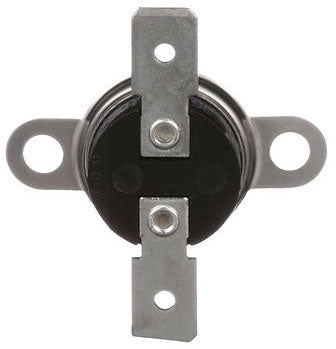

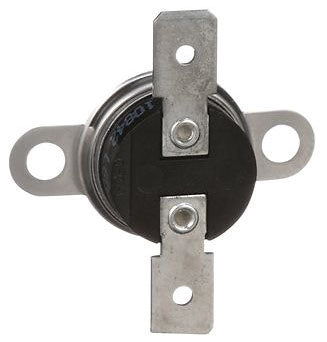

The WHITE-RODGERS 3F01-130 is a fan disc with a 130F cut-in temperature and a 20F differential. This fan control is designed for regulating air movement in HVAC systems. It features a snap disc design for accurate temperature control, ensuring optimal airflow and energy efficiency. It is suitable for appliances and HVAC systems.
- Designed for quick on-job replacement
- Mounting holes match standard 3/4 Inch snap discs
- Automatic reset
Product Highlights
This fan disc ensures consistent temperature regulation and easily integrates into existing systems, improving indoor air quality and system efficiency.
Product Information
Standard Information
-
Brand: WHITE-RODGERS
-
Manufacturer Part Number: 3F01-130
-
Country of Origin: United States
Technical Specifications
-
Item Model Number: 3F01-130
-
Brand: White-Rodgers
-
Model / MPN: 3F01-130
-
Number of Items: 1.0
-
Product Type: ELECTRONIC_COMPONENT
-
Manufacturer: White Rodgers
-
Type: Automatic Reset
-
Voltage Rating: 120/240 Volt AC (Full Load), 120/240/277 Volt AC (Resistive/Pilot Duty)
-
Current Rating: 10 Amp at 120 Volt AC, 5 Amp at 240 Volt AC (Full Load), 25 Amp at 120/240 Volt AC, 21.6 Amp at 277 Volt AC (Resistive)
-
Power Rating: 125 Volt Amp at 120/240/277 Volt AC (Pilot Duty)
-
Switch Type: SPST, Close on Rise
-
Temperature Rating: 130 Deg F (Cut-In), 115 Deg F (Cut-Out)
-
Size: 3/4 Inch Disc
-
Additional Information: Terminal Type 1/4 Inch Quick-Connect; Material Aluminum (Disc Cup), Stainless Steel (Mounting Bracket); Therm-O-Disc Type 60T12; Therm-O-Disc Type 610047; Used On Regulation of Fan/Blower Control; For Appliance and HVAC
-
Manufacturer Name: White-Rodgers
-
Manufacturer Part Number: 3F01-130
-
UPC: 786710001710
-
UNSPSC Code: 41112209
-
Series: 3F01
-
Contact Form: SPST
-
Differential: 15 deg F
-
Mounting Type: Airstream
-
Switch Action: Close on Rise
-
Inductive Rating: 5.8/34.8 A at 120 VAC, 2.9/17.4 A at 240 VAC
-
Resistive Rating: 25 A at 120/240 VAC
-
Pilot Duty Rating: 125 VA
-
Electrical Connections: Quick-Connect
-
Cut-In Temperature: 130 deg F
-
Cut-Out Temperature: 115 deg F
-
Voltage: 120/240/277 VAC
-
Terminal Connection: 1/4" Spade Connect
-
Temperature, Cut-In [°F]: 130
-
Temperature, Cut-Out [°F]: 115
-
Product Depth/Width [in]: 2
-
Product Height [in]: 1.08
-
Product Length [in]: 1.63
-
Product Weight [lb]: 0.1
-
Typical Applications: Snap Disc Fan - Automatic Reset SPST
-
UPC-12: 786710001710
-
Brand/Part Number Replaced: Therm-O-Disc Type 60T12
