WHITE-RODGERS 1F83C-11PRGRASSERS Programmable Thermostat

Product Description

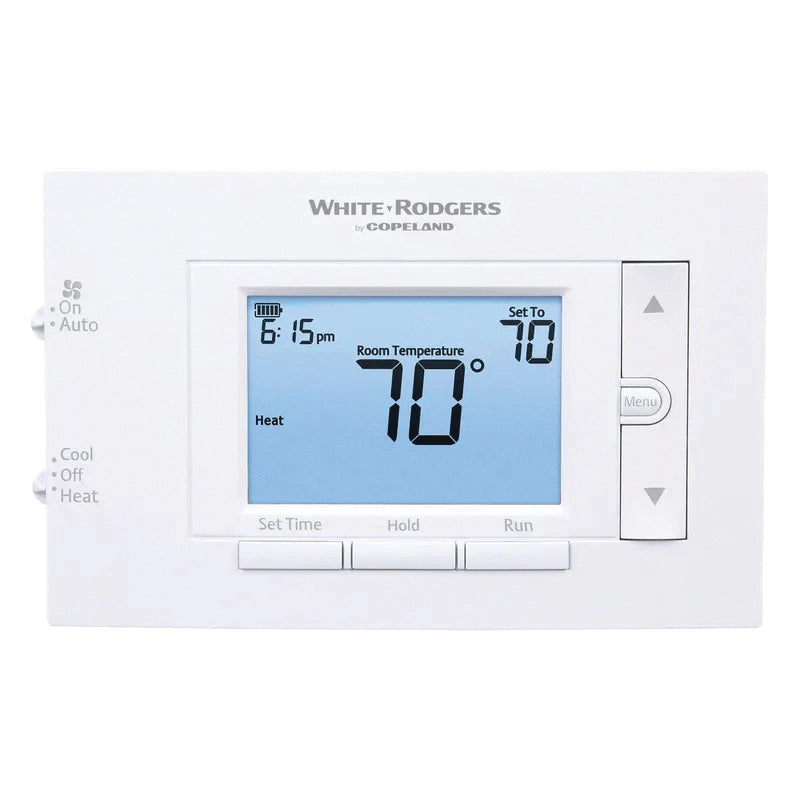

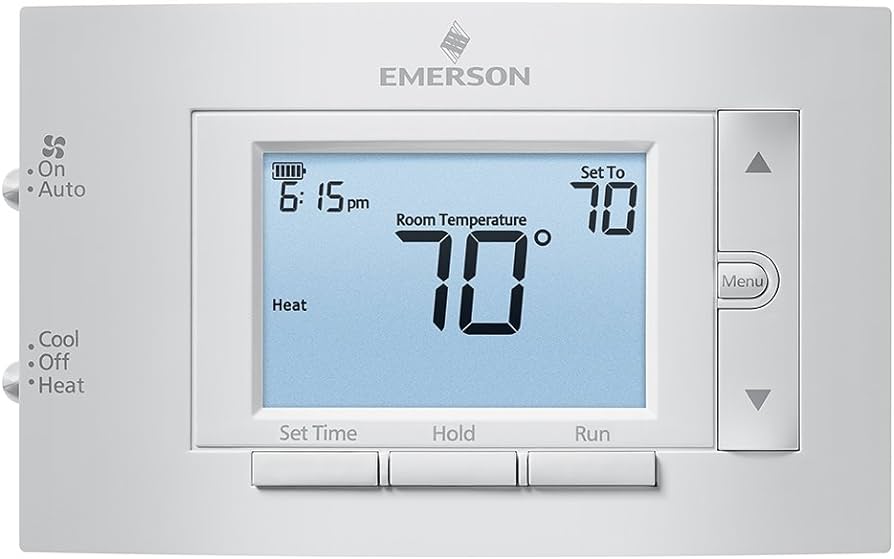

The WHITE-RODGERS 1F83C-11PRGRASSERS is a digital programmable thermostat designed for single-stage heating and cooling systems. It provides flexible programming options to meet various user preferences. This thermostat can be set for a full week or tailored for 5+1+1 day usage. It is powered either by batteries or hardwired, making it suitable for a range of applications. The device has a user-friendly design with a large backlit display that ensures visibility even in low-light settings. Additionally, features like keypad lockout and temperature limits enhance its functionality.

• Large display with backlight for easy visibility.
• Selectable programming modes: weekly and 5+1+1 day.
• Includes keypad lockout and adjustable temperature limits.

Product Highlights

Product Information

Standard Information

• Application: 1 Heat / 1 Cool
• Wi-Fi Enabled: No

Technical Specifications

• Programs per Week: 7 Day or 5+1+1
• Changeover: Manual
• Stages: Single Stage 1 Heat/1 Cool
• Display Temperature Range: 32°F to 99°F (0°C to 37°C)
• Operating Humidity: 90% non-condensing max
• Dimensions: 3.75 inches H x 6 inches W x 1.125 inches D
• Electrical Rating: mV to 30 VAC, NEC Class II, 50/60 Hz
• Input-Hardwire: 20 to 30 VAC, NEC Class II, 50/60 Hz
