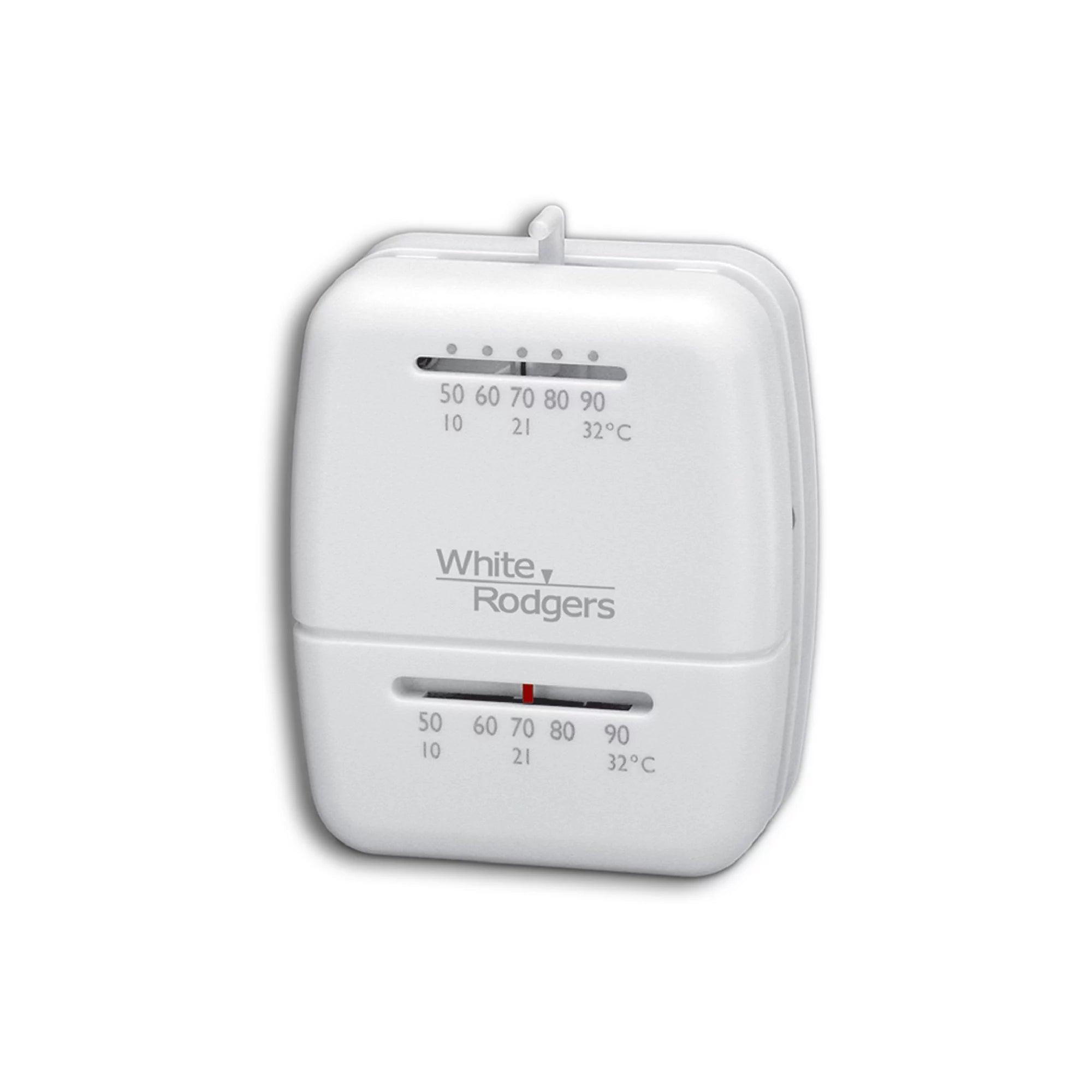

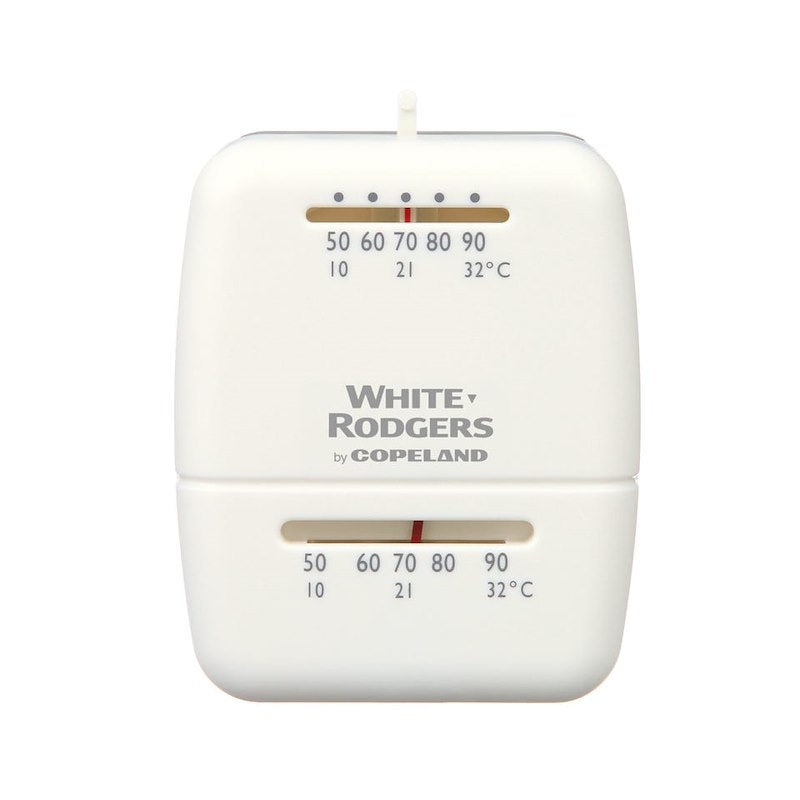

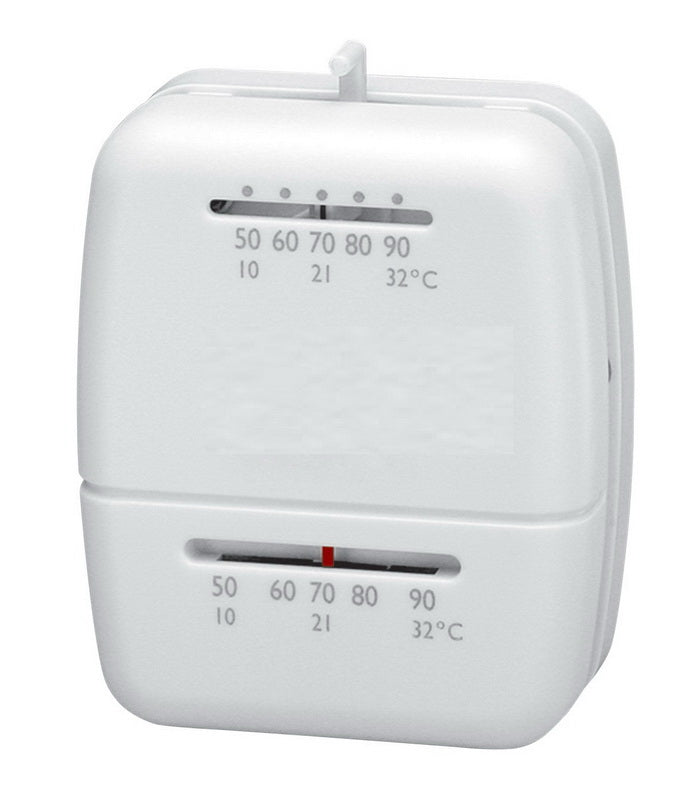

White-Rodgers 01C20 102S1 Economy Mechanical Low Voltage Room Thermostat

Product Description

The WHITE-RODGERS 01C20 102S1 is a single-stage (1H/0C) setpoint thermostat operating at 24 Volts with snap-action functionality, designed for heat-only systems. It features a vertical rounded profile and a temperature range of 50-90°F. The thermostat includes terminals Rh and W for easy connectivity.

• Features rugged snap-action contacts
• Includes an adjustable heat anticipator
• Equipped with a bi-metal thermometer

Product Highlights

This mechanical thermostat is ideal for maintaining consistent temperatures in heat-only environments.

Product Information

Standard Information

• Brand: WHITE-RODGERS
• Manufacturer Part Number: 01C20 102S1
• Country of Origin: CHN

Technical Specifications

• Brand: White-Rodgers
• Stages Cool: 0
• Stages Heat: 1
• Temperature Range: 500F to 900F (100C to 32.220C)
• UPC: 786710100482
• Voltage: 24 VAC
• Country of Origin: CHN
• Terminal Designations: R,W
• Type: Heat Control
• Stage: Single
• Readout: Mechanical
• MPN: 01C20102S1
• System Application: Heat Only
• With Fan Speed Control: No
