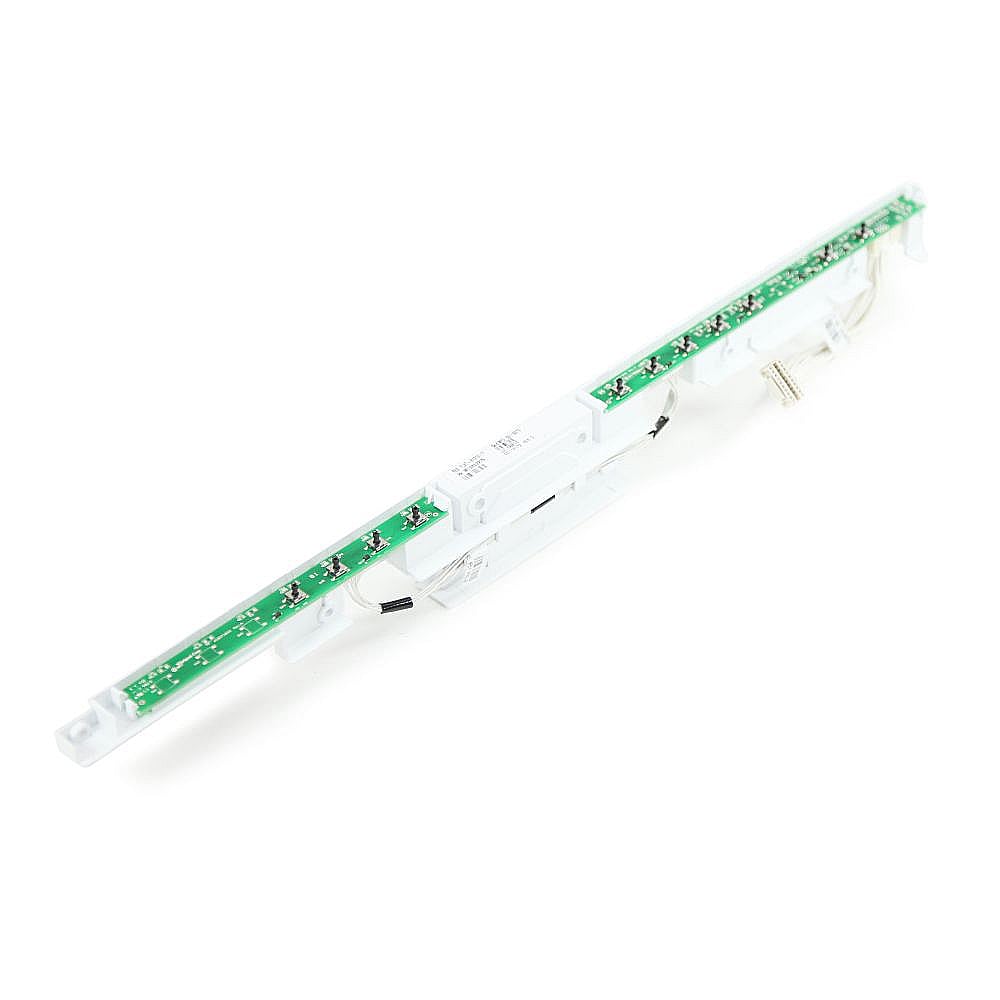

Whirlpool WPW10333391 Dishwasher Control Board

Product Description

The WHIRLPOOL WPW10333391 is an electronic control board designed for use in Whirlpool dishwashers. The control board serves as the central processing unit of the dishwasher, managing cycle timing, water fill and drain sequences, wash arm operation, heating element activation, and user interface communication. Licensed appliance technicians and experienced service pros install this board when the original has failed due to power surge damage, relay failure, or general component fatigue. It is a direct OEM-style replacement intended to restore full dishwasher function.

This control board is suited for residential dishwasher applications where the existing board has stopped responding, is displaying fault codes, or has suffered visible burn damage. It fits into the control panel assembly and interfaces with the door latch, float switch, water inlet valve, and motor circuits. Service technicians typically encounter this part during diagnostic calls where the unit fails to start, stalls mid-cycle, or does not advance through wash stages.

Key Features

• Electronic control board managing all major dishwasher operating functions
• OEM-style replacement for failed or damaged original control boards
• Interfaces with water inlet valve, drain pump, heating element, and user controls
• Designed for residential dishwasher installations

Compatibility

Designed as an OEM-style replacement control board for residential Whirlpool dishwashers. Verify compatibility with the specific model number on the unit's data plate before installation.

Installation Notes

Installation should be performed by a qualified appliance technician. Disconnect power at the breaker or by unplugging the unit before removing the door panel or accessing the control board assembly. Discharge any stored voltage in capacitors before handling the board, and follow standard electrostatic discharge precautions when handling electronic components. Refer to the unit's wiring diagram, typically located inside the door panel, to ensure correct connector placement during reassembly.

Technical Specifications

• Part Type: Electronic Control Board
• Application: Dishwasher

Standard Information

• Brand: WHIRLPOOL
• Manufacturer Part Number: WPW10333391
