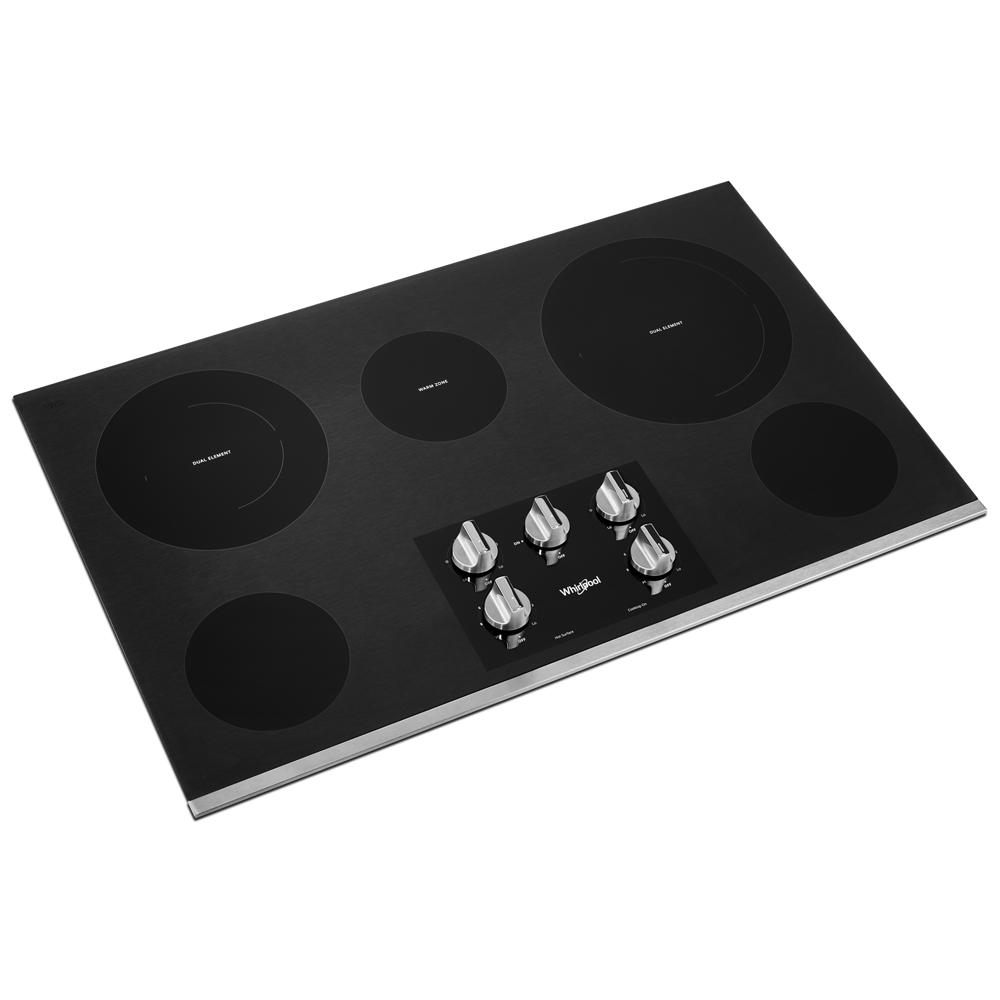

Whirlpool WCE77US6HS 5 Burner Radiant Cooktop in Heritage Stainless Steel

Product Description

The Whirlpool WCE77US6HS is a 5 Burner Radiant Cooktop designed with an easy-to-clean cooktop surface. It features a 6" inner ring suitable for smaller cookware and a 10" expandable outer ring for larger pots and pans. The cooktop has a fifth element for added versatility and a warming zone to keep food warm. It also features a hot surface indicator light.

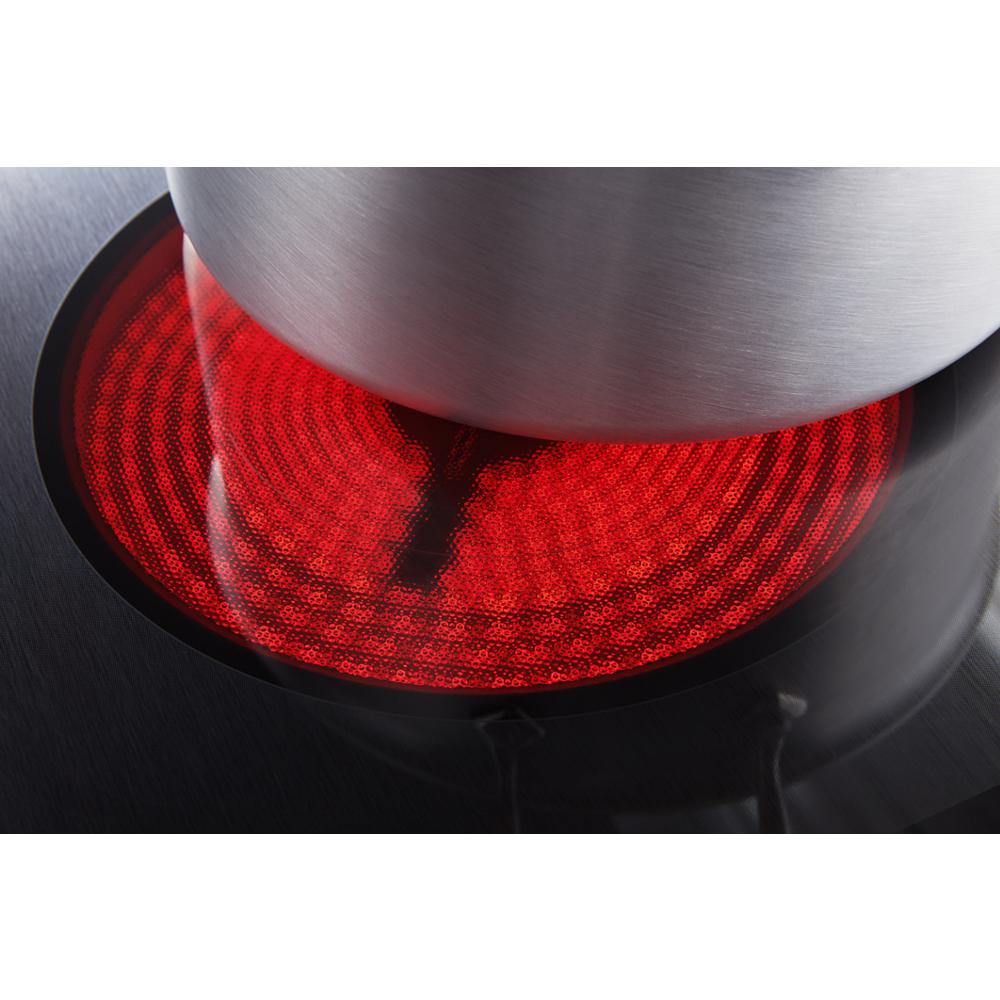

• Features a FlexHeat™ Dual Radiant Element.
• Equipped with an easy-to-wipe ceramic glass cooktop.
• Includes a warm zone element to keep food warm.

Product Highlights

This 36-inch electric cooktop offers five elements, including a dual radiant element, a warming zone, and a hot surface indicator. It is ADA compliant and wall oven compatible.

Product Information

Standard Information

• Brand: WHIRLPOOL
• Manufacturer Part Number: WCE77US6HS

Technical Specifications

• Cooktop Surface Color: Black
• Cooktop Surface Material: Glass
• Digital Display: No
• Heating Element On Indicator Light: Yes
• Hot Surface Indicator Light: Yes
• Installs Over Built-In Oven: Yes
• Knob Color: Stainless Steel
• Knob Type: Dishwasher-Safe Plastic

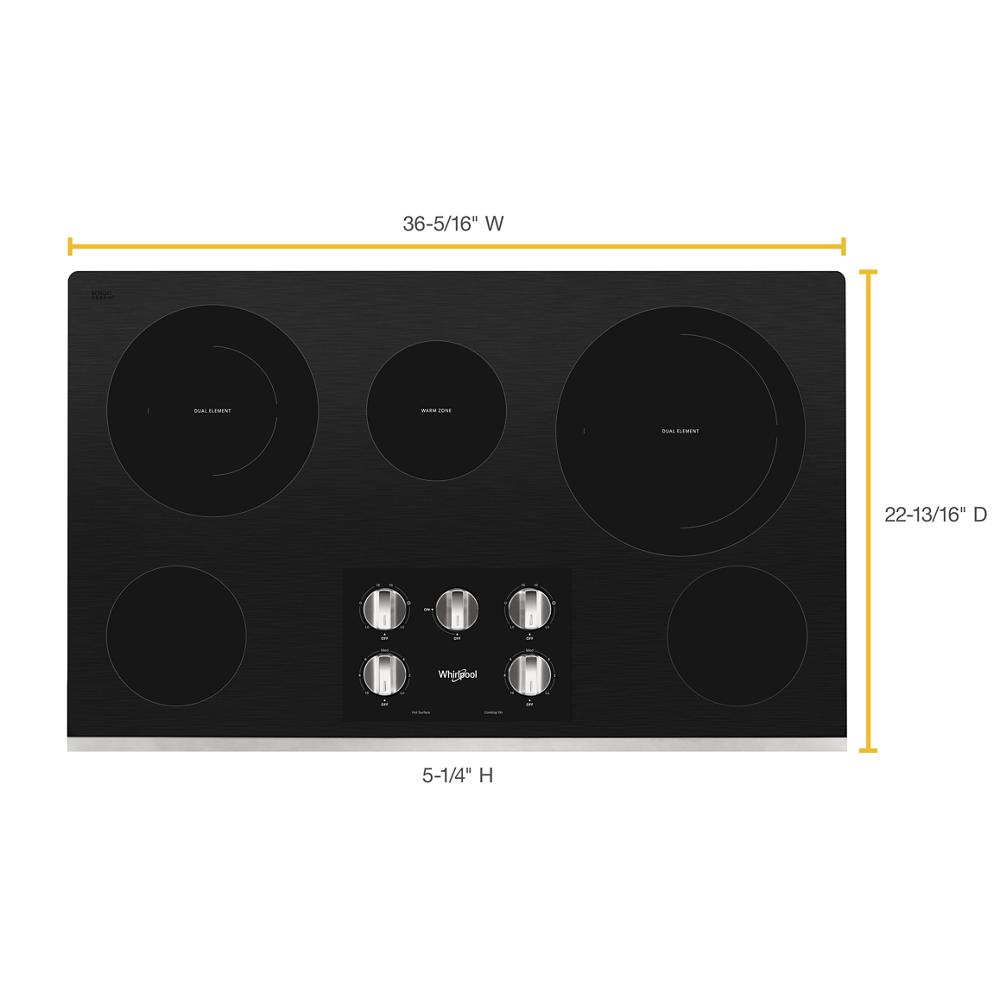

• Common Size: 36 in
• Cutout Depth: 20.375 in
• Cutout Depth Max: 20.563 in
• Cutout Depth Min: 20.375 in
• Cutout Width: 34.563 in
• Cutout Width Max: 35.563 in
• Depth: 22.875 in
• Height: 5.25 in
• Maximum Height: 5.25 in
• Width: 36.3125 in
• Input Voltage: 240
• 208V Compatible: Yes
• Amps: 40
• Frequency: 60
• Power Cord Included: No
• Fuel Type: Electric
• LP Convertible: No
• Power Outage Compatible: No
• Automatic Pan Detection: No
• Center Rear Element-Burner Power: 100W
• Center Rear Element-Burner Size: 6in.
• Center Rear Element-Burner Type: Warming
• Cooktop Element Style: Radiant
• Cooktop Type: Standard
• Left Front Element-Burner Power: 1,200W
• Left Front Element-Burner Size: 6in.
• Left Front Element-Burner Type: Standard
• Left Rear Element-Burner Power: 3000/1900W
• Left Rear Element-Burner Size: 10in./6in.
• Left Rear Element-Burner Type: Standard
• Number of Cooking Element-Burners: 5
• Power Boost: No
• Right Front Element-Burner Power: 1200W
• Right Front Element-Burner Size: 6in.
• Right Front Element-Burner Type: Standard
• Right Rear Element-Burner Power: 3000/1900W
• Right Rear Element-Burner Size: 12in./9in.
• Right Rear Element-Burner Type: Dual-Stacked Burner
• Control Location: Front

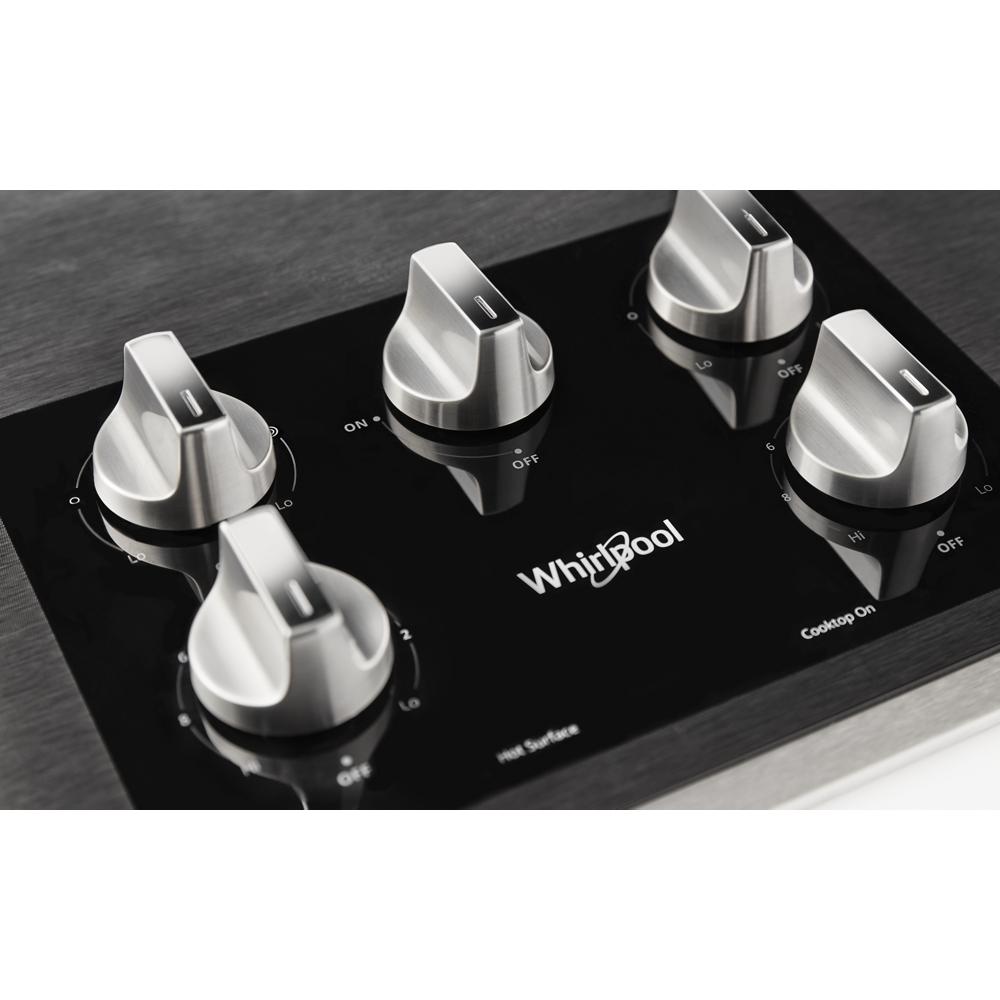

• Control Type: Knobs
• Downdraft Vent: No
• ADA Compliant: Yes
• Cooktop Features: ADA Compliant
• Combination Match with Oven: WOS11EM4, WOS31ES0, WOS31ES7, WOS51EC0, WOS51EC7, WOS51ES4, WOS52EM4, WOS72EC0, WOS72EC7, WOS92EC0, WOS92EC7, WOS97EC0, WOS97ES0, WOSA2EC0
• Certifications: ADA Compliant, ADA Height and Operation Compliant
• Infinite Heat Controls: Yes
• Energy Star® Qualified: ENERGY STAR® Certified
