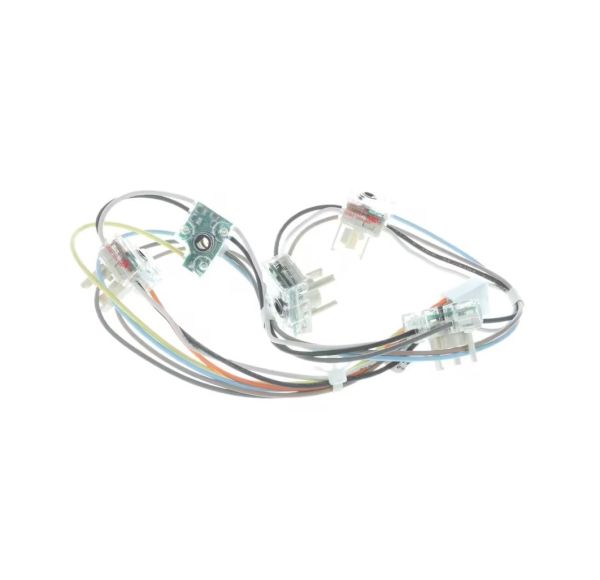

Whirlpool w11797347 Horn Switch Light 5 Burner

Product Description

The Whirlpool w11797347 is a horn switch light assembly designed for use in Whirlpool cooking appliances equipped with a 5-burner configuration rated at 30,000 BTU/h. This component serves as the control interface for the ignition or lighting switch function, integrating into the burner control system of the range. It is a direct OEM replacement part, typically sourced and installed by appliance service technicians or qualified trade professionals performing cooktop or range repairs.

This switch light assembly is intended for Whirlpool residential cooking ranges featuring a 5-burner layout. It fits into the standard burner switch position within the control panel assembly and is suited for service calls involving failed or intermittent switch lighting in this burner configuration. No specific compatible model numbers were provided in the product data; verify fitment against the appliance model and serial number before ordering.

Key Features

• OEM Whirlpool replacement horn switch light assembly
• Designed for 5-burner cooking appliances rated at 30,000 BTU/h
• Direct drop-in fit for applicable Whirlpool range control panel positions
• Supports ignition or burner lighting switch function within the control system

Compatibility

Designed as an OEM-style replacement horn switch light for Whirlpool residential 5-burner cooking ranges. Verify the appliance model number against Whirlpool parts documentation before installation to confirm fitment.

Installation Notes

Installation should be performed by a qualified appliance service technician. Disconnect power to the range at the circuit breaker and confirm the unit is fully de-energized before beginning any disassembly of the control panel. If the appliance is a gas range, shut off the gas supply at the shutoff valve before servicing any burner-adjacent components. Refer to the manufacturer service manual for panel disassembly and connector routing specific to the appliance model.

Technical Specifications

• Burner Count: 5
• Rated Capacity: 30,000 BTU/h

Standard Information

• Brand: Whirlpool
• Manufacturer Part Number: w11797347
