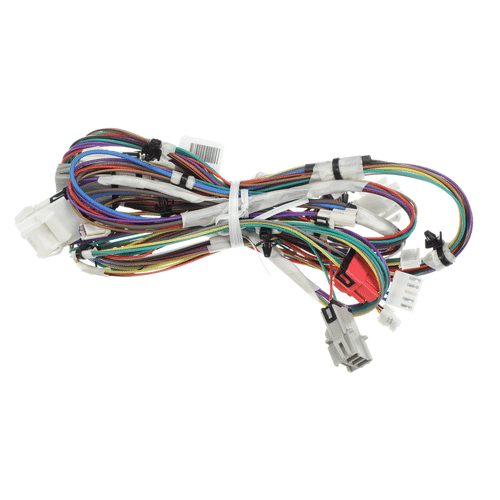

Whirlpool w11788676 Wire Harness

Product Description

The Whirlpool w11788676 is a wire harness designed to route and protect electrical connections within Whirlpool appliance systems. Wire harnesses bundle individual conductors into a single organized assembly, reducing the risk of loose connections, chafing, and electrical faults. This component is typically installed by appliance service technicians during diagnostic repairs or part replacements. It provides a factory-style wiring solution that maintains the integrity of the original electrical circuit layout within the unit.

This wire harness is suited for residential appliance repair applications. It is used when the original harness shows signs of heat damage, insulation wear, broken connectors, or failed continuity. Technicians sourcing this part should verify the specific appliance model and wiring diagram before installation to confirm correct fitment.

Key Features

• Factory-style wire harness for OEM-level electrical connection integrity
• Bundles multiple conductors into a single organized assembly
• Designed to reduce risk of loose connections and wiring faults
• Direct replacement format for simplified installation

Compatibility

Designed as an OEM-style replacement wire harness for Whirlpool residential appliances. Verify the specific model number against the appliance wiring diagram before ordering.

Installation Notes

Wire harness replacement should be performed by a qualified appliance service technician. Disconnect power to the appliance at the circuit breaker or by unplugging the unit before beginning any wiring work. Route the replacement harness along the original path and secure all connectors fully before restoring power. Refer to the appliance service manual and wiring diagram to confirm connector positions and circuit continuity.

Technical Specifications

• Component Type: Wire Harness

Standard Information

• Brand: Whirlpool
• Manufacturer Part Number: w11788676
