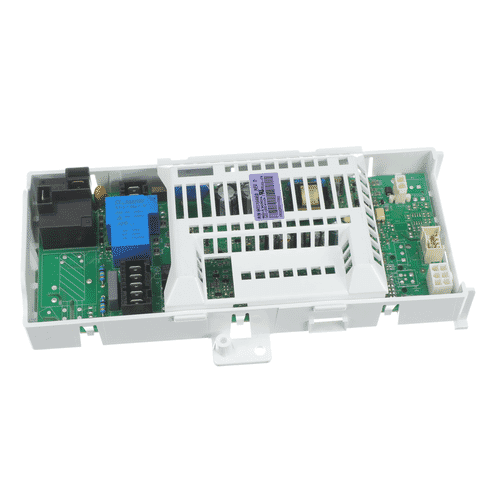

Whirlpool W11771778 Electronic Control Board

Product Description

The Whirlpool W11771778 is an electronic control board designed to manage the core operating functions of a Whirlpool appliance. This board serves as the central processing unit for the system, interpreting input signals and directing outputs to components such as motors, heating elements, valves, and displays. It is a direct OEM replacement part manufactured to Whirlpool specifications. Licensed appliance technicians and experienced service professionals are the typical installers for this type of control board.

The W11771778 control board is intended for use in Whirlpool-branded residential appliances. It fits into systems where the original electronic control has failed due to component burnout, power surge damage, or general wear. The board restores proper operational sequencing and component communication within the appliance. Refer to the appliance model and serial number tag to confirm fitment before installation.

Key Features

• OEM replacement electronic control board built to Whirlpool specifications
• Manages operational sequencing and component output signals
• Direct swap for failed or damaged original control boards
• Designed for residential appliance applications

Compatibility

Designed as an OEM-style replacement electronic control board for Whirlpool residential appliances. Verify compatibility using the full appliance model number before ordering.

Installation Notes

Installation should be performed by a qualified appliance service technician. Disconnect power to the appliance at the breaker or by unplugging the unit before beginning any disassembly. Handle the control board carefully to avoid static discharge damage to sensitive electronic components. Reassemble and restore power only after all connections have been fully seated and secured.

Technical Specifications

• Part Type: Electronic Control Board

Standard Information

• Brand: Whirlpool
• Manufacturer Part Number: W11771778
