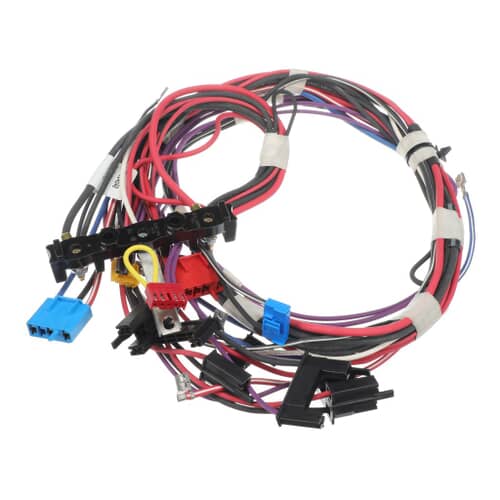

Whirlpool W11458879 Main Wire Harness Ceramic Cooktop

Product Description

The Whirlpool W11458879 is a main wire harness designed for ceramic cooktop assemblies. This harness routes low-voltage control signals and line-voltage power between the main control board and the surface heating elements. It is an OEM replacement component used by appliance technicians servicing Whirlpool-brand ceramic glass cooktops. The harness is a direct-fit part that restores factory wiring integrity when the original harness is damaged, burned, or shows signs of failed connector pins. Proper installation ensures accurate element cycling, consistent heat output, and safe operation of the cooktop surface.

This wire harness is suited for residential ceramic cooktop applications. The part code structure references a 4-surface, no-probe configuration with a specific connector layout matched to the LCX1 control platform. Appliance service technicians performing component-level cooktop repairs will find this harness applicable to the relevant Whirlpool ceramic cooktop production runs. Consult the model-specific wiring diagram before installation to confirm connector orientation and circuit routing.

Key Features

• OEM Whirlpool replacement wire harness for ceramic cooktop platforms
• Matched to LCX1 control board interface with 4-surface element configuration
• No-probe layout — does not include temperature probe circuit branch
• Factory connector ends maintain secure, vibration-resistant terminal engagement
• Restores original wiring continuity between control board and heating elements

Compatibility

Designed as an OEM-style replacement wire harness for Whirlpool ceramic glass cooktops using the LCX1 control configuration. Refer to the appliance model and serial number tag to confirm fitment before ordering.

Installation Notes

Installation should be performed by a qualified appliance service technician. Disconnect power at the circuit breaker and verify the cooktop is de-energized before handling any wiring. Route the replacement harness following the original cable path and secure all connectors fully until the locking tabs click into place. Do not force connectors or splice wiring outside of factory terminals.

Technical Specifications

• Component Type: Main Wire Harness
• Cooktop Surface Type: Ceramic Glass
• Surface Count: 4
• Probe Circuit: Not included
• Control Platform: LCX1

Standard Information

• Brand: Whirlpool
• Manufacturer Part Number: W11458879
