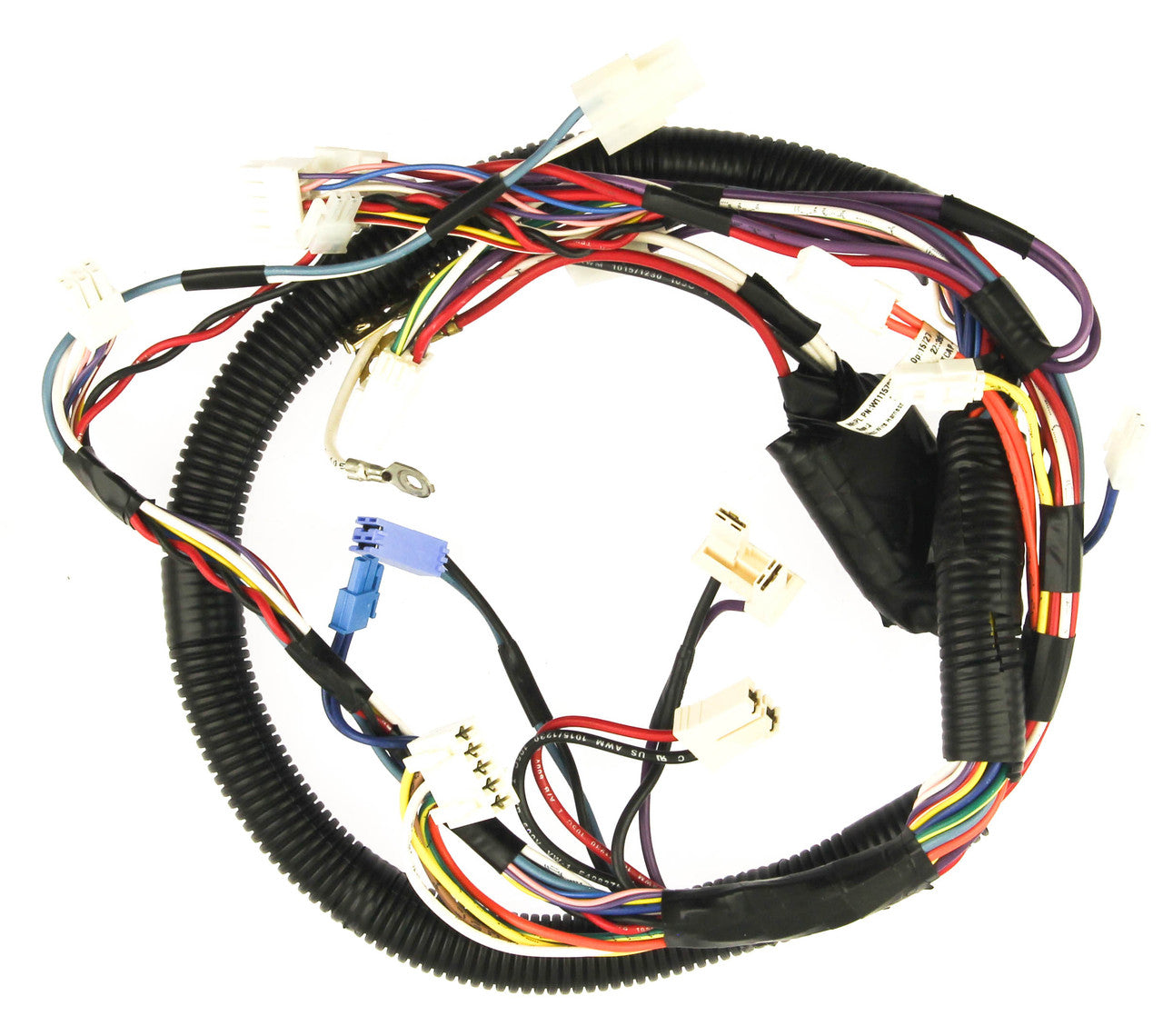

Whirlpool W11157870 Wire Harness

Product Description

The WHIRLPOOL W11157870 is a replacement wire harness designed to restore electrical connectivity within Whirlpool home appliances. A wire harness bundles and routes multiple conductors through an appliance, delivering power and control signals between components such as control boards, motors, sensors, and actuators. When a harness becomes damaged, corroded, or fails due to heat or vibration, replacing it with the correct OEM-matched part restores proper circuit continuity and reliable appliance operation. This part is sourced directly from Whirlpool and is intended for installation by qualified appliance service technicians.

This wire harness is used in Whirlpool residential home appliances where original wiring must be replaced. Typical applications include laundry, dishwasher, or refrigeration equipment where internal wiring connects the main control board to sub-assemblies. Consult the appliance model and service documentation to confirm this harness is the correct replacement for the specific unit being serviced before ordering.

Key Features

• OEM replacement wire harness for Whirlpool appliances
• Restores electrical connectivity between internal appliance components
• Matches original routing, connector type, and conductor configuration
• Direct-fit replacement eliminates the need for splicing or field modification

Compatibility

Designed as an OEM-style replacement wire harness for Whirlpool residential home appliances. Verify the appliance model number against Whirlpool parts documentation to confirm fitment before installation.

Installation Notes

Wire harness replacement should be performed by a qualified appliance service technician familiar with low-voltage wiring and appliance electrical systems. Disconnect the appliance from its power source and, where applicable, shut off water or gas supply before beginning disassembly. Document or photograph all existing connector positions before removing the original harness to ensure correct reassembly. Follow the appliance service manual for connector seating, routing paths, and any strain-relief requirements.

Technical Specifications

• Part Type: Wire Harness

Standard Information

• Brand: WHIRLPOOL
• Manufacturer Part Number: W11157870
