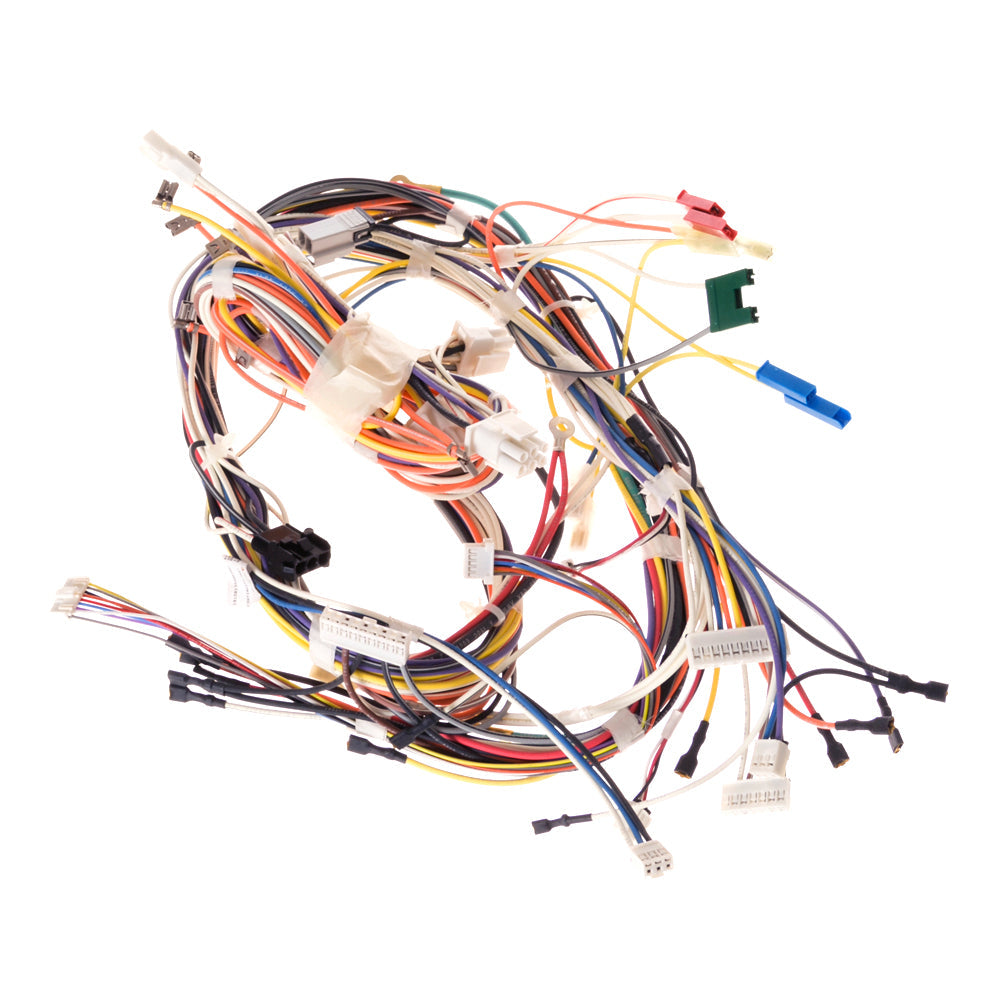

Whirlpool w11157863 Wire Harness Oem Replacement

Product Description

The Whirlpool w11157863 is a genuine OEM wire harness designed to restore proper electrical connections within Whirlpool appliances. Wire harnesses bundle and route the electrical conductors that link control boards, motors, sensors, and other components, ensuring reliable signal and power transmission throughout the unit. This is a direct manufacturer-sourced part, meaning it meets the original design specifications for fit, conductor gauge, and connector type. Installation is typically performed by a qualified appliance technician or experienced service professional during a diagnostic repair.

This wire harness is suited for residential appliance applications where the original harness has experienced damage such as burned terminals, frayed insulation, or broken connector tabs. Replacing a faulty harness restores proper communication between the control system and downstream components, resolving issues such as error codes, intermittent operation, or complete component failure. Because this is a genuine OEM part, no modification to connectors or routing is required during installation.

Key Features

• Genuine OEM part manufactured by Whirlpool to original design specifications
• Direct replacement with no connector modification required
• Bundles and routes electrical conductors for control, sensor, and motor circuits
• Designed to restore reliable signal and power transmission in affected appliances

Compatibility

Designed as an OEM-style replacement wire harness for Whirlpool appliances that originally used part number w11157863. Consult your appliance model and serial number to confirm fitment before ordering.

Installation Notes

Wire harness replacement should be performed by a qualified appliance technician. Disconnect power to the appliance at the circuit breaker or by unplugging the unit before beginning any service work. Route the new harness along the original path and secure all connectors fully until they click into place. Avoid pinching the harness against sharp edges, moving components, or heat sources during reassembly.

Technical Specifications

• Part Type: Wire Harness
• OEM Status: Genuine OEM

Standard Information

• Brand: Whirlpool
• Manufacturer Part Number: w11157863
