Whirlpool w11100763 Wire Harness Oem

Product Description

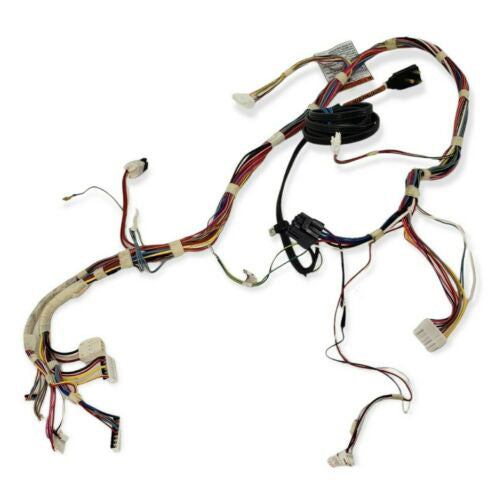

The WHIRLPOOL w11100763 is an OEM wire harness designed to restore proper electrical connections within Whirlpool appliances. A wire harness bundles and routes multiple conductors through a single organized assembly, ensuring consistent signal and power delivery between components such as control boards, motors, sensors, and switches. This part is manufactured to original equipment specifications, making it a direct replacement for a failed or damaged factory harness. HVAC and appliance technicians typically install this part during electrical fault diagnosis or component replacement service calls.

This wire harness is intended for use in Whirlpool-manufactured appliances where the original harness has become damaged, corroded, or has developed a fault causing intermittent operation or complete loss of function. It is suited for residential appliance repair scenarios where restoring the factory wiring configuration is required to return the unit to proper operation.

Key Features

• OEM part manufactured to original factory specifications
• Bundles and organizes multiple conductors into a single routed assembly
• Direct drop-in replacement for the factory-installed harness
• Designed to maintain consistent electrical continuity between components

Compatibility

Designed as an OEM-style replacement wire harness for Whirlpool appliances requiring part number w11100763.

Installation Notes

Installation should be performed by a qualified appliance or electrical technician. Disconnect power to the appliance at the wall outlet or circuit breaker before beginning any wiring work. Route the replacement harness following the original cable path and secure all connectors fully before restoring power. Refer to the appliance service manual for connector locations and routing guidance specific to the unit.

Technical Specifications

• Part Type: Wire Harness
• OEM: Yes

Standard Information

• Brand: WHIRLPOOL
• Manufacturer Part Number: w11100763
