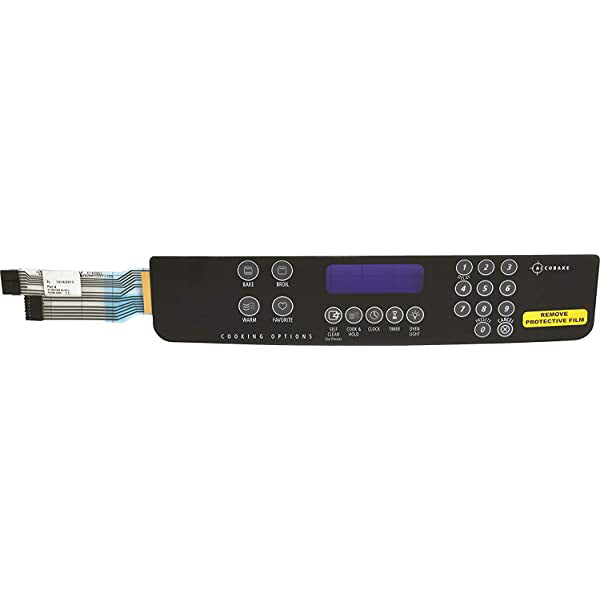

Whirlpool w10916777 Membrane Switch Oem

Product Description

The Whirlpool w10916777 is an OEM membrane switch designed as a direct replacement for select Whirlpool appliances. The membrane switch serves as the primary user-interface control surface, translating button presses into electronic signals that operate the appliance's control board. It is a factory-original component, meaning it matches the original part in fit, form, and function. Appliance technicians and qualified service professionals typically handle this replacement when the existing switch shows unresponsive buttons, partial function loss, or physical wear. Being an OEM part ensures compatibility with the intended mounting points and ribbon connector.

This membrane switch is used in residential Whirlpool appliances where a touch-pad or button-panel interface is required. It sits between the user and the main control board, relaying commands for cycle selection, temperature settings, and other operational functions. It is appropriate for service calls where the control panel is non-responsive or intermittently functional due to a failed switch layer rather than a failed control board.

Key Features

• OEM factory-original part manufactured by Whirlpool
• Direct drop-in replacement matching original fit and ribbon connector interface
• Restores full button-panel functionality when the existing switch fails
• Designed for the exact mounting and connector configuration of the original assembly

Compatibility

Designed as an OEM direct replacement membrane switch for select Whirlpool residential appliances. Refer to your appliance's model and serial number to confirm fitment before installation.

Installation Notes

Installation should be performed by a qualified appliance technician. Disconnect the appliance from its power source before beginning any disassembly. The ribbon cable connecting the membrane switch to the control board is fragile and should be handled carefully during removal and reinstallation to avoid tearing or damaging the connector. Follow the appliance manufacturer's service documentation for panel disassembly sequence.

Technical Specifications

• Part Type: Membrane Switch
• OEM Status: Factory Original

Standard Information

• Brand: Whirlpool
• Manufacturer Part Number: w10916777
