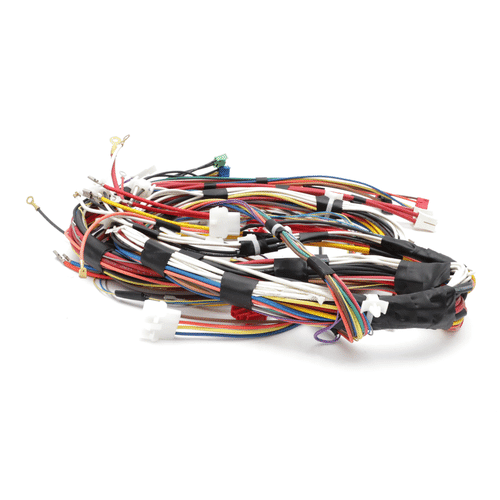

Whirlpool W10830809 Wire Harness Burner Griddle Range

Product Description

The WHIRLPOOL W10830809 is a main wire harness designed for use in freestanding dual fuel ranges. It serves as the primary electrical interconnect for the burner and griddle assemblies, routing low-voltage control signals and power between the range control board and the cooking surface components. This harness is an OEM replacement part intended for installation by a qualified appliance technician or experienced service professional. It measures 30 inches for the burner section and 36 inches for the griddle section, providing the correct routing length for the specific range configurations it supports.

This wire harness is designed for freestanding dual fuel range applications where both a gas burner section and an electric griddle section are present. It is suited for residential range service scenarios where the original harness has failed due to heat damage, wear, or electrical fault. Technicians replacing a control board, burner assembly, or griddle element in a compatible Whirlpool freestanding dual fuel range will typically encounter this harness as a necessary replacement component.

Key Features

• Main wire harness for freestanding dual fuel range burner and griddle assemblies
• Burner section length: 30 inches
• Griddle section length: 36 inches
• OEM replacement part for precise fit and function
• Supports electrical interconnect between control board and cooking surface components

Compatibility

Designed as an OEM-style replacement wire harness for Whirlpool freestanding dual fuel ranges equipped with burner and griddle configurations. Refer to your range model documentation to confirm fitment before installation.

Installation Notes

Installation should be performed by a qualified appliance technician. Disconnect power to the range at the wall outlet or circuit breaker before beginning any service work. Ensure all harness connectors are fully seated and locked before restoring power. Refer to the range service manual for proper harness routing to avoid contact with hot surfaces or pinch points.

Technical Specifications

• Burner Harness Length: 30 inches
• Griddle Harness Length: 36 inches
• Application: Freestanding Dual Fuel Range
• Component: Main Wire Harness

Standard Information

• Brand: WHIRLPOOL
• Manufacturer Part Number: W10830809
