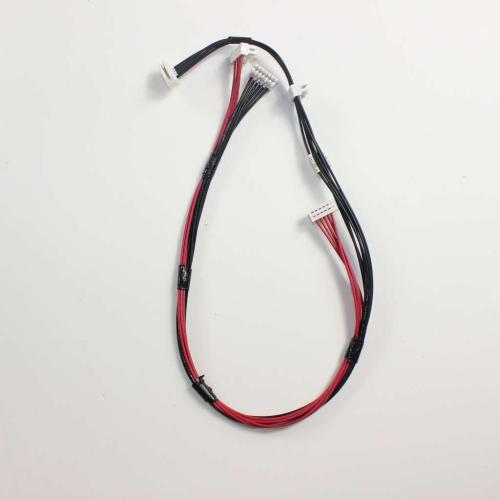

Whirlpool W10694671 Wire Harness Washer Dryer

Product Description

The Whirlpool W10694671 is a wire harness designed as an OEM-style replacement component for Whirlpool residential laundry equipment. Wire harnesses route and protect electrical connections between control boards, motors, sensors, and other components within a washer or dryer assembly. When an original harness fails due to heat damage, chafing, or connector wear, replacing it with the correct OEM part restores proper electrical continuity and safe operation. This harness is identified in Whirlpool parts documentation under the HARNESS_UPR designation, indicating an upper harness application within the unit.

This wire harness is suited for residential Whirlpool washers or dryers that use the VMW platform or ESTAR-compliant configurations. It is a direct replacement for units that have experienced wiring faults, intermittent errors, or visible harness damage. Appliance technicians and service professionals working on Whirlpool laundry equipment will use this part during control system repairs or when diagnostic codes point to wiring continuity failures.

Key Features

• OEM Whirlpool replacement wire harness for laundry equipment
• Upper harness configuration as indicated by HARNESS_UPR designation
• Compatible with VMW platform and ESTAR-designated Whirlpool units
• Restores electrical continuity between washer or dryer internal components
• Direct-fit replacement requiring no modification to factory connectors

Compatibility

Designed as an OEM-style replacement wire harness for Whirlpool residential washers and dryers. Supplier documentation references VMW platform and ESTAR configurations. Verify fitment against your specific model number before ordering.

Installation Notes

Installation should be performed by a qualified appliance technician. Disconnect power to the unit at the wall outlet or circuit breaker before accessing internal wiring. Photograph existing harness routing before removal to ensure correct reinstallation. Handle connectors carefully to avoid pin damage, and confirm all connectors are fully seated before restoring power.

Technical Specifications

• Part Type: Wire Harness
• Position: Upper
• Application: Washer or Dryer
• Platform: VMW, ESTAR

Standard Information

• Brand: Whirlpool
• Manufacturer Part Number: W10694671
