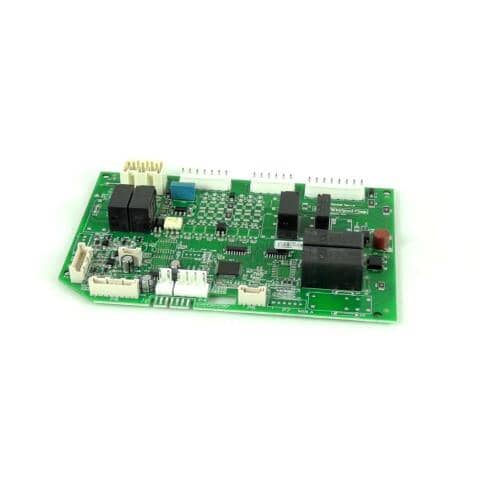

Whirlpool w10687089 Electronic Control Board

Product Description

The WHIRLPOOL w10687089 is an electronic control board designed to manage and coordinate the core functions of a home appliance. The control board serves as the central processing unit for the unit it governs, interpreting input signals and directing component operation. Licensed appliance repair technicians and experienced service professionals install this type of board when the original fails due to component burnout, power surge damage, or general electronic failure. It is a direct OEM-style replacement intended to restore normal appliance function without modification.

This control board is suited for residential appliance applications where the original board has failed and requires replacement. It fits into the existing wiring harness and mounting location, making it a straightforward swap for a qualified technician. Verify the part number against the appliance model tag before ordering, as control boards are model-specific and may not interchange across different appliance configurations.

Key Features

• OEM-style electronic control board for residential appliance use
• Direct replacement designed to restore original appliance function
• Compatible with existing wiring harness connections
• Replaces a failed or damaged original control board without system modification

Compatibility

Designed as an OEM-style replacement electronic control board for residential Whirlpool appliances. Confirm fitment by cross-referencing the part number with the appliance model and serial number tag before installation.

Installation Notes

Installation should be performed by a qualified appliance repair technician. Disconnect power to the appliance at the breaker or by unplugging the unit before beginning any disassembly. Discharge any capacitors if present before handling the board, and follow standard electrostatic discharge precautions when handling electronic components. Reconnect all wiring harness connectors fully and verify secure mounting before restoring power.

Technical Specifications

• Part Type: Electronic Control Board
• Application: Residential Appliance

Standard Information

• Brand: WHIRLPOOL
• Manufacturer Part Number: w10687089
