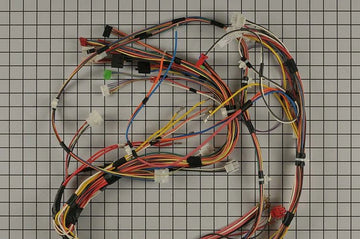

Whirlpool w10508247 Wire Harness Oem

Product Description

The Whirlpool w10508247 is an OEM wire harness designed for use in Whirlpool appliances. A wire harness bundles and routes electrical conductors between components, ensuring consistent signal and power delivery throughout the unit. This part is manufactured to original equipment specifications, maintaining the same connector types, wire gauges, and routing geometry as the factory-installed harness. Installation is typically performed by a qualified appliance technician or experienced service professional during electrical fault diagnosis or component replacement.

This wire harness is suited for residential appliance applications where the original harness has failed, become damaged, or developed intermittent connection issues. It restores proper electrical continuity between internal components, supporting reliable operation of the appliance's control and function circuits.

Key Features

• OEM part manufactured by Whirlpool to original factory specifications
• Maintains original connector types and wire routing geometry
• Direct replacement for a failed or damaged factory harness
• Supports consistent electrical continuity across connected components

Compatibility

Designed as an OEM-style replacement wire harness for Whirlpool appliances. Refer to your appliance model number and the manufacturer's parts lookup to confirm fitment before installation.

Installation Notes

Disconnect power to the appliance at the breaker or by unplugging the unit before beginning any service work. A qualified appliance technician should handle wire harness replacement to ensure connectors are fully seated and routed correctly without pinching or abrasion. Inspect mounting clips and connector locks during installation to confirm secure attachment before restoring power.

Technical Specifications

• Part Type: Wire Harness
• OEM: Yes

Standard Information

• Brand: Whirlpool
• Manufacturer Part Number: w10508247
