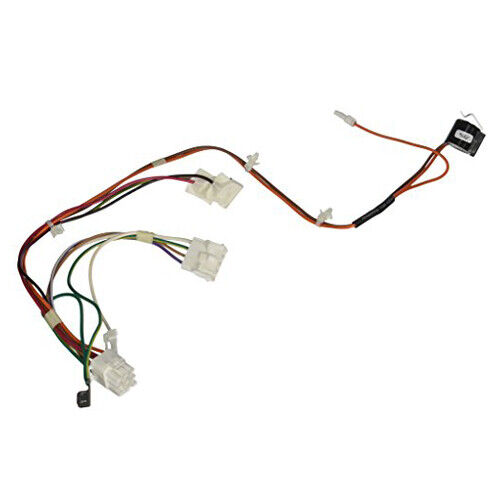

Whirlpool w10290501 Wire Harness Oem

Product Description

The WHIRLPOOL w10290501 is an OEM wire harness designed for use in Whirlpool appliances. A wire harness bundles and routes electrical conductors between components, ensuring reliable signal and power distribution throughout the unit. This part is manufactured to original equipment specifications, making it a direct-fit replacement for the factory harness. Installation is typically performed by an appliance technician or qualified electrician familiar with low-voltage wiring and residential appliance service.

This wire harness is suited for residential appliance applications where the original harness has become damaged, corroded, or failed due to wear. It restores proper electrical continuity between control boards, motors, sensors, and other internal components. Because it is an OEM part, it matches the original connector types, wire gauges, and routing path of the factory-installed harness.

Key Features

• OEM part manufactured to original equipment specifications
• Restores electrical continuity between internal appliance components
• Matches original connector types and wire routing
• Direct-fit replacement requiring no modification

Compatibility

Designed as an OEM-style replacement wire harness for Whirlpool residential appliances. Consult the appliance model and parts documentation to confirm fitment before installation.

Installation Notes

Disconnect power to the appliance at the breaker or by unplugging the unit before beginning any wiring work. A qualified appliance technician or electrician should perform this repair. Take note of the original harness routing and connector positions before removal to ensure correct reinstallation. Follow all applicable NEC guidelines for appliance wiring service.

Technical Specifications

• Part Type: Wire Harness
• OEM: Yes

Standard Information

• Brand: WHIRLPOOL
• Manufacturer Part Number: w10290501
