Whirlpool W10225693 Wire Harness Oven Range

Product Description

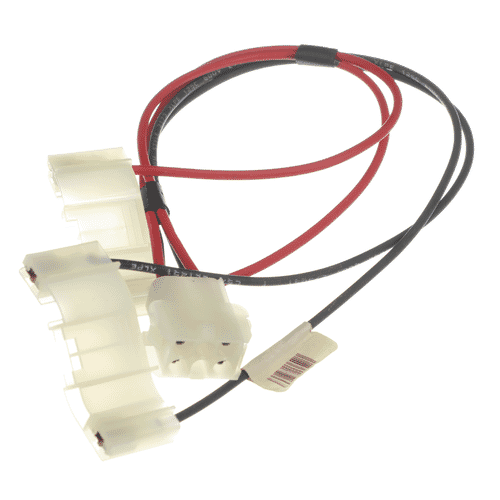

The WHIRLPOOL W10225693 is a replacement wire harness designed for the right infinite switch circuit in Whirlpool ovens and ranges. This harness carries control signals between the infinite switch and the surface burner element, maintaining reliable electrical continuity in the cooktop control system. Proper harness condition is critical to consistent burner response and safe operation. Installation is typically performed by appliance technicians or qualified electricians familiar with residential range service procedures.

This wire harness is suited for residential freestanding and slide-in range applications where the right-side infinite switch assembly requires harness replacement due to heat damage, insulation breakdown, or connector failure. It is a direct OEM-style replacement for Whirlpool oven and range units. Consult the unit service manual and wiring diagram to confirm fitment before installation.

Key Features

• Right infinite switch wire harness for direct OEM-style replacement
• Designed to restore proper electrical connection between switch and surface element
• Intended for use in Whirlpool oven and range cooktop control circuits
• Replaces harness assemblies damaged by heat exposure or connector wear

Compatibility

Designed as an OEM-style replacement wire harness for Whirlpool oven and range models requiring service to the right infinite switch circuit. Confirm compatibility using the appliance model number and service documentation before ordering.

Installation Notes

Disconnect power to the range at the circuit breaker or by unplugging the unit before beginning any harness service. Wire harness replacement on electric ranges is typically performed by a licensed appliance technician or electrician in accordance with NEC guidelines. Route and secure the replacement harness away from high-heat surfaces and sharp edges. Do not restore power until all connectors are fully seated and no bare conductors are exposed.

Technical Specifications

• Application: Right Infinite Switch Wire Harness
• Product Type: Wire Harness
• Appliance Category: Oven and Range

Standard Information

• Brand: WHIRLPOOL
• Manufacturer Part Number: W10225693
