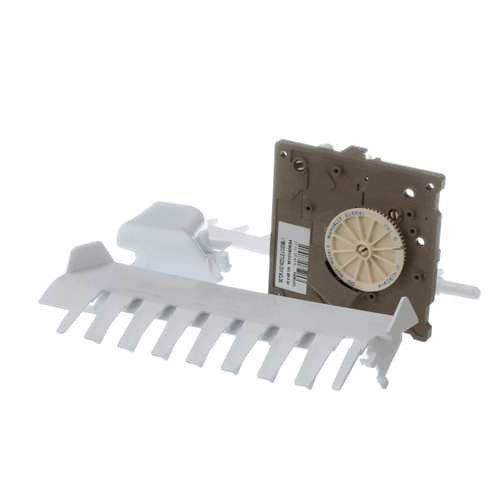

Whirlpool w10190934 Refrigerator Ice Maker Module

Product Description

The WHIRLPOOL w10190934 is a replacement ice maker module designed for use in Whirlpool refrigerators. This module controls the ice-making cycle, including harvest timing, tray rotation, and shutoff based on ice bin level. It mounts directly to the ice maker assembly and integrates with the refrigerator's electrical system. Licensed appliance technicians and qualified service professionals typically handle this replacement as part of ice maker restoration or full assembly service.

This module is suited for residential refrigerator applications where the existing ice maker control module has failed or is producing incorrect cycle behavior such as continuous harvest, no harvest, or failure to shut off. The raw title references part number 8201515, which may indicate a superseded or related part number. Install this module when diagnosing ice maker control failures in Whirlpool-brand refrigerators.

Key Features

• Controls harvest cycle timing and ice bin shutoff logic
• Direct OEM-style replacement for the ice maker control module
• Integrates with existing ice maker assembly wiring harness
• Designed for residential refrigerator ice maker systems

Compatibility

Designed as an OEM-style replacement ice maker module for Whirlpool residential refrigerators. The supplier title references legacy part number 8201515 as a possible superseded identifier.

Installation Notes

Installation should be performed by a qualified appliance technician. Disconnect power to the refrigerator at the outlet or breaker before beginning any disassembly. Remove the ice maker assembly to access and swap the module, taking care not to damage the wiring harness connector during removal. Reassemble and restore power before testing the ice maker cycle.

Technical Specifications

• Manufacturer Part Number: w10190934
• Related Part Number: 8201515

Standard Information

• Brand: WHIRLPOOL
• Manufacturer Part Number: w10190934
